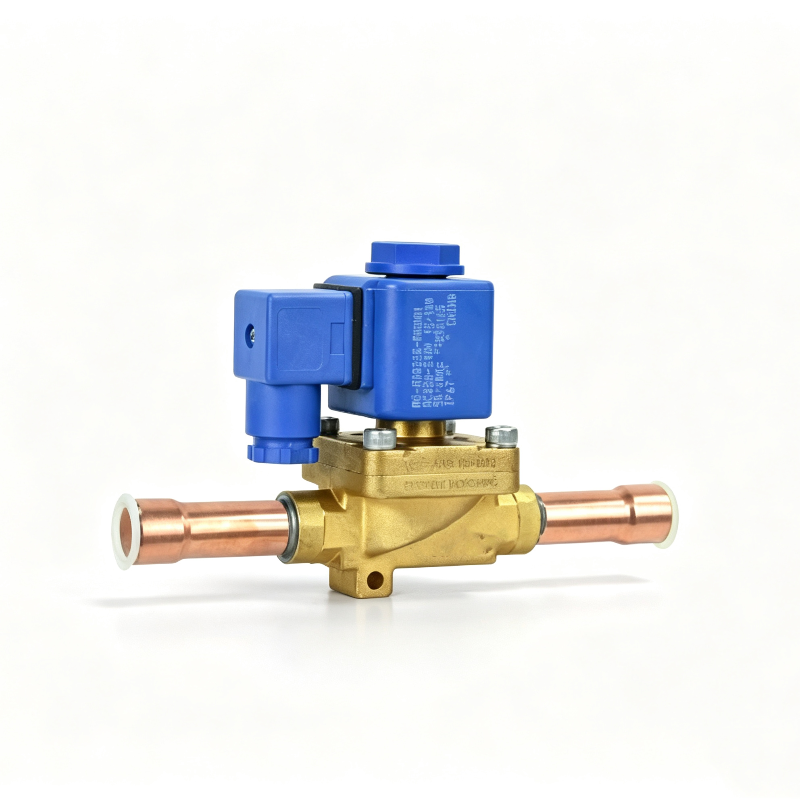

MDF series complete assembled solenoid valve for HVAC refrigeration

Large size MDF series assembled refrigeration solenoid valve

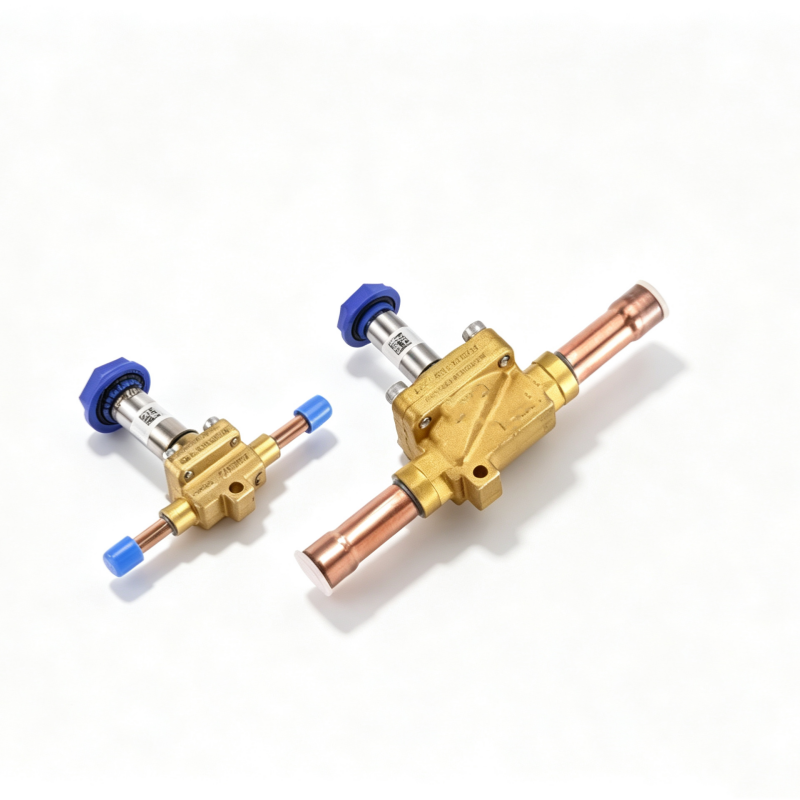

MDF series different size brass solenoid valve body comparison

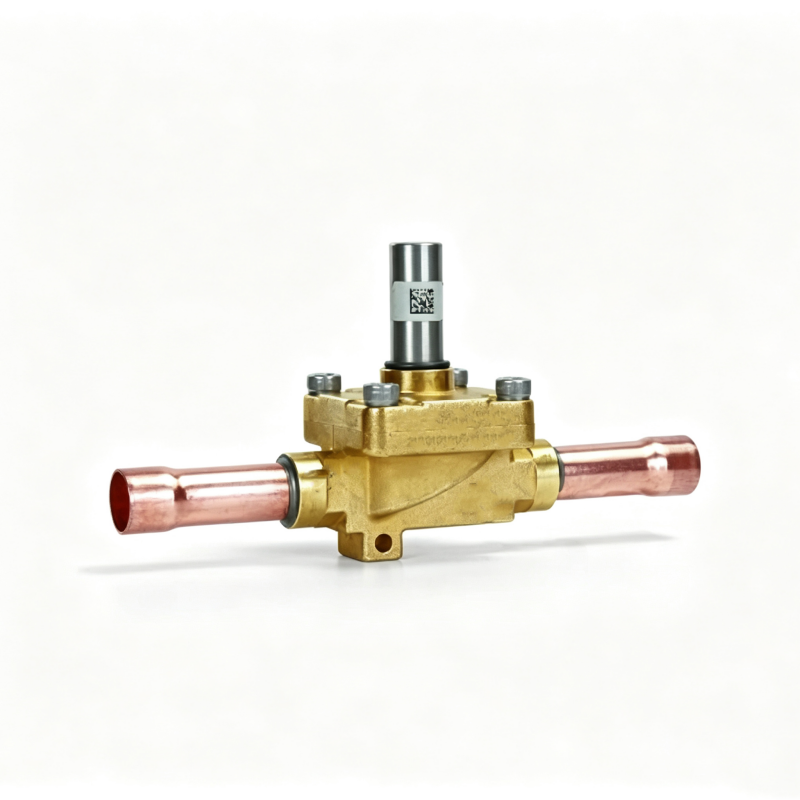

MDF series brass solenoid valve body main product photo

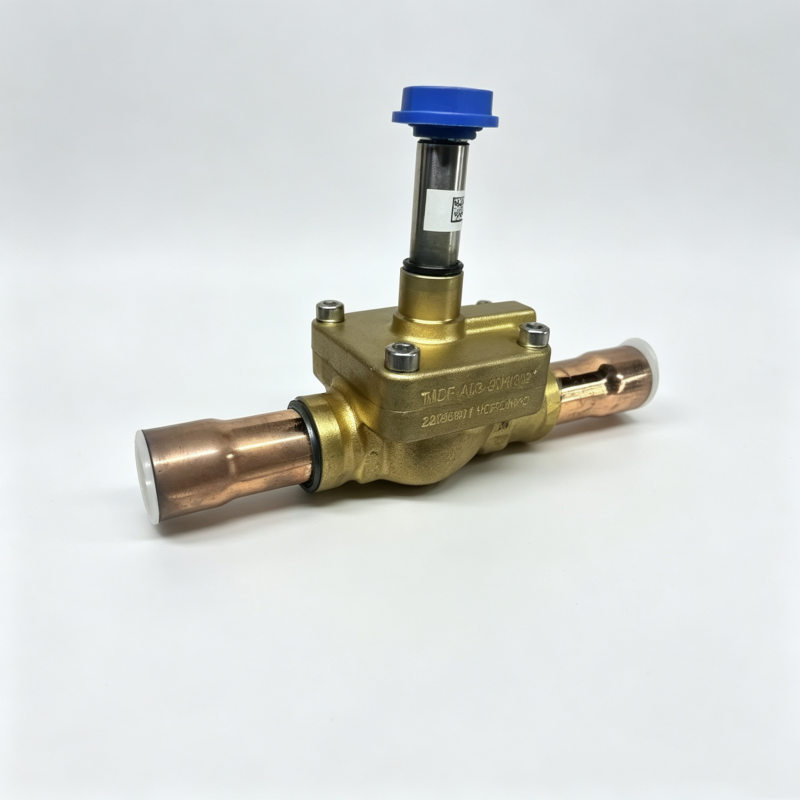

MDF series brass solenoid valve body close-up view

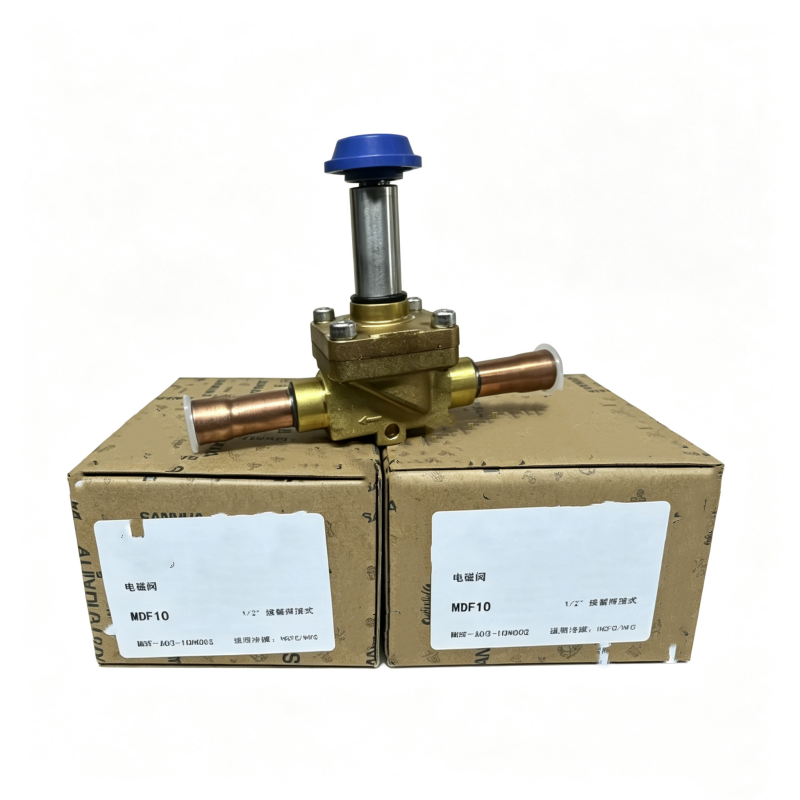

MDF series solenoid valve body with original packaging boxes

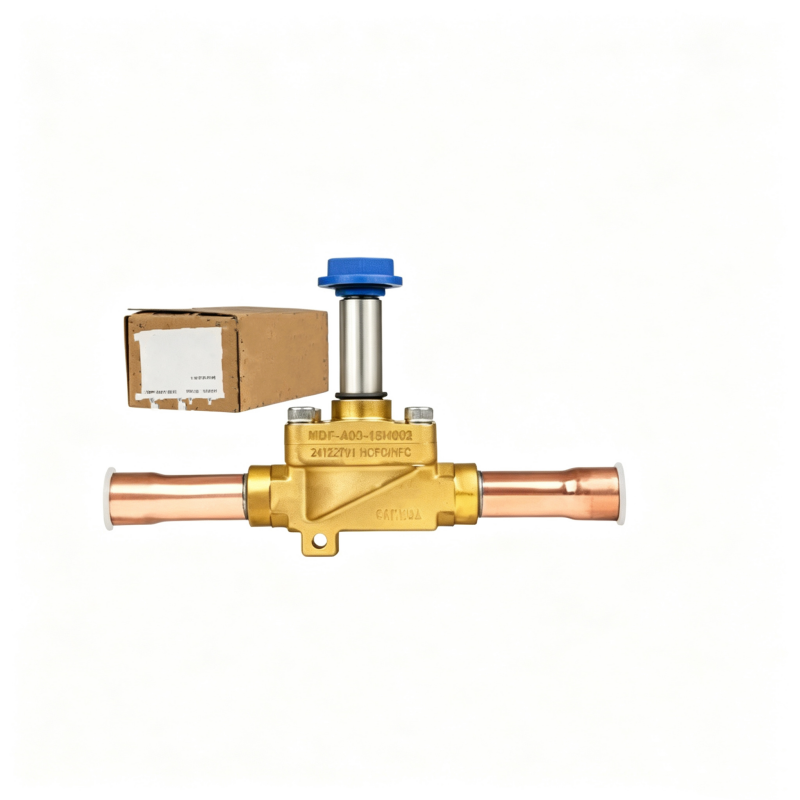

MDF series brass solenoid valve body for refrigeration HVAC

Fast Shipping

1-Year Warranty

100% Genuine Parts

Expansion Valve Drivers, Expansion Valves, Other Refrideration Accessories, Refrigeration Spare Parts

MDF‑A03‑10H002 Diaphragm pilot refrigeration solenoid valve Including coils

Name: MDF‑A03‑10H002 Diaphragm pilot refrigeration solenoid valve Including coils
SKU: MDF-A03-10H002
Availability: InStock

Original price was: $50.00.Current price is: $25.00.

MDF‑A03‑10H002 diaphragm pilot solenoid valve,1/2″ ODF solder, compact small‑flow for household HVAC refrigerant on‑off control.

Availability: In stock

SKU: MDF-A03-10H002 Categories: Expansion Valve Drivers, Expansion Valves, Other Refrideration Accessories, Refrigeration Spare Parts Tags: 1/2 inch ODF solder valve, Compact refrigerant solenoid valve, Heat pump liquid line control valve, Light‑duty refrigeration valve, MDF series pilot solenoid valve, MDF-A03-10H002, Small capacity HVAC cut‑off valve

Overview

MDF‑A03‑10H002 is a mini‑size diaphragm pilot‑operated normally‑closed solenoid valve, specially developed for household HVAC and light‑duty small refrigeration equipment. Featuring 1/2‑inch ODF solder connection and Kv value 1.9 m³/h, this compact‑sized valve occupies minimal installation space, perfectly matching small‑tonnage heat pump and refrigeration unit layout constraints. Optimized diaphragm structure realizes stable opening under low differential pressure, delivers excellent tight‑shut‑off performance during long‑time system standby. The lightweight forged brass body has good vibration resistance, adapts to frequent start‑stop cycles of household cooling appliances. Compatible with HCFC, HFC and low‑GWP new refrigerants, it provides reliable on‑off protection for liquid refrigerant circuits of small‑capacity HVAC&R devices。

Key Features

Miniature compact overall structure, greatly saves internal cabinet mounting space for small‑tonnage cooling units
Optimized small‑size reinforced diaphragm, stable actuation under low working differential pressure for household equipment
Kv 1.9 m³/h flow characteristic, precisely satisfies refrigerant circulation demand of household and light‑duty refrigeration systems
Excellent static sealing performance, low internal leakage even under long‑term high‑pressure standby status
Light‑weight forged brass valve body, anti‑vibration property, adapts to frequent start‑stop working cycles of household appliances
Good tolerance for minor system impurities, reduces stuck‑valve risk for small‑bore flow channel
Broad refrigerant compatibility, supports traditional HCFC/HFC and modern low‑GWP refrigerants for HVAC&R
PED and LVD compliant, satisfies global export certification requirements for household and light‑commercial cooling devices

MDF-A03-10H002 technical specifications table

Item	Specification
Model	MDF-A03-10H002
Compatibility	MQ series solenoid coil
Working Voltage	Depends on matched coil
Operating Temperature	-30℃ ~ +105℃
Mounting	ODF solder connection (1/2 inch /12.7mm)
Product Length	127 mm
Product Width	42 mm
Product Height	53 mm
Product Weight	0.21 kg
Country of Origin	China
HS code	8481804090
Shipping Length	150 mm
Shipping Width	65 mm
Shipping Height	75 mm

Same Series Display Models

MDF‑A03‑1H002

MDF‑A03‑2H002

MDF‑A03‑3H002

MDF‑A03‑4H002

MDF‑A03‑5H002

MDF‑A03‑6H002

MDF‑A03‑10H004

MDF‑A03‑10H006

MDF‑A03‑15H002

MDF‑A03‑15H004

MDF‑A03‑15H006

MDF‑A03‑20H002

MDF‑A03‑20H004

MDF‑A03‑22H004

MDF‑A03‑22H008

Matching Series Controllers

MDF‑COIL‑AC220

MDF‑COIL‑AC24

MQ‑A11

MQ‑A02

Supporting System Accessories

MDF‑GKT‑A03

MDF‑SEAL‑A03

MDF‑08030

MDF‑08012

MDF‑08008

MDF‑08006

Application Scope

Model MDF‑A03‑10H002 is mainly installed on liquid refrigerant pipelines of household air‑source heat pumps, small split cooling units, miniature condensing units, commercial small showcase cabinets and mobile refrigeration equipment, compatible with R22, R134a, R404A, R410A, R448A, R449A and other refrigerants, it is highly suitable for compact small‑capacity systems where internal cabinet installation space is very limited and only moderate refrigerant circulation capacity is required。

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
