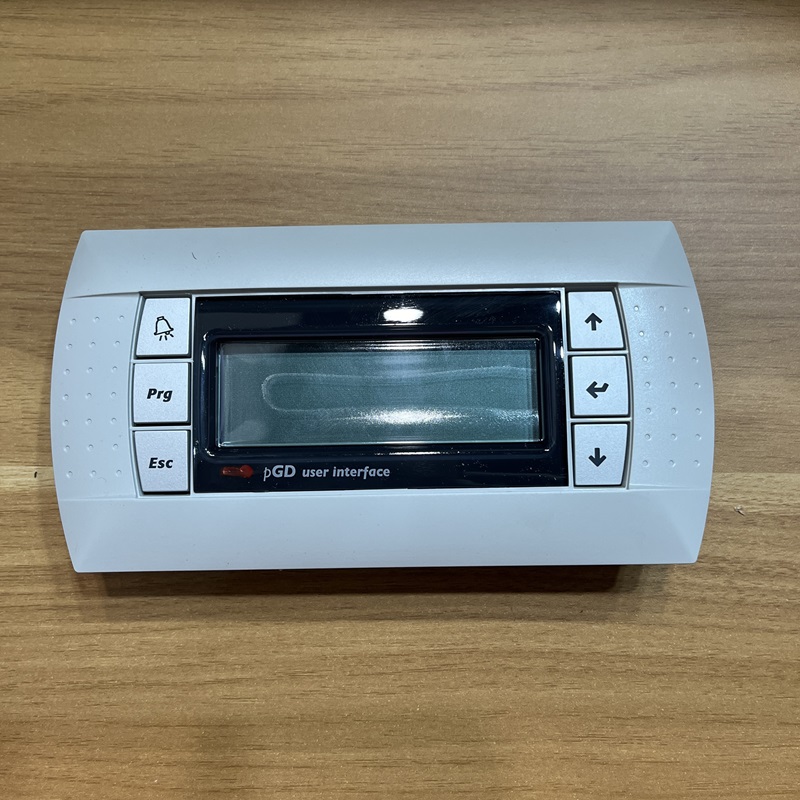

Name: PGD0000F00 HVACDisplay Panel Refrigeration
SKU: PGD0000F00
Availability: InStock

Overview

PGD0000F00 is a professional industrial graphic display panel, widely used in commercial refrigeration, cold storage equipment, constant temperature air conditioning and HVAC integrated control systems.

This display module is designed for human-machine interaction, supporting real-time temperature data viewing, system parameter modification, equipment operation mode switching, and fault code query. It is a universal replacement part for aging, cracked, non-lit or faulty operation screens on various refrigeration control units.

With stable communication compatibility, high-definition backlight display, strong anti-interference performance and compact panel installation structure, it is the preferred maintenance accessory for refrigeration unit repair and system renewal.

Key Features

Industrial FSTN backlight graphic display, clear reading in various environments
Stable communication adaptation with multi-series refrigeration main controllers
Front panel mounting design, simple wiring and fast on-site replacement
Suitable for cold storage, display cabinet, condensing unit and HVAC equipment
Support fault alarm prompt, system parameter lock and data real-time synchronization
Durable industrial grade design, long service life for continuous operation

PGD0000F00 HVAC display panel technical specifications table

Parameter	Specification
Model	PGD0000F00
Compatibility	PGD Series Controllers
Working Voltage	24V DC
Operating Temperature	-20°C ~ 60°C
pGD Series	pGD
pGD Display Backlighting Color	Green
Mounting	Built-In or Panel
Screen Resolution	120 x 32 Pixels
Buzzer	No
Logo	Yes
Product Length	6.1 inches (15.494 cm)
Product Width	3.2 inches (8.128 cm)
Product Height	1.2 inches (3.048 cm)
Product Weight	0.385 lbs (0.175 kg)
Country of Origin	China
Schedule B Number	9032.90.6180
Shipping Length	7.1 inches (18.034 cm)
Shipping Width	5.55 inches (14.097 cm)
Shipping Height	2.5 inches (6.350 cm)

Product Specifications

Model Number: PGD0000F00
Product Type: Industrial Control Display / Operation Panel
Display Type: FSTN Graphic Screen
Application: Commercial Refrigeration, Cold Room, HVAC, Air Conditioning Unit
Core Function: Temperature Monitoring, Parameter Setting, Fault Code Display
Installation Type: Embedded Panel Mount

3. Related & Matching Model List

Same PGD Series Display Models

PGD0000F01

PGD0001F00

PGD0000F02

PGD0000F03

Matching IR33 Series Controllers

IR33S0EHA01

IR33S0EHAA

IR33Y0EHA0

IR33F0EHA0

IR33F0EHAA

IR33F0EFA0

IR33F0EHE0

IR33F0EHEM

IR33S0EGE0

Matching DN33 Series DIN Rail Controllers

DN33S00A00

DN33H00N00

DN33S0LR00

DN33C0LR00

DN33C0LC00

DN33C0LB00

DN33S0EN00

DN33S0EA00

DN33F0EN00

DN33F0EC00

DN33F0EA00

DN33F0EL00

Supporting System Accessories

NTC temperature sensor

Door contact switch input module

Compressor relay control board

Defrost control module

Fan speed control assembly

Modbus communication accessory

Application Scope

This display panel is commonly matched with 1~5 relay refrigeration control mainboards, covering 2Hp compressor control, 8A/16A defrost output, fan operation control and multi-channel signal input.

Widely applicable in supermarket display cabinets, cold storage rooms, beverage refrigeration equipment, industrial air conditioners and supporting HVAC control systems.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
