XR06CX-5N0C1 Digital Temperature Controller

Name: XR06CX-5N0C1 Digital Temperature Controller
SKU: XR06CX-5N0C1
Availability: InStock

Overview

The XR06CX-5N0C1 Digital Temperature Controller is a microprocessor-based solution engineered for medium and low-temperature ventilated refrigeration systems. This compact, panel-mountable unit integrates precise temperature regulation, defrost management, and fan control—making it ideal for commercial refrigeration, cold rooms, display cabinets, and walk-in freezers. Built for reliability and ease of use, the XR06CX-5N0C1 delivers consistent performance in harsh environments, ensuring optimal control for perishables, pharmaceuticals, and other temperature-sensitive products.

Key Advantages at a Glance

✅ 3 Independent Relay Outputs: Dedicated control for compressor (20A), fan (5A), and defrost (8A) – eliminates the need for additional contactors or timers –

✅ Dual NTC Probe Inputs: One for main temperature control, one for evaporator defrost termination – ensures efficient defrost cycles and accurate temperature monitoring –

✅ Flexible Defrost Modes: Supports electric heater or hot gas (reverse cycle) defrost – adaptable to different refrigeration system configurations –

✅ IP54 Protection Rating: Front panel dust and water resistance – suitable for use in kitchens, warehouses, and other harsh environments –

✅ HOTKEY Programming: One-click parameter setup and copy function – saves time when configuring multiple controllers –

✅ Wide Voltage Compatibility: 230V AC ±10%, 50/60Hz – works with global power supplies, no need for voltage adapters

XR06CX-5N0C1 Digital Temperature Controller

Technical Specifications

Parameter	Details
Model	XR06CX-5N0C1
Controller Type	Digital refrigeration thermostat (microprocessor-based)
Power Supply	230V AC ±10%, 50/60Hz
Temperature Range	Measurement: -40°C to +110°C; Operating: 0°C to 60°C
Relay Outputs	3 total: Compressor (20A), Fan (5A), Defrost (8A)
Probe Inputs	2 × NTC (10kΩ at 25°C)
Display	2.5-digit LED, clear digital readout for real-time temperature and setpoint
Protection Class	IP54 (front panel)
Dimensions	71 × 29 × 60 mm (H×W×D)
Mounting	Panel-mount (cutout: 74 × 32 mm)
Material	Self-extinguishing ABS
Certifications	CE, RoHS

Core Features & Functions

1. Precision Temperature Regulation

Maintains temperature setpoint with adjustable differential, preventing compressor short cycling and reducing energy consumption. Equipped with probe fault protection: if the control probe fails, the controller automatically switches to timed compressor operation to avoid system failure and product spoilage. The high-precision NTC probes ensure accurate temperature measurement within ±0.1°C, critical for sensitive applications like pharmaceutical storage.

2. Flexible Defrost Management

Offers two defrost modes to suit different refrigeration systems: electric heater (EL) for standard setups and hot gas (IN, reverse cycle) for more efficient defrosting. Configure defrost interval (id), maximum defrost duration (Md), and drip time (dt) to match your system’s needs. The evaporator probe terminates defrost based on temperature (not just time), ensuring defrost cycles are only as long as necessary—saving energy and extending system life.

3. Smart Fan Control

Four configurable fan modes to optimize air circulation and energy efficiency:

cn: Fan runs with the compressor, stops during defrost (ideal for standard refrigeration units)
on: Fan runs continuously (except during defrost) for consistent temperature distribution
cy: Fan cycles with the compressor, runs during defrost (for high-humidity environments)
oy: Fan runs always (including defrost) for maximum air circulation

A fan delay (Fd) after defrost allows for drip-off, preventing water buildup and ice formation on evaporator coils.

4. User-Friendly Operation

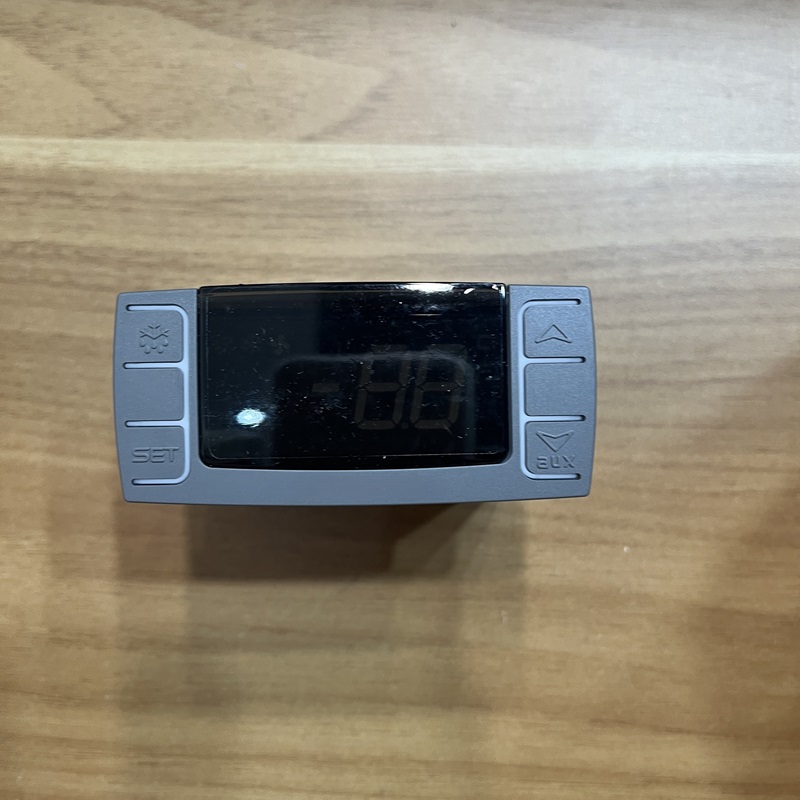

Designed for easy setup and operation, even for non-technical users. The HOTKEY function allows pre-configuration of parameters and one-click copying to multiple controllers, saving time during installation. The bright LED display shows real-time temperature, setpoint, and fault codes for quick troubleshooting. Intuitive button controls (SET, UP/DOWN, DEF) make adjusting settings simple, while password protection locks configurations to prevent unauthorized changes.

5. Reliability & Durability

Built to withstand the demands of commercial and industrial environments. The IP54 front panel resists dust, moisture, and spills, making it suitable for use in kitchens, warehouses, and food processing facilities. High-capacity relays handle compressor inrush currents up to 20A, ensuring long-term reliability. The solid-state design with no moving parts reduces maintenance needs and extends service life, minimizing downtime and replacement costs.

Applications

The XR06CX-5N0C1 is a versatile temperature controller, ideal for a wide range of commercial and industrial refrigeration applications:

✅ Cold Rooms & Walk-In Freezers (medium and low temperature)
✅ Commercial Refrigerators & Display Cabinets (supermarkets, convenience stores, restaurants)
✅ Beverage Coolers & Ice Makers
✅ Pharmaceutical Refrigerators (precision temperature control for medications and vaccines)
✅ Industrial Chillers & Process Cooling Systems
✅ Food Storage Units & Catering Equipment

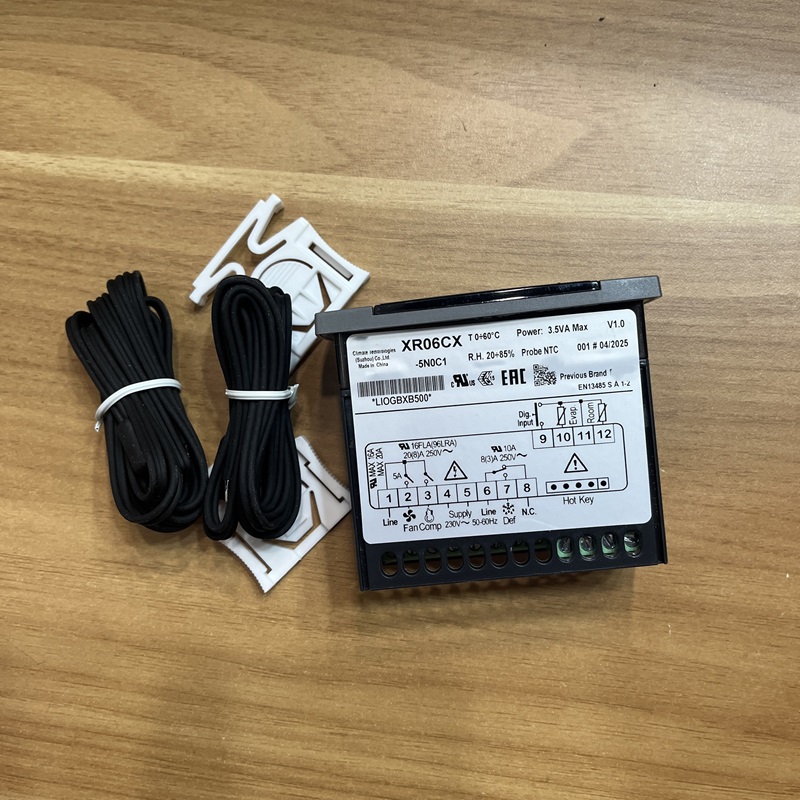

Package Includes

1 × XR06CX-5N0C1 Digital Temperature Controller
2 × NTC Temperature Probes (1.5m cable length)
2 × Mounting Brackets
1 × User Manual (English)

Why Choose XR06CX-5N0C1?

All-in-One Control: Integrates temperature regulation, defrost management, and fan control in one compact unit—eliminates the need for separate timers, contactors, or additional controls.
Energy Efficiency: Optimized defrost and fan cycles reduce power consumption by up to 15%, lowering operational costs for businesses.
Easy Integration: Standard panel-mount design, universal voltage compatibility, and NTC probes work with most existing refrigeration systems—no major modifications required.
Low Maintenance: Solid-state construction with no moving parts ensures long service life, minimal downtime, and reduced replacement costs.
Global Compatibility: 230V AC ±10% voltage range and CE/RoHS certifications make it suitable for use worldwide.
Precision & Reliability: High-precision temperature control and robust design ensure consistent performance, protecting temperature-sensitive products and reducing waste.

Installation & Wiring

Mounting: Install the controller in a vertical panel (cutout size: 74×32mm) away from direct heat sources, vibration, or moisture (except for the IP54-protected front panel).

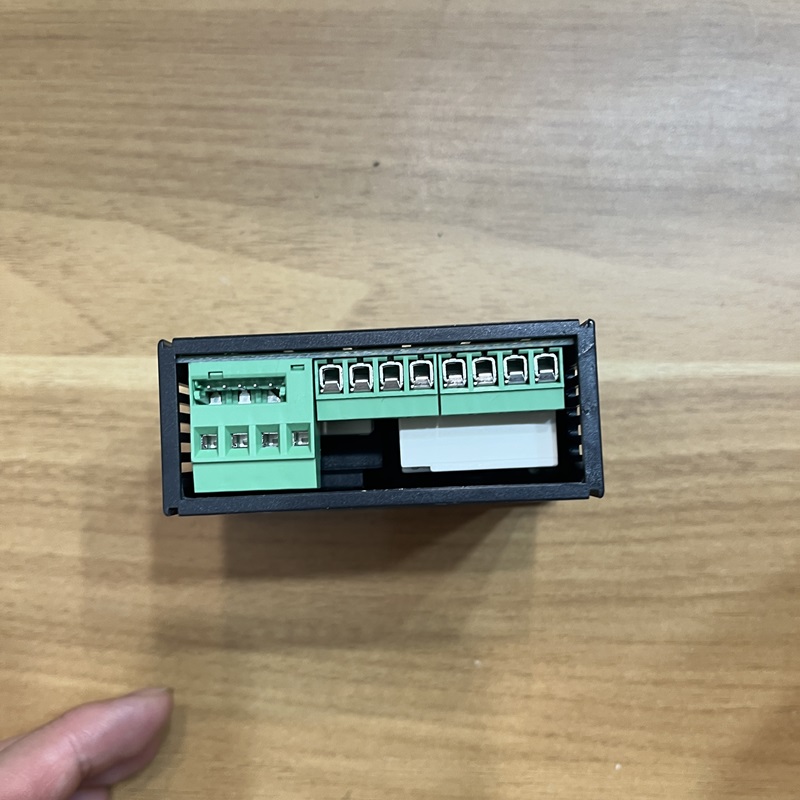

Wiring: Use cables up to 2.5mm² for terminals. Connect the NTC probes to the evaporator (defrost probe) and cabinet (control probe) as per the user manual.
Power Connection: Connect 230V AC to the L/N terminals, ensuring proper grounding to prevent electrical hazards.
Programming: Use the HOTKEY function for quick parameter setup, or manually configure the temperature setpoint, defrost modes, and fan settings using the front-panel buttons.

FAQ

Q: What does the “-5N0C1” suffix in XR06CX-5N0C1 mean?

A: The “-5N0C1” suffix denotes the controller’s key configuration: 230V AC power supply, 3 relay outputs, NTC temperature probes, and standard firmware—this is the most common configuration for commercial refrigeration applications worldwide.

Q: Can this controller be used for heating applications?

A: No—this controller is specifically designed for refrigeration (cooling) systems only. For heating applications, select a dedicated digital temperature controller engineered for heating loads.

Q: How do I troubleshoot a probe error?

A: If you see a probe error (fault code E1 = control probe error; E2 = evaporator probe error), check the following: 1) Ensure the probe wiring has no breaks or loose connections; 2) Verify the probe is an NTC type (10kΩ at 25°C); 3) Confirm the probe is connected to the correct terminals on the controller.

Q: Is this controller suitable for outdoor use?

A: The front panel has IP54 protection (dust and water-resistant), but the controller itself is not fully weatherproof. It is designed for indoor installation in non-conditioned spaces (e.g., warehouses, utility rooms) but should not be exposed to direct rain or extreme outdoor conditions.

Order Information

Model: XR06CX-5N0C1
SKU: XR06CX5N0C1
Warranty: 12 months (manufacturer’s defect coverage)
Shipping: Worldwide shipping available; ships in 1–2 business days from in-stock inventory
Payment Options: Credit card, PayPal, bank transfer

Optimize your refrigeration system with the XR06CX-5N0C1 digital temperature controller—precision, reliability, and easy operation in one compact, cost-effective unit. Order today to ensure consistent temperature control and reduce operational costs!
