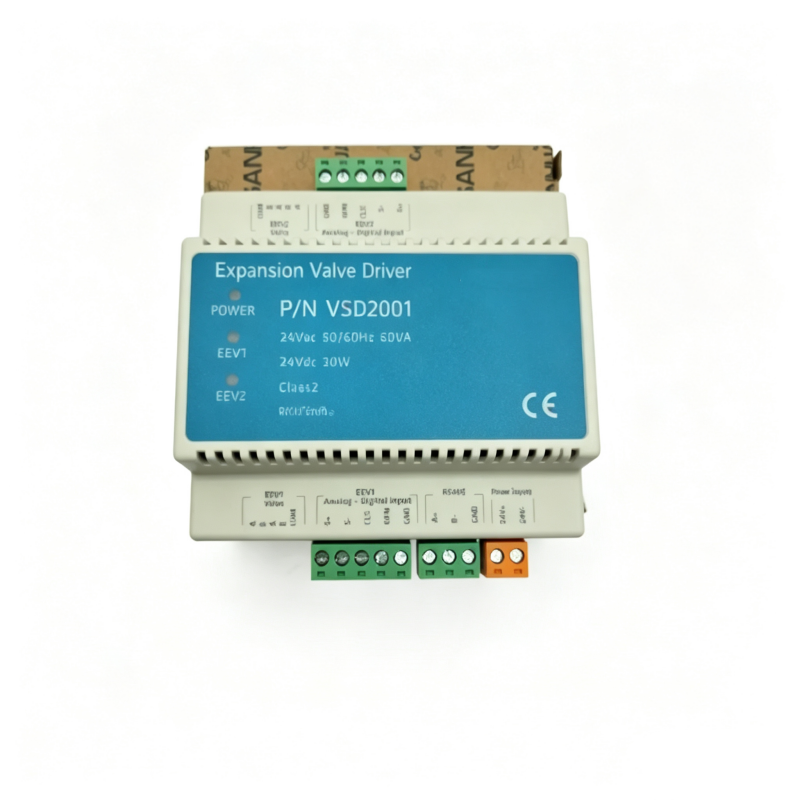

Name: VSD2001 HVAC Electronic Expansion Valve Drive Module
SKU: VSD2001
Availability: InStock

Overview

VSD2001 is a dual-channel independent electronic expansion valve driver developed for commercial HVAC, reversible heat pumps and industrial refrigeration systems. It receives analog control signals (0~10VDC or 4~20mA) from main controller to adjust valve opening continuously. It supports independent selection of unipolar and bipolar drive modes, fully compatible with Sanhua VPF, DPF, LPF series stepper electronic expansion valves. Equipped with RS485 Modbus RTU communication interface, supports up to 32 units cascading. It adopts DIN slide rail installation, with forced open/forced close function for on-site debugging, widely used in systems requiring two independent refrigerant flow control loops.

Key Features

Dual independent control channels, capable of driving two EEVs simultaneously
Freely switchable unipolar / bipolar driving mode for different valve models
0~10VDC / 4~20mA dual analog signal input options
Built-in RS485 Modbus RTU, support multi-device cascading
Force open / force close switch, convenient field commissioning
Standard DIN35 slide rail mounting, simple cabinet installation
Wide power supply: 24VAC / 24VDC universal input
Constant current stepper motor control, stable and low noise operation

VSD2001 technical specifications table

Item	Details
Model	VSD2001
Compatibility	VPF / DPF / LPF series unipolar & bipolar stepper electronic expansion valves
Working Voltage	24Vac (20~28Vac,50/60Hz) / 24Vdc (20~28Vdc)
Signal Input	0~10VDC or 4~20mA analog signal
Operating Temperature	-30℃ ~ +55℃
Mounting	DIN35 slide rail mounting
Product Length	111mm
Product Width	102mm
Product Height	44mm
Product Weight	0.36kg
Country of Origin	China
HS code	8537109090
Shipping Length	135mm
Shipping Width	120mm
Shipping Height	65mm

Same Series Display Models

VSD1002

VSD2001

Matching Series Controllers

VPF12.5H01

VPF12.5H53

VPF25H01

VPF25H55

VPF50H01

VPF50H03

VPF50H53

VPF100H01

VPF100H03

VPF150H00

VPF250H43

VPF320H03

VPF400H03

Supporting System Accessories

YCQB02L01

YCQC02L01

TM02

SP02

NTC10K

PT1000

Application Scope

Model VSD2001 matches VPF series bidirectional electronic expansion valves, widely applied in multi-system commercial central air conditioners, dual-circuit air source heat pumps, modular chillers, combined cold storage units, supermarket multi-unit refrigeration systems, waste heat recovery equipment and all HVAC refrigeration systems requiring two independent EEV control channels.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
