Name: PYST1H0555 Digital Temperature Controller
SKU: PYST1H0555
Availability: InStock

Overview

This PYST1H0555, microprocessor-driven digital temperature controller is engineered for precise climate regulation in refrigeration, HVAC, and commercial/industrial applications. Operating on a standard 230VAC power supply, it features a panel-mount form factor with plug-in screw terminals for quick, secure installation. It supports dual NTC temperature probes and auxiliary inputs, enabling accurate monitoring and control of cooling cycles, defrost operations, and system alarms, while its high-reliability relay outputs are rated to handle typical compressor and auxiliary equipment loads.

Key Features

Precision Temperature Control: Supports dual NTC probe inputs for accurate ambient and evaporator temperature monitoring, with configurable setpoints for cooling and defrost operations.
230VAC Power Supply: Built for direct mains operation, eliminating the need for external transformers in standard 230V environments.

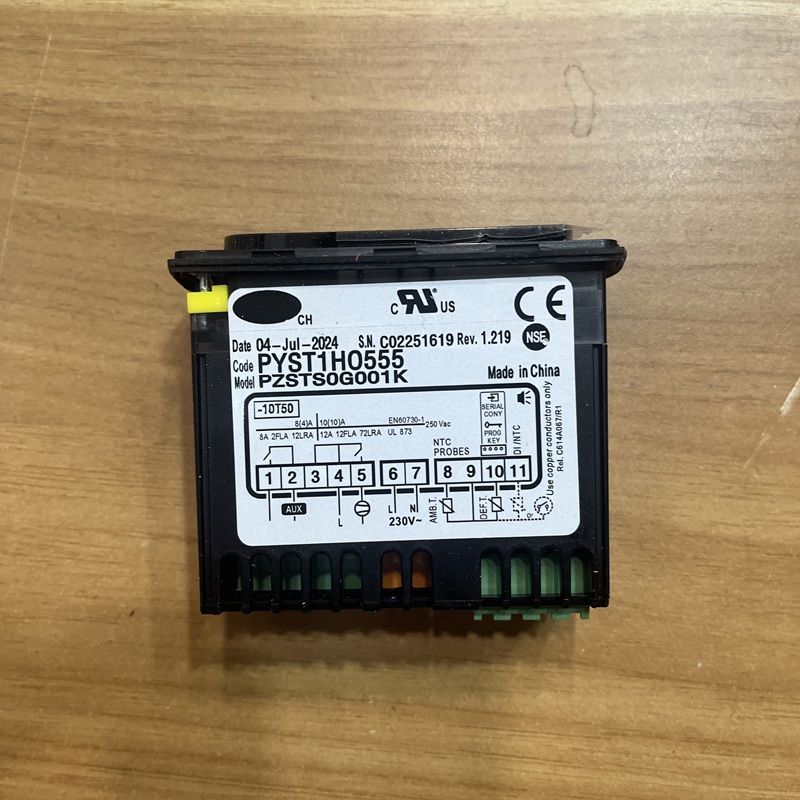

High-Capacity Relay Outputs: Rated for up to 12A FLA / 72A LRA (250Vac), capable of directly driving refrigeration compressors and auxiliary loads.

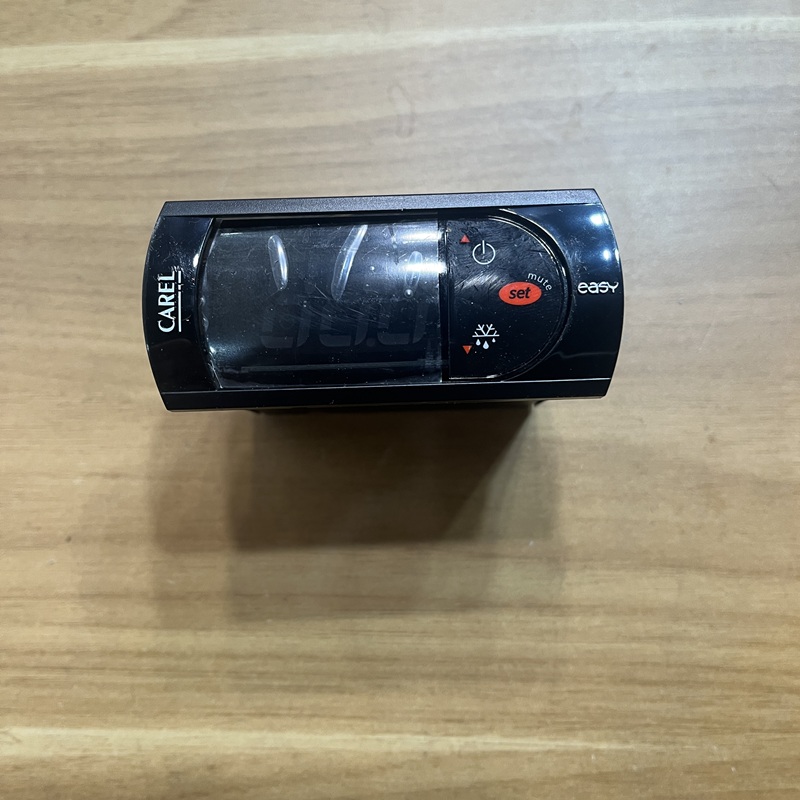

User-Friendly Interface: Integrated buzzer alarm and status indicators provide immediate visual/audio feedback for system conditions and faults.

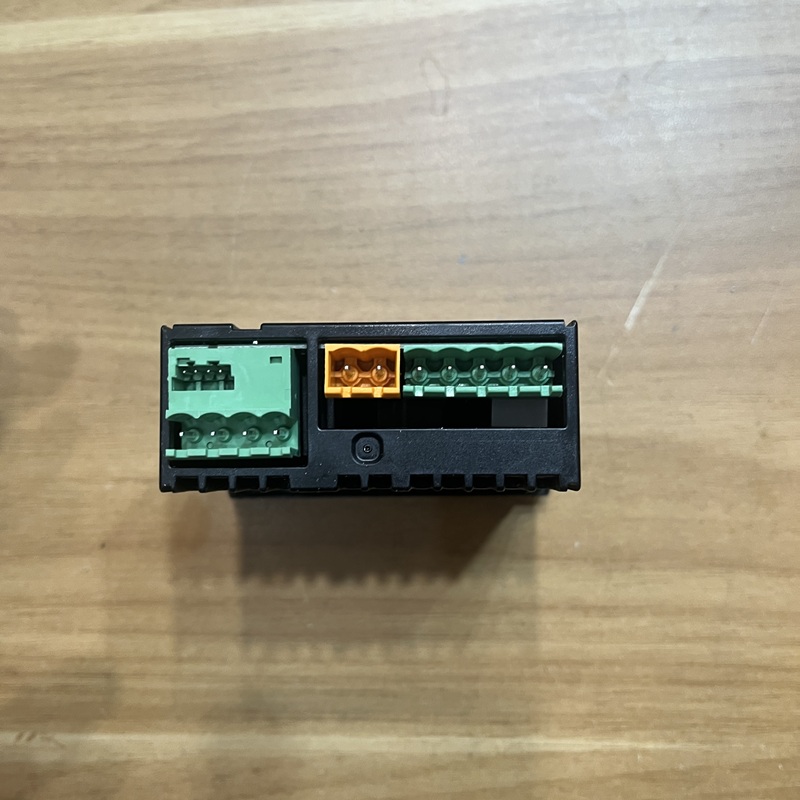

Compact DIN-Rail Design: 71×29mm form factor fits standard panel cutouts, with plug-in screw terminals for fast, secure wiring.
Certified Reliability: Compliant with CE and UL safety standards, built for long-term performance in demanding operating conditions.
Versatile Functionality: Includes auxiliary input and configurable operating modes for refrigeration cabinets, cold rooms, and HVAC systems.

PYST1H0555 HVAC display panel technical specifications table

Parameter	Specification
Model	PYST1H0555
Compatibility	Refrigeration cabinets, cold rooms, HVAC systems
Working Voltage	230 VAC
Operating Temperature	-10°C ~ +50°C (typical)
Mounting	Panel mount (standard cutout)
Product Length	71 mm
Product Width	35 mm
Product Height	80 mm (approx.)
Product Weight	Approx. 0.10 kg
Country of Origin	China
HS code	9032.10.0000 (standard for automatic temperature regulators)
Shipping Length	120 mm
Shipping Width	80 mm
Shipping Height	60 mm

Same Series Display Models

PZSTS0G001K

PYST1C0000

PYST1H0000

PYST1H0500

PZSTS0G000K

PZSTS0G002K

PZSTS0G003K

PZSTS0G004K

PJEZS0G000

Previous compatible models

PJEZS0G000

PZSTS0G000K

PYST1C0000

PYST1H0000

PYST1H0500

IR33S0EN00

IR33S0EA00

IR33S0LN00

IR33S0LC00

IR33Y0E000

IR33Y0L000

IR33F0EHA0

IR33F0ET00

IR33C0H000

IR33Z7LR20

IR33Z9MR20

IR33V7LR20

Application Scope

This temperature controller is designed for precise and reliable temperature regulation in a wide range of commercial refrigeration and light industrial applications. It is suitable for use in refrigerated display cabinets, reach-in coolers/freezers, walk-in cold rooms, beverage coolers, under-counter refrigerators, refrigerated prep tables, blast chillers, and small-scale HVAC systems, providing stable control for food service, retail, and cold storage environments.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable

Our Service

We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.

For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
