Overview
Key Features
- Model: PZUXC1E0G1 refrigeration temperature controller
- 230VAC rated working voltage, stable operation
- Compatible with NTC temperature probe, high-precision temperature sensing
- Integrated control for compressor, fan and automatic defrost

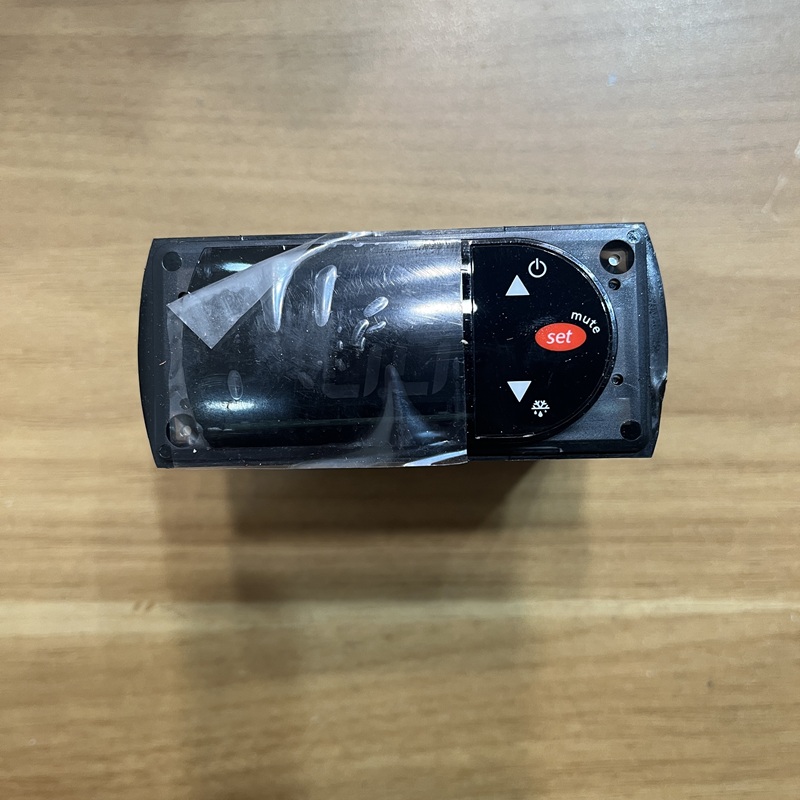

- LED digital display, clear temperature and parameter viewing
- Simple button operation, convenient parameter setting and adjustment
- Working ambient temperature: -10℃ ~ 50℃, wide application range

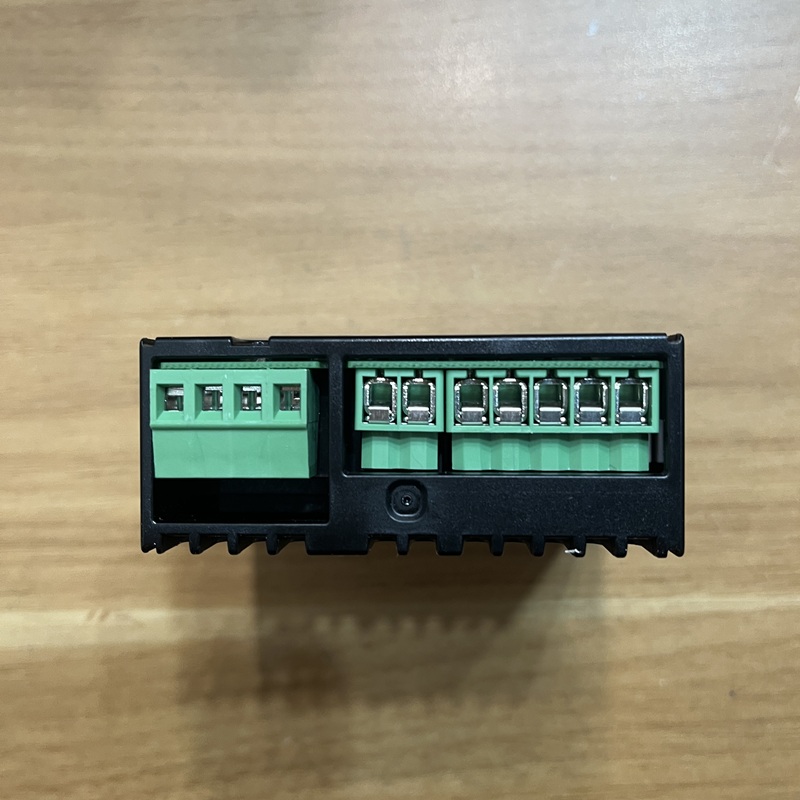

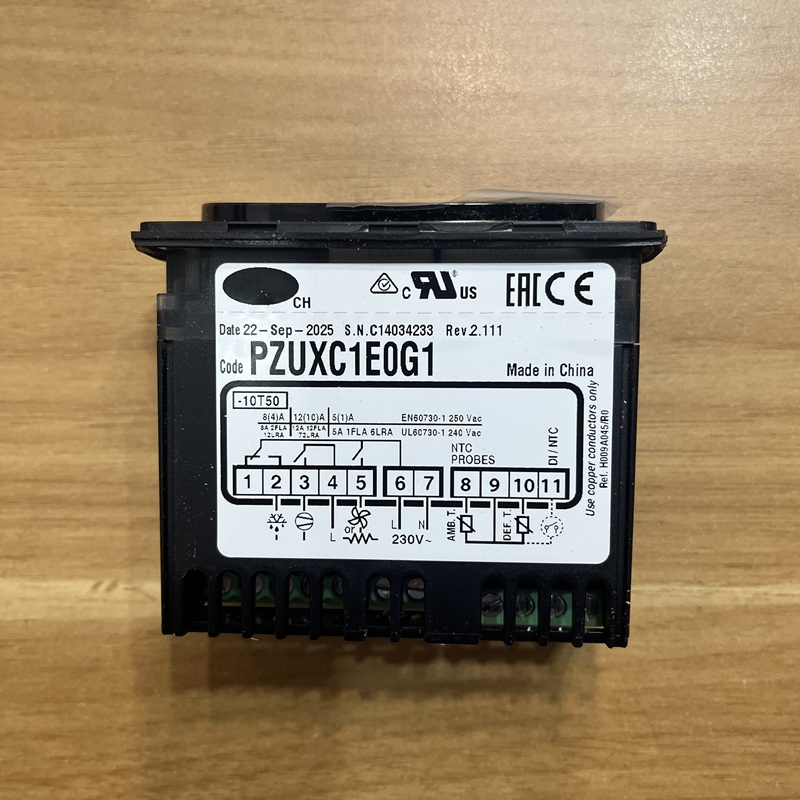

- 11-bit terminal block, safe and convenient wiring
- Embedded installation design, complete supporting mounting accessories
- Industrial grade performance, suitable for long-term continuous operation
PZUXC1E0G1 HVAC display panel technical specifications table
| Parameter | Specification |
|---|---|
| Model | PZUXC1E0G1 |
| Compatibility | Commercial refrigeration units, display cabinets, cold storage rooms |
| Working Voltage | 230 VAC 50/60 Hz |
| Operating Temperature | -10 °C ~ +50 °C |
| Mounting | Panel cutout mounting (standard 71×29 mm) |
| Product Length | 71 mm |
| Product Width | 35 mm |
| Product Height | 76 mm |
| Product Weight | Approx. 0.1 kg |
| Country of Origin | China |
| HS code | 9032.89.9000 (general for temperature controllers) |
| Shipping Length | 150 mm |
| Shipping Width | 100 mm |
| Shipping Height | 80 mm |
Related & Matching Model List
Same PZUX Series Display Models
PZUXC1E0G1
PZXUC0E001
PZUAC0EB20
PZJZC1E0H1
Previous compatible models (PJEZ series)
PJEZC00000
PJEZC0E000
PJEZC0H000
PJEZS0A000
PJEZS0H000
PJEZSNH100
PJEZC0EB00
PJEZC0E060
PJEZC0E070
Same series function expansion models (differentiated by function/power supply)
| Model Prefix | Power Supply Specification | Probe/Function Differences |
|---|---|---|
| PZUXCxxx | 230VAC | 2 NTC probes, basic refrigeration control (your model belongs to this category) |
| PZUXSxxx | 115VAC | Same functions as the PZUXC series, but with 115V power supply |
| PZUXYxxx | Multi-probe extended version | Supports 3 NTC probes with additional digital inputs |
Supporting System Accessories

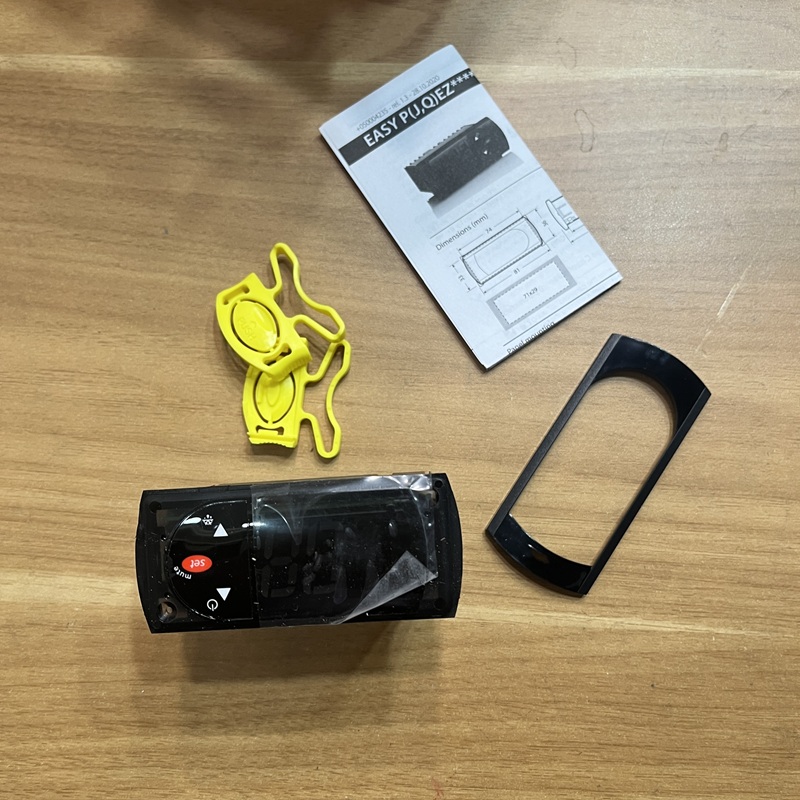

1. Standard Installation Accessories (Included in Package)
| Accessory | Function |
|---|---|
| Panel Mounting Bezel | Black decorative frame for flush installation in cabinet panels |
| Mounting Clips | Yellow plastic clips to secure the controller in the panel cutout |
| Installation Manual | Quick reference guide for wiring, configuration, and basic operation |
| Accessory | Specification | Function |
|---|---|---|
| NTC Temperature Probes | standard 10kΩ NTC probes | Measure cabinet temperature (Ambient T) and evaporator temperature (Defrost T) |
| Probe Extension Cables | Various lengths (2m / 5m / 10m) | Extend probe reach for installation in large cabinets or cold rooms |
3. Configuration & Programming Accessories
| Accessory | Model | Function |
|---|---|---|
| Parameter Copy Key | IROPZKEY00 | Duplicate and transfer controller settings between units for fast mass configuration |
| RS485 Communication Module | BXOPZI48500S0 | Enables Modbus communication for remote monitoring and system integration |
4. System Compatibility Accessories
| Accessory | Compatibility | Function |
|---|---|---|
| Electronic Expansion Valves | E2V/E3V/E4V/E6V Series | Compatible valves for integrated refrigeration system control (paired with controller logic) |
| External Buzzer/Alarm | Dry contact compatible | Connect to the digital input (DI) port for audible/visual high/low temperature alarms |
Application Scope
Industrial chillers, industrial air-cooled condensing units, refrigeration compressor unit control cabinets, workshop constant temperature and humidity equipment, industrial low-temperature test chambers, constant temperature maintenance equipment, industrial assembly line supporting refrigeration systems, and can also adapt to small and medium-sized industrial cold storage, industrial and commercial integrated refrigeration equipment
