Name: PGD1000F00 LCD Digital Control Panel
SKU: PGD1000F00
Availability: InStock

Overview

The PGD1000F00 is a compact, wall-mountable digital control panel designed for HVAC and refrigeration systems. Featuring a clear LCD display and intuitive multi-key interface, it enables real-time monitoring, parameter configuration, and system operation control. Its RJ12 communication interface and dedicated connection cable ensure stable data transmission with compatible controllers, offering reliable, user-friendly operation for various commercial cooling and climate management applications.

Key Features

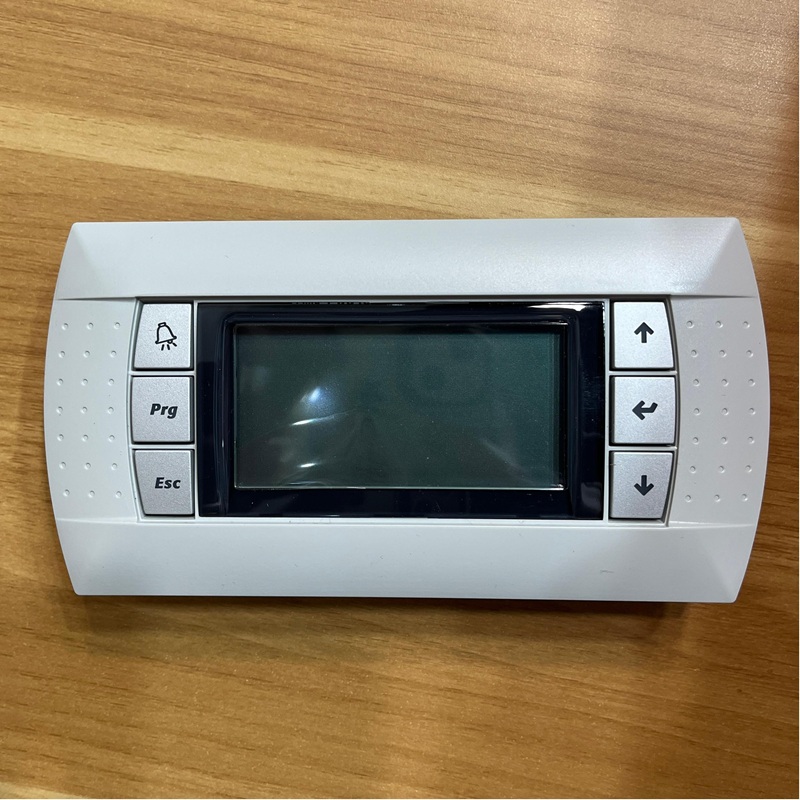

Clear LCD display for real-time data readout
Multi-key interface with alarm, program, and navigation functions

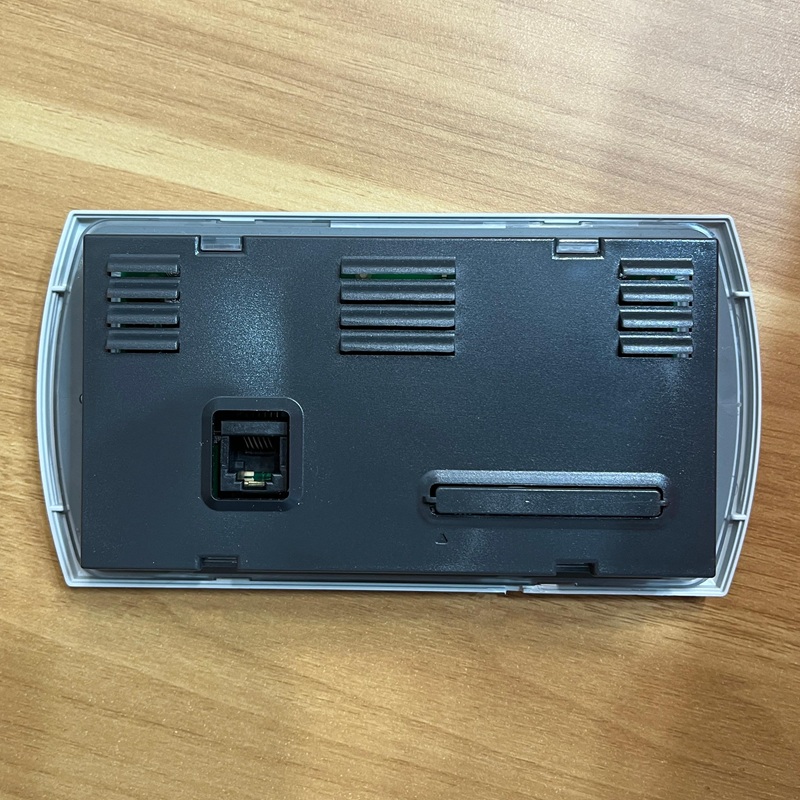

RJ12 communication port for reliable controller connection
Compact wall-mount design for easy installation

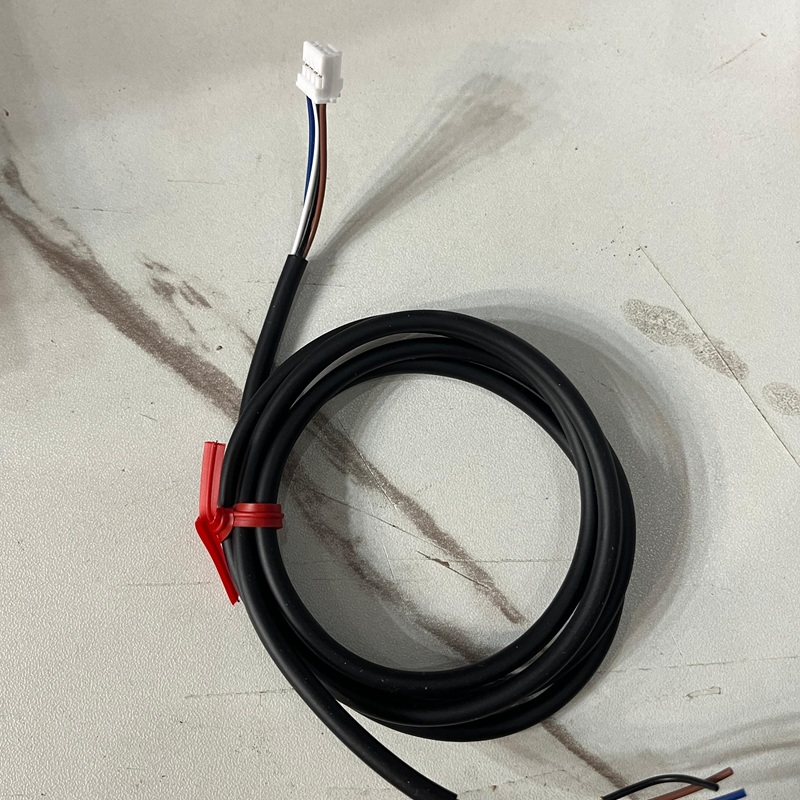

Dedicated 3-wire connection cable included
Programmable parameters for flexible system configuration
Durable housing for commercial and industrial environments

PGD1000F00 HVAC display panel technical specifications table

Parameter	Value
Product Type	Humidification
pGD Series	pGD1
pGD Display Backlighting Color	Green
Mounting	Built-In or Panel
Screen Resolution	132 x 64 Pixels
Buzzer	No
Logo	Yes
Product Length	6.25 inches (15.875 cm)
Product Width	3.25 inches (8.255 cm)

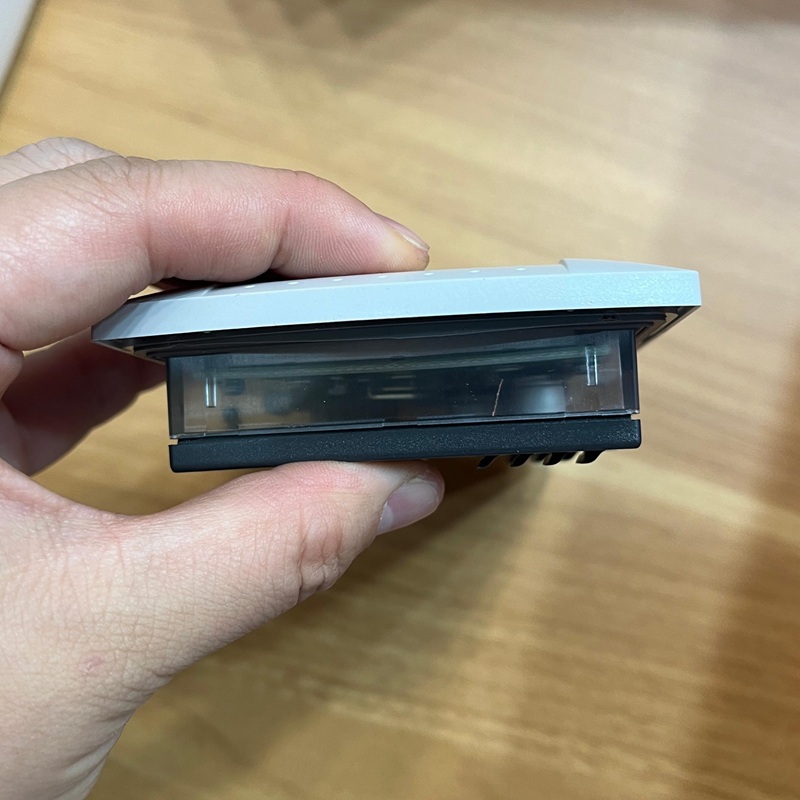

Product Height	1.125 inches (2.858 cm)
Product Weight	0.6 lbs (0.272 kg)
Country of Origin	China
Schedule B Number	9032.90.6180
Shipping Length	7.25 inches (18.415 cm)
Shipping Width	5.5 inches (13.970 cm)
Shipping Height	2.5 inches (6.350 cm)

Same PGD Series Display Models

PGD1000F01

PGD1000FZ0

PGD1000FZ1

PGD1000FW0

PGD1000W00

PGD1000WW0

PGD1010FX0

PGD1010YW0

Matching Series Controllers

pCO1

pCO2

pCO3

pCO5

pCO5+

c.pCO

Supporting System Accessories

S90CONN00*

TCONN6000

PGD1010YW0

Application Scope

This control panel is widely used in commercial refrigeration units such as display cases, walk-in coolers and cold rooms, as well as HVAC systems, air conditioning units, temperature and humidity control systems, industrial chillers, and building climate management and facility automation systems.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
