KCV-1304AGYQ79 Copper Internal Thread One Way Anti-reflux Valve

Name: KCV-1304AGYQ79 Copper Internal Thread One Way Anti-reflux Valve
SKU: KCV-1304AGYQ79
Availability: InStock

Original price was: $320.00.Current price is: $298.00.

Model KCV-1304AGYQ79 brass one-way check valve works under 3.53MPa max pressure. It blocks reverse medium flow to avoid pipeline backflow, with brass cast body and internal thread connectors for refrigeration pipeline installation.

Availability: In stock

SKU: KCV-1304AGYQ79 Categories: Other Refrideration Accessories, Refrigeration Spare Parts Tags: 3.53MPa Pressure Check Valve, Air Conditioning Check Valve, Brass Angle Check Valve, Copper Anti-reflux Valve, Internal Thread Check Valve, KCV-1304AGYQ79, Refrigeration One Way Valve

Overview

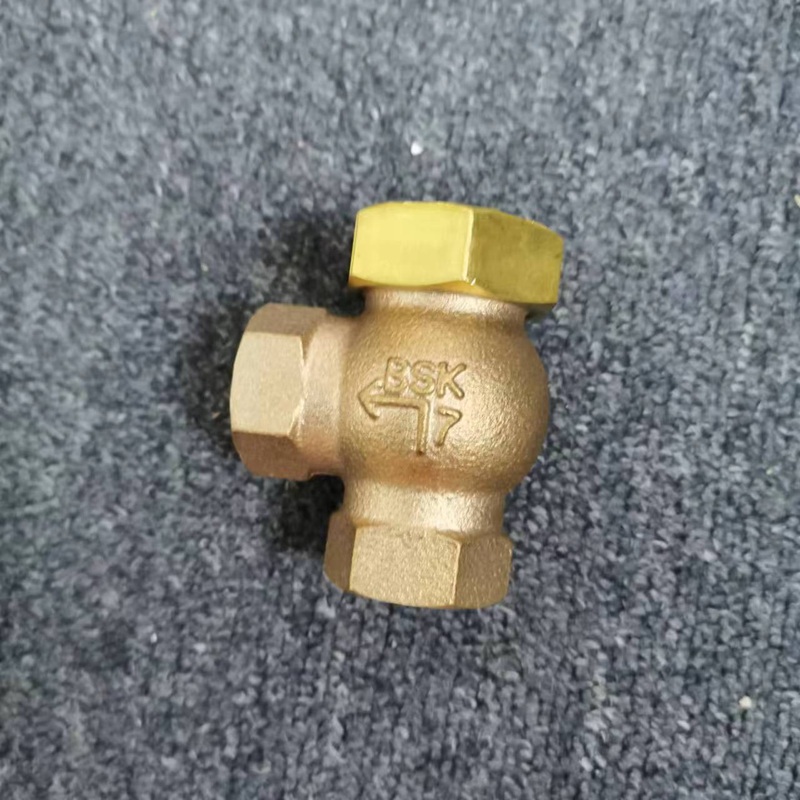

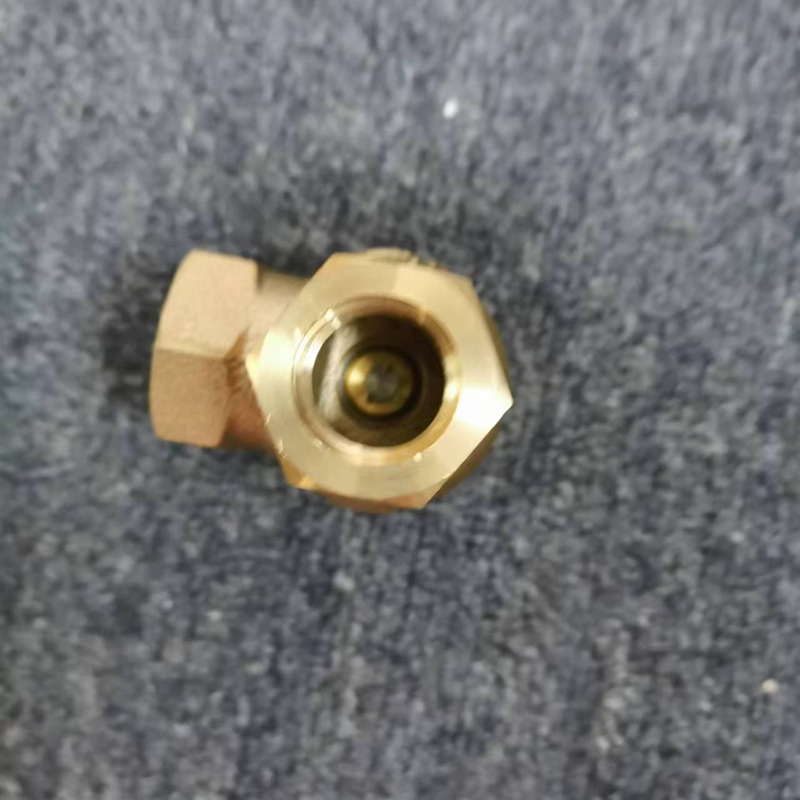

Model KCV-1304AGYQ79 is an angle-type brass check valve with a rated working pressure of 3.53MPa. The whole valve body adopts integrated brass casting, equipped with built-in elastic sealing spool structure, which can quickly cut off reverse fluid flow and effectively prevent medium backflow in pipelines. It comes with full internal thread connection ports for easy pipeline assembly and disassembly. The internal flow channel is smooth to reduce fluid resistance loss, stable sealing performance, and durable structure, suitable for long-cycle continuous operation in refrigerant circulation systems.

Key Features

Rated working pressure up to 3.53MPa, stable pressure resistance
Integrated brass casting valve body, corrosion & wear resistant
Integrated brass casting valve body, corrosion & wear resistant

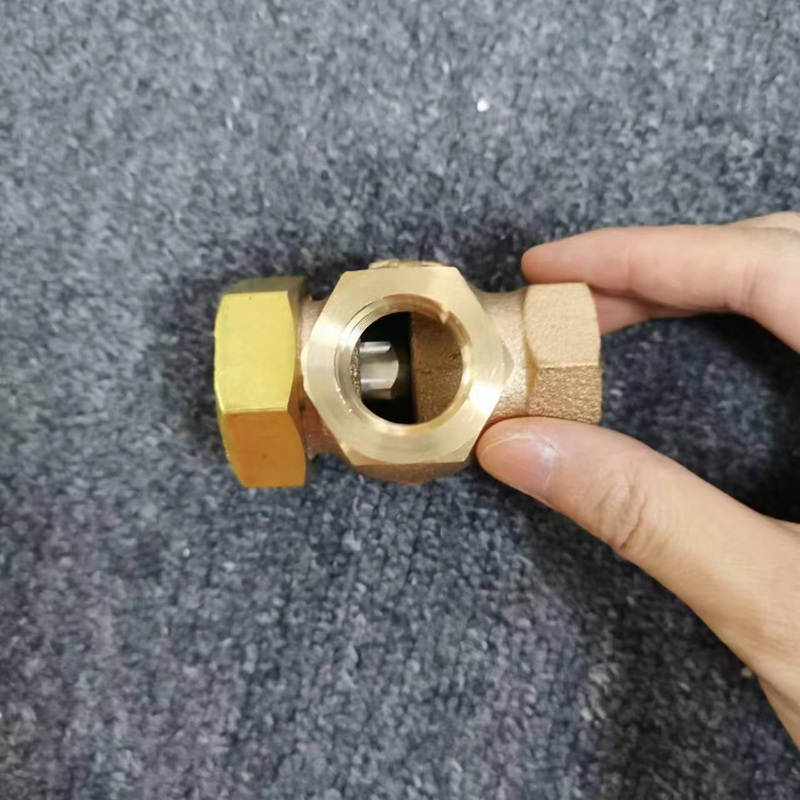

Angle three-way internal thread design, easy pipeline connection
Smooth internal flow channel, low fluid flow resistance
Compact small size, save installation space
Reliable long-term sealing, reduce system failure rate

KCV-1304AGYQ79 technical specifications table

Item	Specification

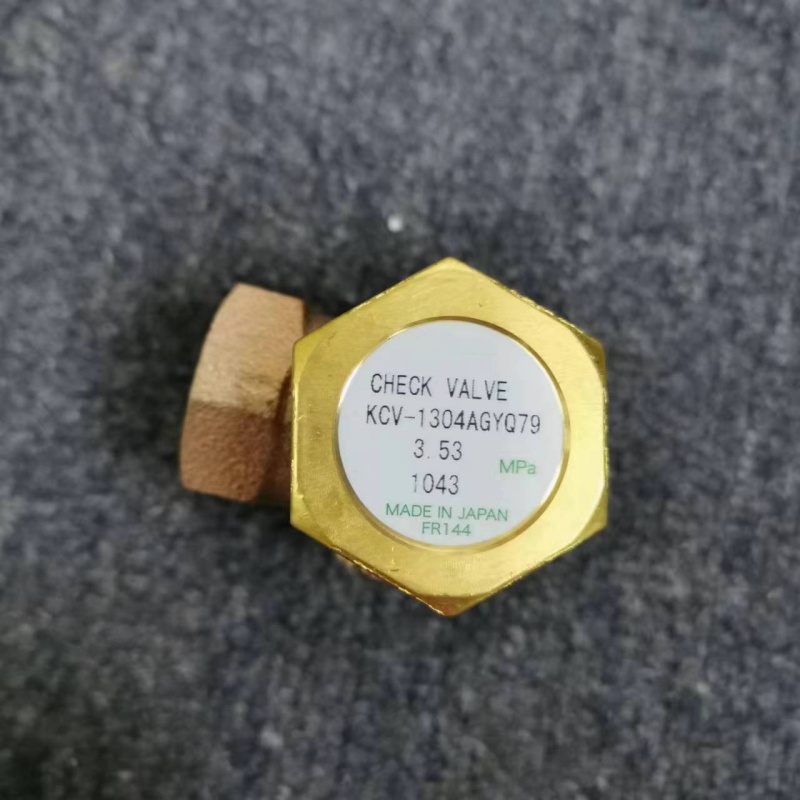

Model	KCV-1304AGYQ79
Rated Working Pressure	3.53 MPa
Valve Material	Integrated Cast Brass
Connection Type	Internal Thread Angle 3-Way
Operating Medium	Refrigerant, Coolant Fluid
Operating Temperature	-20 °C ~ +80 °C
Mounting Mode	Pipeline Thread Direct Mount
Product Length	72 mm
Product Width	48 mm
Product Height	52 mm
Product Weight	Approx. 0.14 kg
Country of Origin	Japan
HS code	848130
Shipping Length	90 mm
Shipping Width	65 mm
Shipping Height	68 mm

Same Series Display Models

KCV-5020GX

KCV-802GY

KCV-1003GY

KCV-1304GY

Matching Series Controllers

QCX-1034DUSA

QCX-1534DUSA

QCX-2034DUSA

RCX-0234BUSA

RCX-0334BUSA

RCX-0534BUSA

RCX-0834BUSA

SEV-502DXF

SEV-603DXF

SEV-603BXF

SEV-1004BXF

Supporting System Accessories

NSK-BD

XSK

NSK-PP02

YSK-PP02

Application Scope

Model KCV-1304AGYQ79 check valve is widely applied in air conditioning refrigeration units, commercial refrigeration equipment, heat pump circulation pipelines, refrigerant transmission pipelines, cold storage cooling systems and small industrial fluid control pipelines, to protect compressors and pipeline components from damage caused by refrigerant backflow.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
