Name: Industrial Touchscreen Display Terminal PGR07000TBDB0
SKU: PGR07000TBDB0
Availability: InStock

Overview

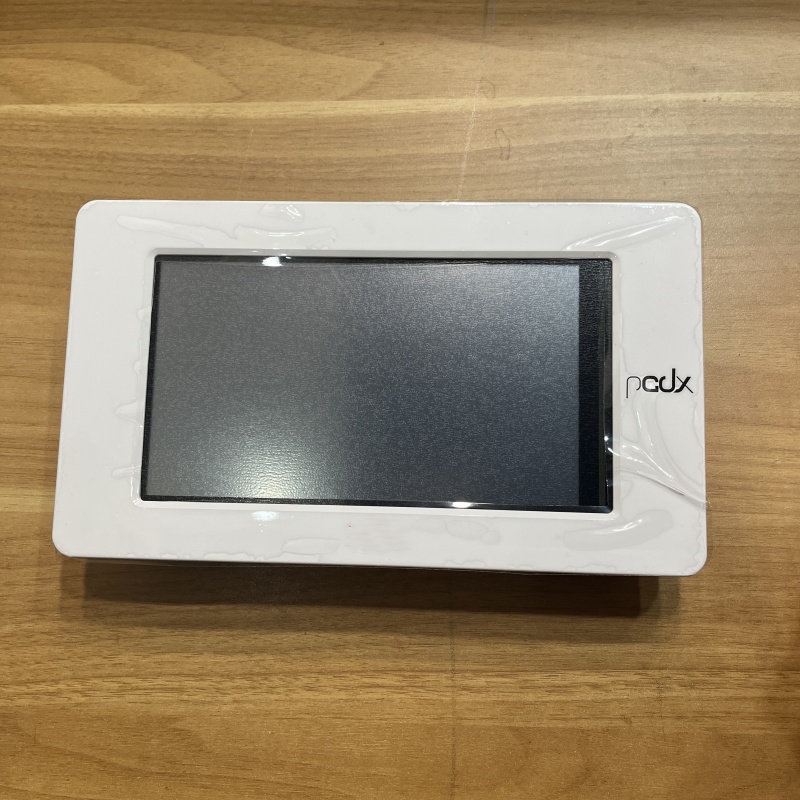

The PGR07000TBDB0 is a 7-inch touchscreen user interface terminal, designed for commercial HVAC and refrigeration systems. With an IP66-rated front panel, it supports real-time monitoring, parameter configuration, alarm management, and intuitive touch control for connected equipment. Its integrated buzzer, real-time clock, and wide operating temperature range make it ideal for demanding industrial and cold chain applications.

Key Features

7-inch TFT touchscreen display for intuitive operation and clear system visualization
IP66-rated front panel, offering excellent dust and water resistance
Built-in buzzer and real-time clock (RTC) for reliable alarm and time management
Supports real-time data monitoring, parameter adjustment, and alarm handling
Wide operating temperature range: -20°C to 60°C, suitable for harsh environments
Designed for seamless integration with commercial HVAC and refrigeration controllers

PGR07000TBDB0 HVAC display panel technical specifications table

Parameter	Specification
Model	PGR07000TBDB0 (pGD Touch 7″ Display)
Compatibility	pCO / c.pCO sistema family controllers (via RS485/ModBus/BACnet protocol)
Working Voltage	12–24 VDC / 24 VAC
Operating Temperature	-20 °C ~ +60 °C
Mounting	Panel mount (flush installation)
Product Length	132 mm
Product Width	83.5 mm
Product Height	24 mm (depth)
Product Weight	Approx. 0.25 kg
Country of Origin	Italy / China (subject to production batch)
HS code	8543.70.90
Shipping Length	180 mm
Shipping Width	130 mm
Shipping Height	60 mm

Same PGR Series Display Models

PGR07000DGDB0

PGR07000TCDB0

PGR07000TDDB0

PGR07000TFDB0

PGR07000TRDB0

PGR07000FGDB0

PGR07000GGDB0

PGB07010FBCA0

Matching Series Controllers

P+500SEA000L0

P+500SEA000M0

P+500SEA000S0

P+500SEA000Z0

PCO3010AZ0

PCO5000000AM0

P+500B0B020M0

PCO5000000EZ0

P+D000NH1DEF0

PCO1000CX0

Supporting System Accessories

PGTA00TRX0

PGTA00SM40

IROPZ48500

IROPZSER30

PCOS004850

SPKC005310

SPKC002310

TRADR1W024

Application Scope

Mainly used for parameter setting, operation monitoring and fault diagnosis of HVAC systems (commercial/industrial central air conditioning units, chillers, heat pump units, modular air conditioning units, fresh air units, fan coil systems), refrigeration systems (temperature control and operation management of cold storage, freezers, quick freezing equipment, commercial refrigeration units, cold chain equipment), building automation (BAS, centralized control and data exchange of HVAC terminals and cold and heat source equipment in building equipment monitoring systems), as well as other temperature control scenarios that require human-machine interaction and parameter configuration, such as laboratory incubators, industrial temperature control equipment, food processing temperature control equipment, medical environment temperature control systems, etc.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
