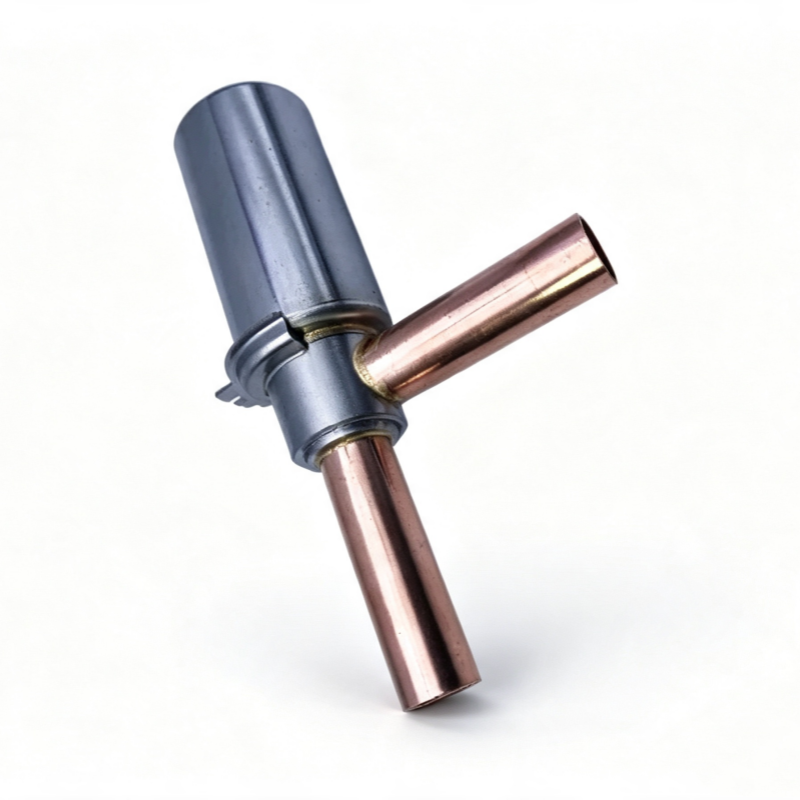

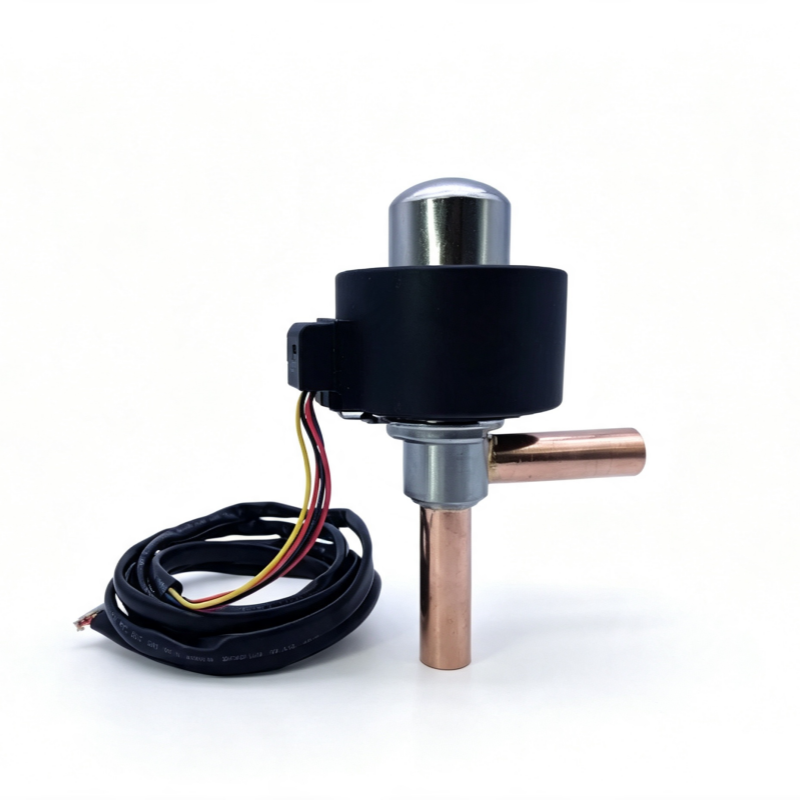

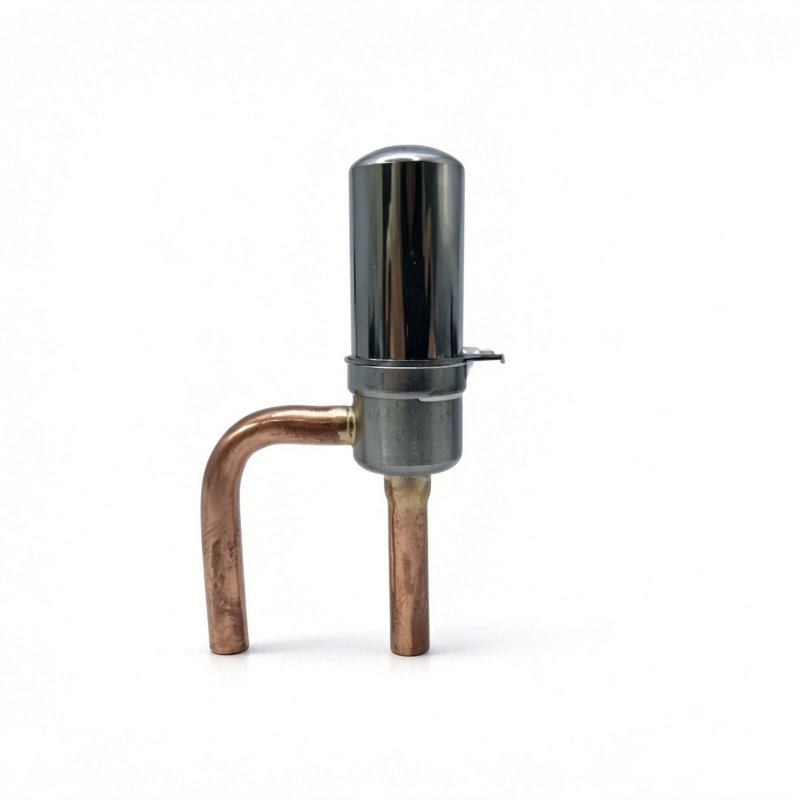

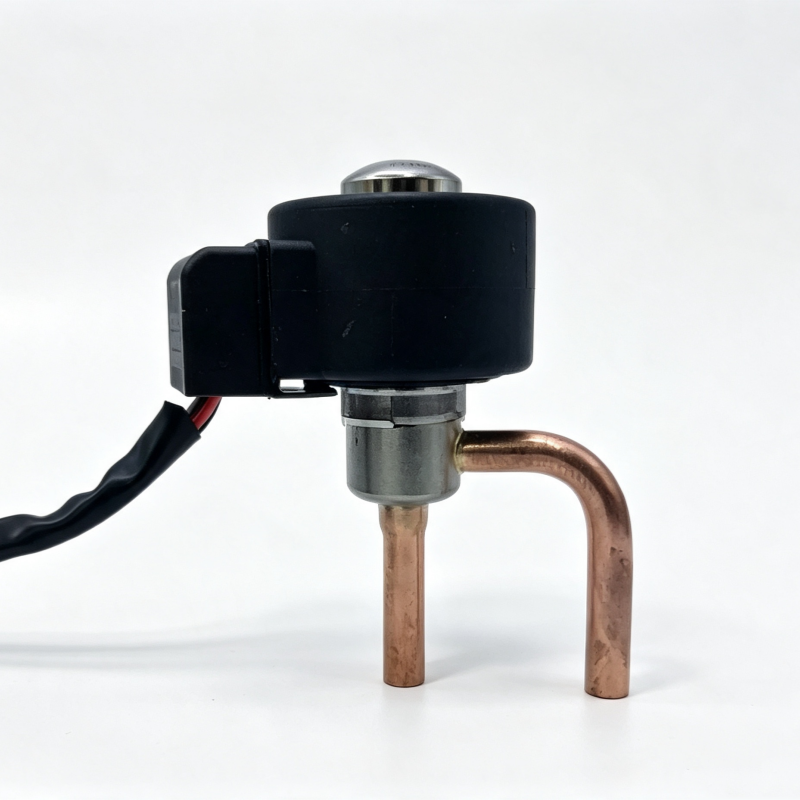

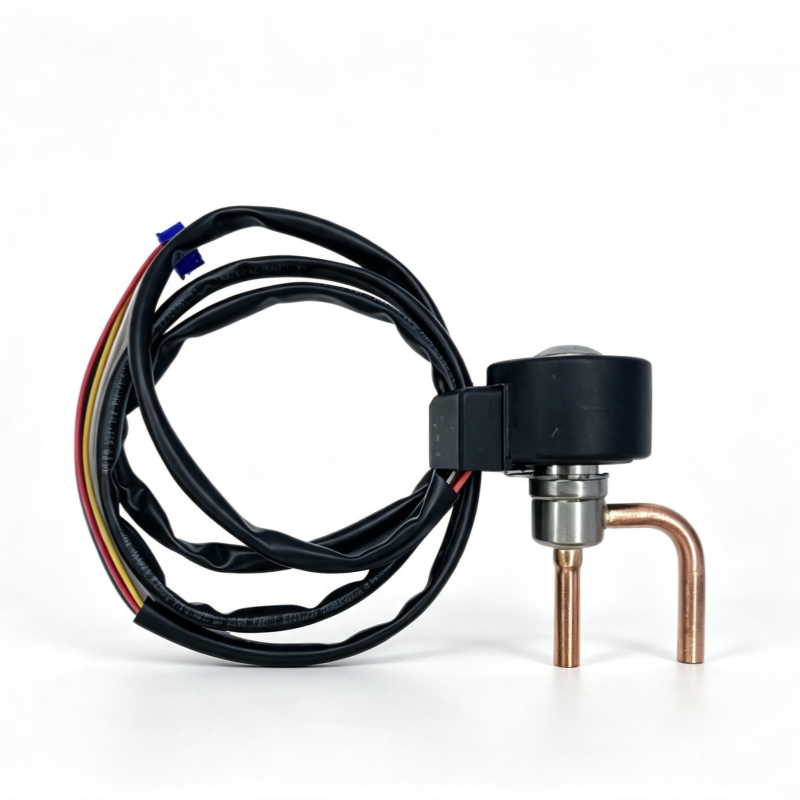

DPF (TS1) 1.3C Heat Pump Refrigerant Control Expansion Valve

Name: DPF (TS1) 1.3C Heat Pump Refrigerant Control Expansion Valve
SKU: DPF(TS1)1.3C
Availability: InStock

Original price was: $20.00.Current price is: $10.00.

DPF(TS1)1.3C is a compact bidirectional electronic expansion valve, used to automatically adjust refrigerant flow for air conditioning and heat pump equipment.

Availability: In stock

SKU: DPF(TS1)1.3C Categories: Expansion Valves, Other Refrideration Accessories, Refrigeration Spare Parts Tags: Air Conditioning EEV Coil, DPF TS1 Valve, Electronic expansion valve, Heat Pump Expansion Valve, HVAC Refrigeration Valve, Refrigerant Flow Control Valve, refrigeration accessories

Overview

DPF(TS1)1.3C is a miniature bidirectional electronic expansion valve specially developed for HVAC, refrigeration and heat pump systems. It adopts stepper motor drive structure, which can continuously and accurately adjust refrigerant flow according to system operating parameters. The valve features low noise, stable action, excellent oil-free system adaptability and complete shut-off function. It can optimize the operation state of HVAC equipment, realize fast cooling and heating, effectively reduce energy consumption, and protect the refrigeration pipeline from overload impact under complex working conditions.

Key Features

Bidirectional flow control, suitable for reversible heating & cooling heat pump systems
Reliable full close function to prevent refrigerant backflow
Stable operation, low vibration and low running noise
Good compatibility with multiple mainstream refrigerants
Small volume, compact copper welding structure, easy installation

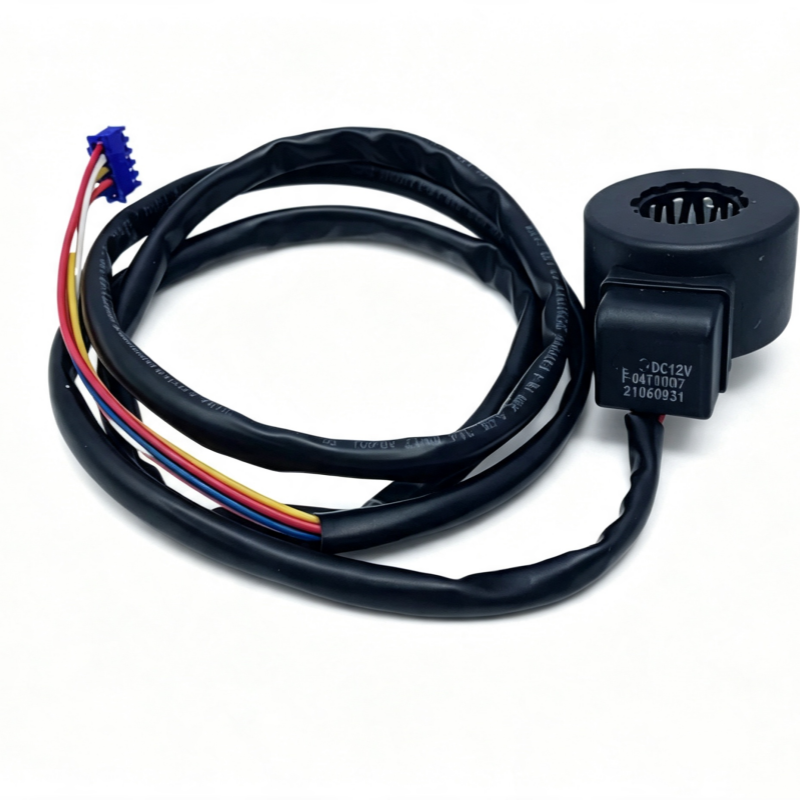

DC12V standard drive voltage, matched general drive coil
Excellent stability, low failure rate for long-term continuous operation

DPF(TS1)1.3C technical specifications table

Item	Details
Model	DPF(TS1)1.3C
Compatibility	R32/R410A/R22/R407C mainstream refrigerants; Household inverter air conditioner, air source heat pump, small HVAC refrigeration equipment
Working Voltage	DC 12V
Operating Temperature	-30℃ ~ +70℃
Mounting	Copper pipe brazing installation
Product Length	62mm
Product Width	34mm
Product Height	41mm
Product Weight	78g
Country of Origin	China
HS code	8481309000
Shipping Length	100mm
Shipping Width	60mm
Shipping Height	65mm

Same Series Display Models

DPF(TS1)1.3C

DPF(TS1)1.8C

DPF(TS1)2.0C

DPF(TS1)2.2C

DPF(TS1)2.4C

DPF(TS1)3.0C

DPF(TS1)3.2C

Matching Series Controllers

F04T10007

F04T10008

PRM10007

PRM10008

Supporting System Accessories

DPF-09007

DPF-09008

10130367801

10130392402

Application Scope

Model DPF(TS1)1.3C is widely applied in household inverter air conditioners, small commercial air conditioning units, air source heat pumps, water heaters, refrigerated display cabinets and small refrigeration equipment, it is the core flow control component of HVAC refrigeration system, used to regulate refrigerant flow in both cooling and heating cycles, stabilize system pressure and realize intelligent temperature control.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable

Our Service

We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.

For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.

Should you need alternative models, kindly reach out to our team. Our company offers a comprehensive lineup of refrigeration accessories to meet diverse application demands.
