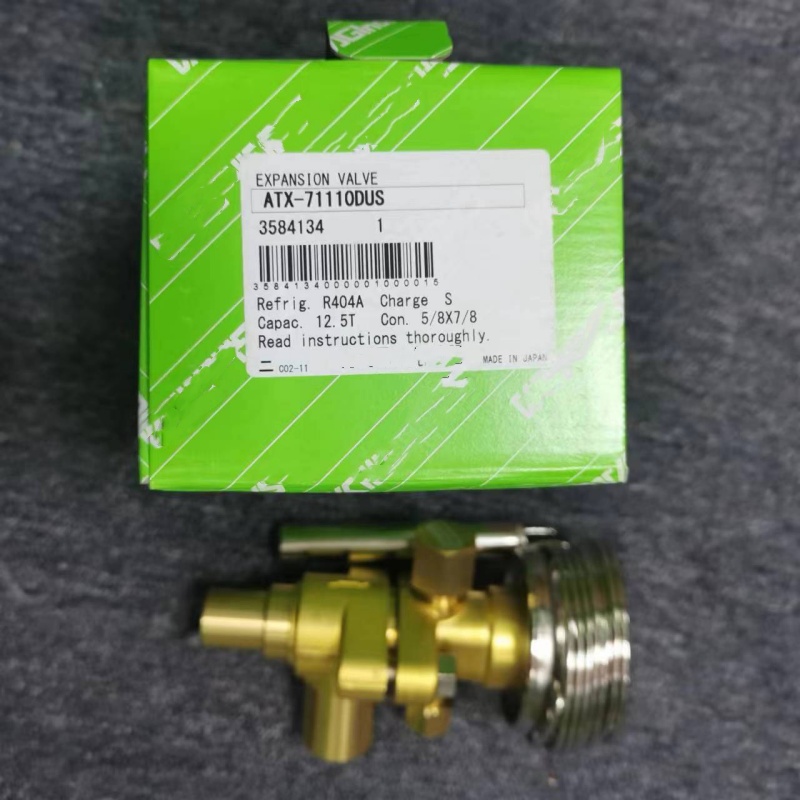

12.5T Cooling Expansion Valve ATX-71110DUS for Refrigeration Unit

         This ATX-71110DUS thermostatic expansion valve is a core flow control component widely used in HVAC and commercial refrigeration systems. Designed for R404A refrigerant with 12.5 tons cooling capacity, it adopts S charging power head and 5/8×7/8 pipe connection specification. The brass valve body matches long capillary sensing bulb structure, which can automatically adjust refrigerant flow according to evaporator temperature, stabilize system superheat, avoid liquid return to compressor, optimize heat exchange efficiency, and extend the service life of refrigeration equipment. It features stable pressure sensing, sensitive temperature response and strong adaptability to variable load environments, being an essential replacement part for medium and low temperature refrigeration circulation loops.

• Matches R404A refrigerant, 12.5 tons rated cooling capacity
• S-type charging power head with high temperature sensing sensitivity

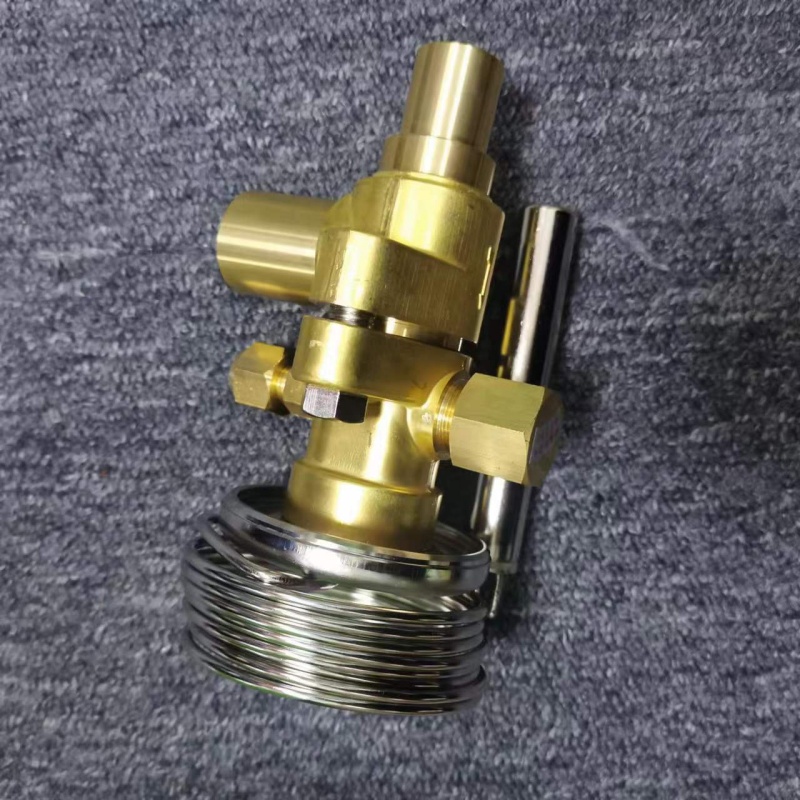

• Solid brass valve body, anti-corrosion and high pressure resistance
• 5/8×7/8 standard pipeline connection, convenient installation
• Automatically adjust refrigerant flow to prevent compressor liquid floodback
• Stable operation under variable load for medium-low temperature cooling systems

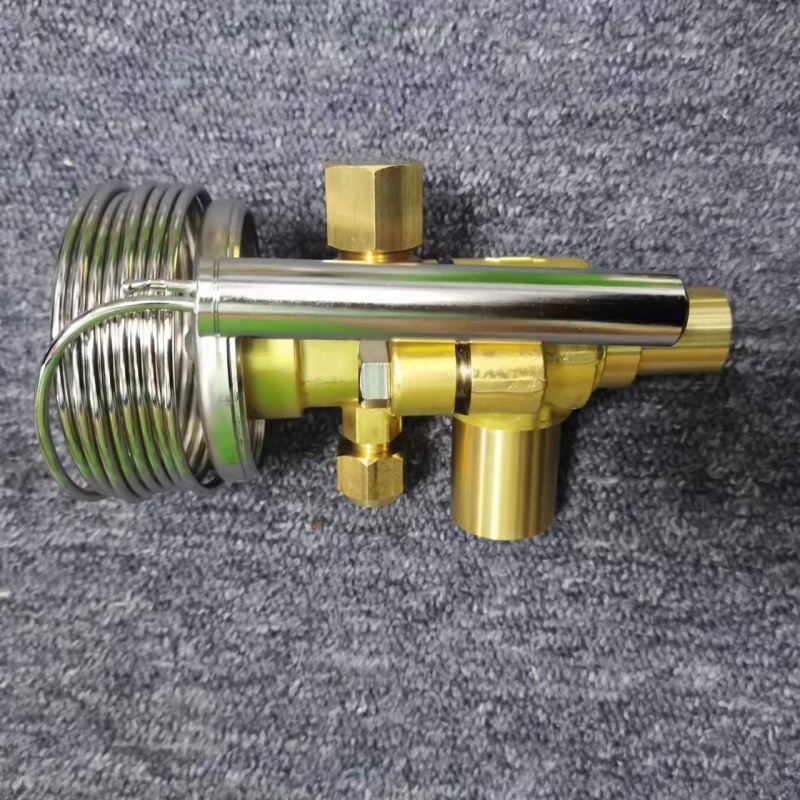

• Complete supporting capillary sensing bulb assembly

Item	Parameter
Model	ATX-71110DUS
Refrigerant	R404A
Rated Capacity	12.5 Tons
Charging Type	S

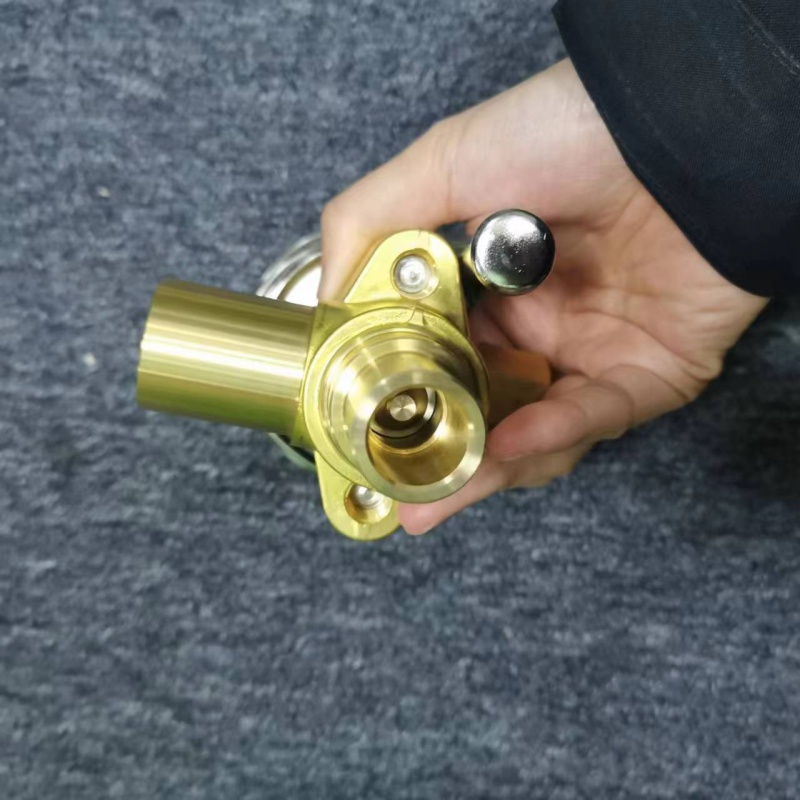

Connection Size	5/8×7/8
Mfg. NO.	7213

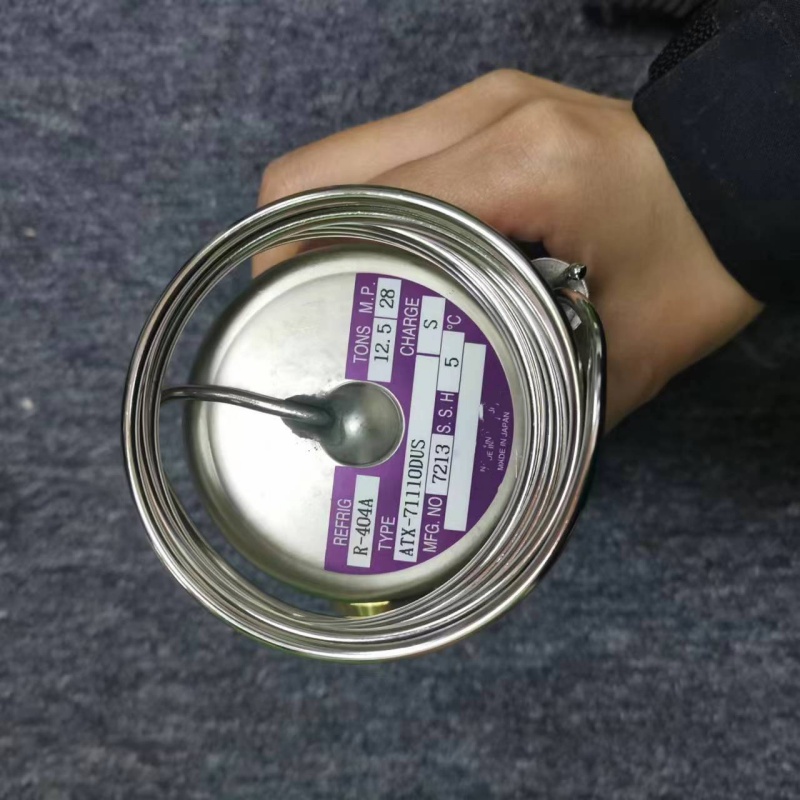

Max Working Pressure	28 TONS M.P.
Applicable Temp.	5 ℃
Valve Body Material	Brass
Origin	Japan
HS code	841861
Product Length	260 mm
Product Width	140 mm
Product Height	110 mm
Product Weight	Approx. 0.65 kg
Shipping Length	300 mm
Shipping Width	180 mm
Shipping Height	130 mm

ATX-71110DHS





ATX-71110DHG





ATX-71160DUS





ATX-71140DHG





ATX-12220DUS





ATX-57080DHS

SEV-603BXF





SNS-C106X





SNS-C106A

---

Application Scope



    The ATX-71110DUS expansion valve is applicable to cold storage freezers, supermarket display chillers, commercial refrigerated cabinets, medium-low temperature refrigeration units, food processing cooling equipment and other industrial & commercial refrigeration facilities, also compatible with matching HVAC refrigeration circulation systems that adopt R404A refrigerant.
