Overview
Model XW60L-5N1C1-N is a multifunctional digital refrigeration temperature controller with model code WPJDBPC500, adopting high-precision NTC temperature sensing technology. It features a clear 3-digit digital display and six physical function keys to realize intuitive parameter setting and real-time temperature monitoring. This control unit integrates independent output ports for compressor, fan, defrost, cabinet light and alarm signal, supporting cold storage, refrigerated showcase and freezer equipment. Built with complete protection logic for over-temperature, probe failure and power-off memory, it runs steadily under 9VA max power supply within 0~60℃ ambient temperature, and meets international safety certification standards for commercial refrigeration equipment.
Key Features
- Model: XW60L-5N1C1-N, part code WPJDBPC500, compact embedded mounting structure
- High precision NTC temperature probe for accurate real-time temperature reading

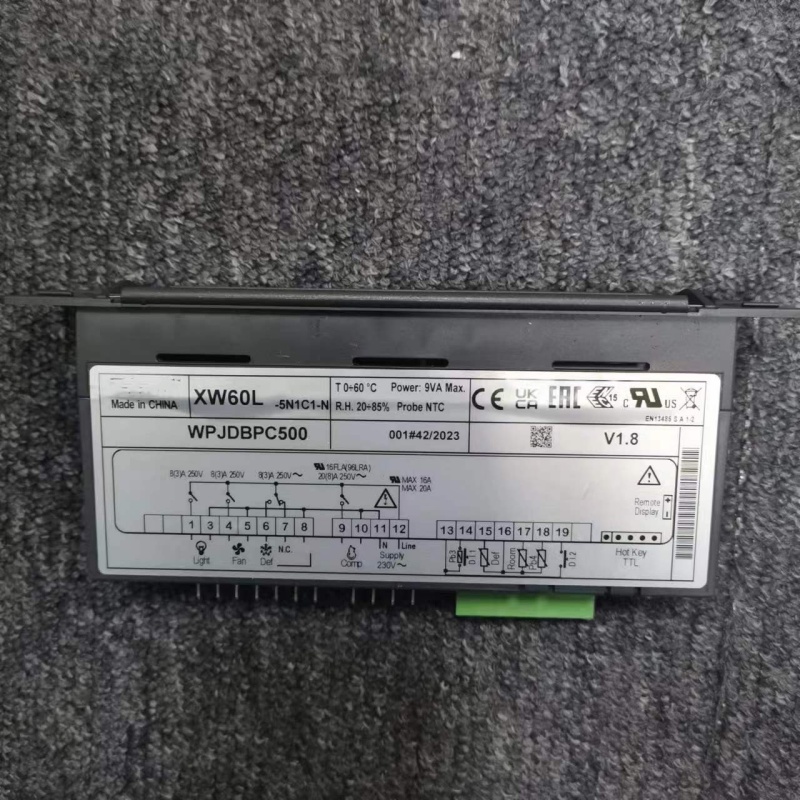

- Independent relay outputs: compressor, fan, electric defrost, cabinet light and alarm

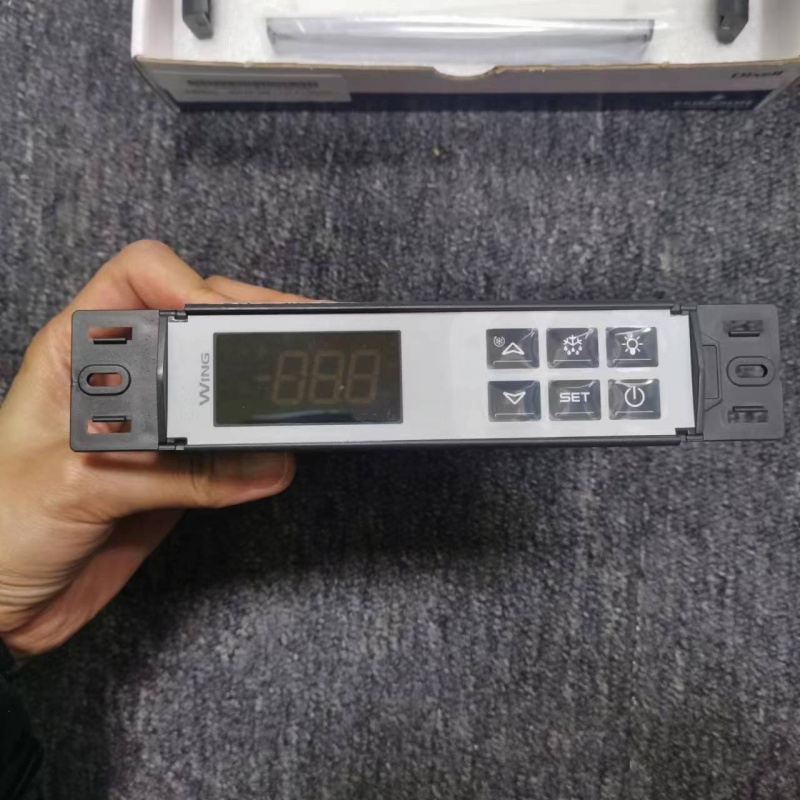

- 3-digit LED digital display, 6 operation keys for easy parameter configuration
- Multiple protection functions: sensor fault alarm, over-temperature protection, power-off data memory
- Wide working ambient temperature range: 0℃ ~ 60℃, max power consumption 9VA
- Support manual forced defrost and temperature calibration function
- Complete international safety & EMC certifications
XW60L-5N1C1-N technical specifications table
| Item | Specification |
|---|---|
| Model | XW60L-5N1C1-N（WPJDBPC500） |
| Compatibility | NTC temperature sensors, commercial refrigeration units |
| Working Voltage | 230 VAC Max, 9VA max power consumption |
| Operating Temperature | 0 °C ~ +60 °C |
| Mounting | Panel embedded installation |
| Product Length | 175 mm |
| Product Width | 76 mm |
| Product Height | 42 mm |
| Product Weight | Approx. 0.22 kg |
| Country of Origin | China |
| HS code | 90328990 |
| Shipping Length | 220 mm |
| Shipping Width | 110 mm |
| Shipping Height | 65 mm |
Same Series Display Models
XW60L-5N0C1
XW60L-5N0C1-N
XW60L-5N1C1
XW60LRH
XW60LT
XW60LRT
XW20L
XW20LS
XW20LT
XW20K
XW60K
Matching Series Controllers
WPJDBPC500
CX660-000N0
XB570L-5N1C1X
XJ485CX-00000
Supporting System Accessories
NPC10IA

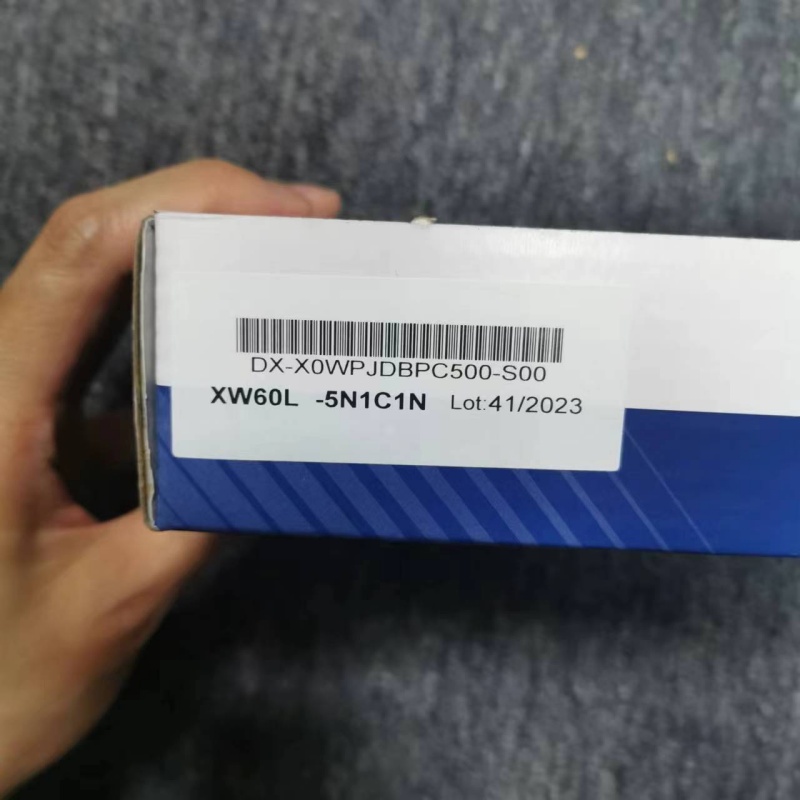

DX-X0WPJDBPC500-S00
Application Scope
The XW60L-5N1C1-N temperature controller is widely applied in commercial refrigeration equipment, including refrigerated display cabinets, vertical freezers, walk-in small cold rooms, beverage cooling cabinets, kitchen refrigerators, fresh food storage cabinets and low-temperature constant temperature storage devices.
Packaging & Shipping
- Neutral safe packaging, shockproof and drop-proof protection
- Global shipping via DHL, UPS, FedEx and sea freight options
- In stock support for fast delivery
- Wholesale, retail and mixed order are acceptable
Our Service
We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.
For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
