Overview
The XR03CX-5N0C1 is a dual-output digital refrigeration thermostat with 230V AC 50/60Hz power supply and maximum power consumption of 3.5VA. It is equipped with an NTC temperature probe to continuously collect real-time ambient temperature data and present clear digital readings on the front display screen. The multi-button panel allows users to finish temperature setpoint adjustment, parameter calibration and auxiliary function configuration simply. Two independent relay outputs separately control the refrigeration compressor and auxiliary loads to realize precise constant temperature maintenance. It supports embedded panel installation with matching fixing buckles, adopts reliable internal circuit design and wide working temperature & humidity range, delivering stable and long-lasting operation for all kinds of dual-function refrigeration equipment.
Key Features

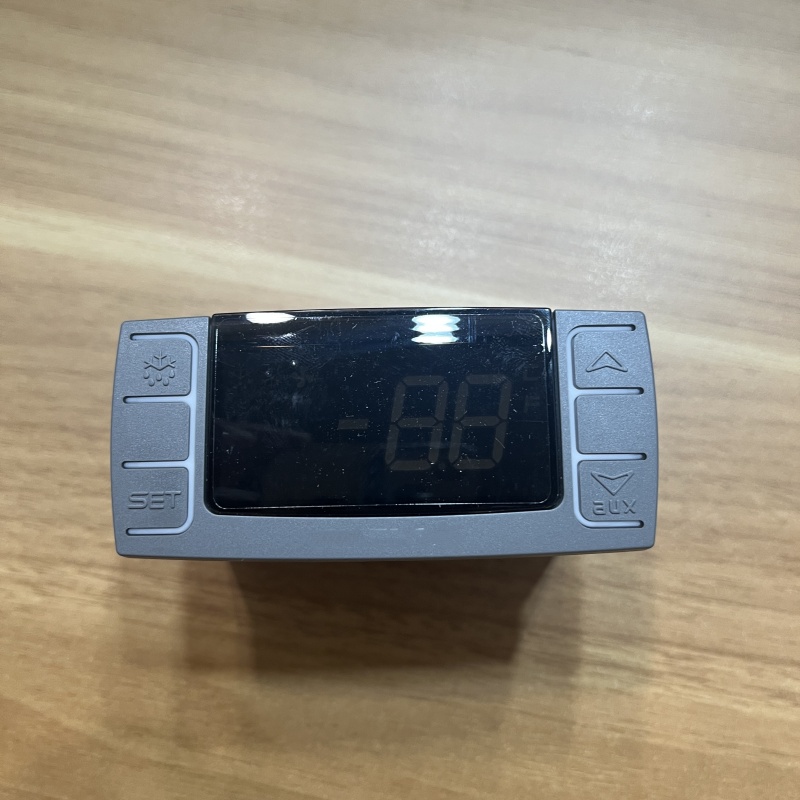

- Digital display for clear temperature reading
- Supporting standard NTC temperature sensing probe for accurate measurement
- 230V AC 50/60Hz power supply, max power consumption 3.5VA
- Dual independent relay outputs, control compressor and auxiliary equipment separately
- Multi-key operation, easy to set, modify and calibrate operating parameters

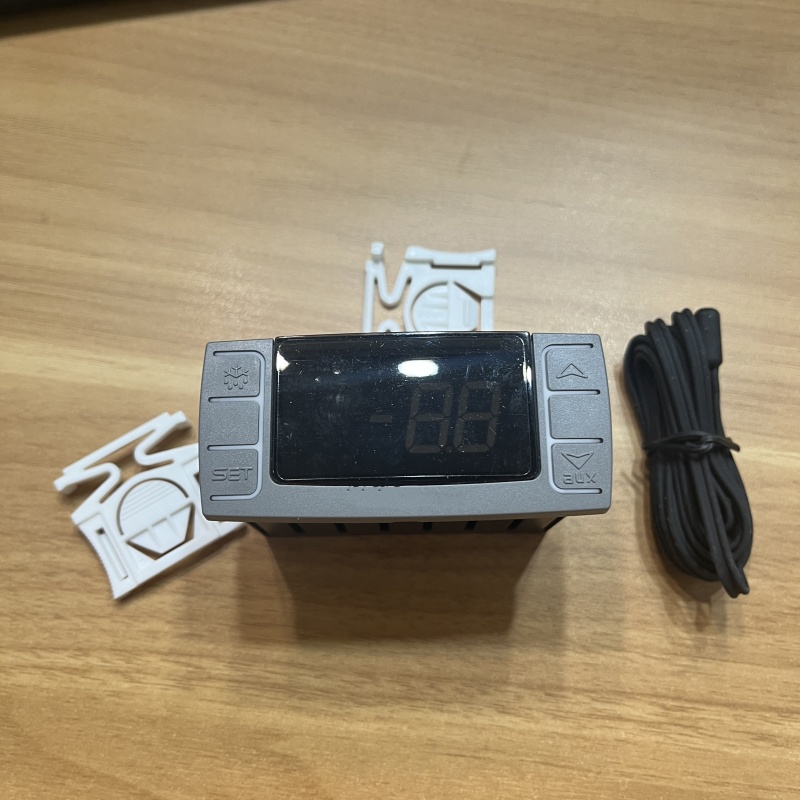

- Supplied with plastic mounting buckles for embedded panel installation
- Wide working environment range: 0℃~60℃, humidity 20%~85% RH
- Overload protection design, stable circuit for long-time continuous running
XR03CX-5N0C1 technical specifications table
| Item | Specification |
|---|---|
| Model | XR03CX-5N0C1 |
| Compatibility | NTC temperature probes, refrigeration compressors & auxiliary cooling loads |
| Working Voltage | 230 VAC 50/60Hz |
| Operating Temperature | 0 °C ~ +60 °C |
| Mounting | Panel embedded mounting with plastic fixing clips |
| Product Length | 78 mm |
| Product Width | 34 mm |
| Product Height | 85 mm |
| Product Weight | Approx. 0.13 kg |
| Country of Origin | China |
| HS code | 9032.89 |
| Shipping Length | 120 mm |
| Shipping Width | 60 mm |
| Shipping Height | 100 mm |
Same Series Display Models
XR03CX-4N0C1
XR03CX-5N0C0
XR02CX-4N1F1
XR04CX
XR06CX
Matching Series Controllers
ASC31020
ASC91988
Supporting System Accessories
LIFEBXB500
Application Scope
The model XR03CX-5N0C1 is widely applied to commercial refrigerated display cabinets, deep freezers, beverage chillers, catering refrigeration equipment, supermarket cold storage and other refrigeration units that require both compressor and auxiliary circuit temperature control.
Packaging & Shipping
- Neutral safe packaging, shockproof and drop-proof protection
- Global shipping via DHL, UPS, FedEx and sea freight options
- In stock support for fast delivery
- Wholesale, retail and mixed order are acceptable
