XR02CX-4N1F1 Digital Refrigeration Thermostat with NTC Probe

Name: XR02CX-4N1F1 Digital Refrigeration Thermostat with NTC Probe
SKU: XR02CX-4N1F1
Availability: InStock

Original price was: $30.00.Current price is: $25.00.

XR02CX-4N1F1 is a compact electronic cooling thermostat with NTC temperature sensor. It realizes automatic compressor temperature control via simple button setup, with digital temperature readout, 120V power supply and full mounting accessories, widely used for fridge and freezer temperature regulation.

Availability: In stock

SKU: XR02CX-4N1F1 Categories: Refrigeration Spare Parts, Temperature Controllers Tags: Compressor Controller, Cooling Thermostat, Digital Thermostat, Fridge Thermostat, NTC Temp Regulator, Temp Controller, XR02CX-4N1F1

Overview

The XR02CX-4N1F1 is a single-stage digital refrigeration temperature controller designed for cooling equipment, powered by 120V AC 50/60Hz with a maximum power consumption of 3.5VA. It is equipped with an NTC temperature probe to real-time monitor ambient temperature, featuring a clear digital display to show temperature values intuitively. This thermostat supports compressor automatic start-stop control to stabilize operating temperature, comes with complete installation accessories including fixing clips, and offers simple button operations for parameter setting, temperature calibration and auxiliary function adjustment. With wide working temperature and humidity tolerance, stable relay output and overvoltage protection design, it delivers reliable long-term operation for various commercial cooling devices.

Key Features

Digital LED display, real-time temperature value display
Equipped with matched NTC temperature sensing probe
Single-stage relay output for compressor automatic control
Multi-button design for easy parameter setting and calibration

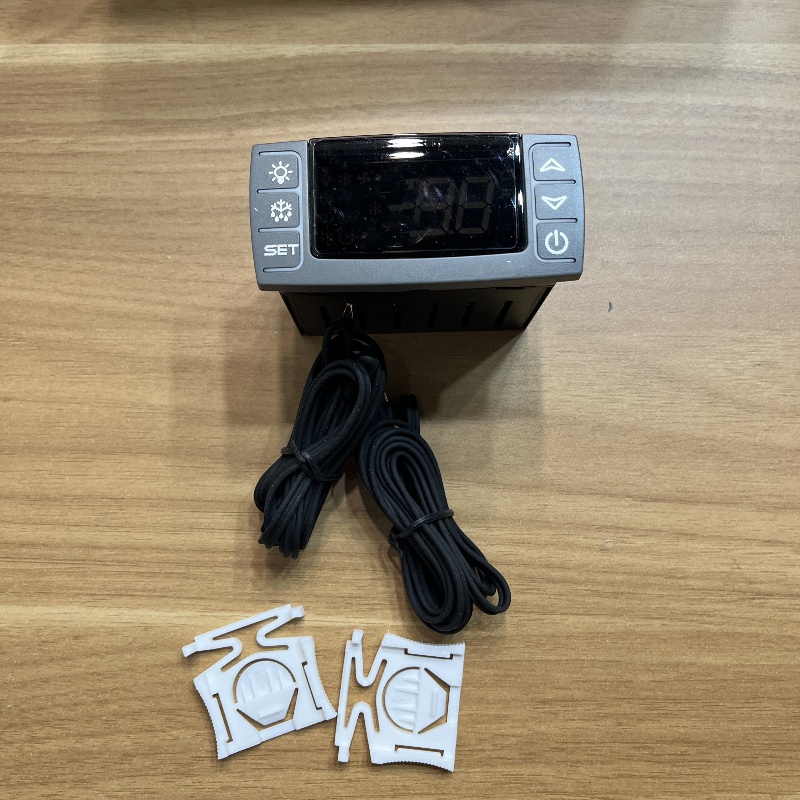

Complete mounting buckles for embedded panel installation
Wide working environment range, stable performance
Auxiliary function adjustment interface for customized operation
120V AC 50/60Hz power input, max 3.5VA power

XR02CX-4N1F1 technical specifications table

Item	Specification
Model	XR02CX-4N1F1
Compatibility	NTC temperature sensing probes, single-stage refrigeration compressors
Working Voltage	120V AC 50/60Hz
Operating Temperature	0℃ ~ +60℃
Mounting	Panel embedded mounting with plastic fixing clips
Product Length	78 mm
Product Width	34 mm
Product Height	85 mm
Product Weight	Approx. 0.12 kg
Country of Origin	China
HS code	903289
Shipping Length	120 mm
Shipping Width	60 mm
Shipping Height	100 mm

Same Series Display Models

XR02CX-4N0F1

XR02CX-5N0C0

XR02CX-5N0C1

XR03CX

XR04CX

XR06CX

XR20CX

XR30CX

XR40CX

XR60CX

Matching Series Controllers

ASC31020

ASC91988

Supporting System Accessories

LIDCEXB400

Application Scope

Applicable equipment matched with XR02CX-4N1F1: commercial refrigerators, display freezers, beverage coolers, small cold storage cabinets, catering refrigeration equipment and other single-compressor cooling devices, suitable for refrigeration temperature monitoring and constant temperature control scenarios.

Packaging & Shipping

Neutral safe packaging, shockproof and drop-proof protection
Global shipping via DHL, UPS, FedEx and sea freight options
In stock support for fast delivery
Wholesale, retail and mixed order are acceptable
