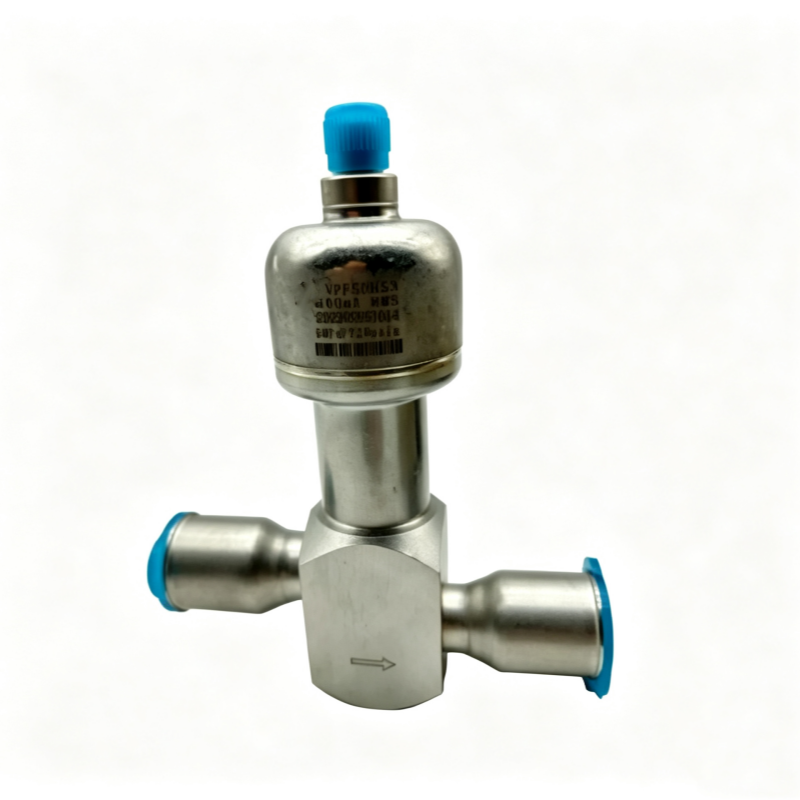

Bare straight expansion valve with clear parameters and flow arrow, compact for direct pipeline mounting.

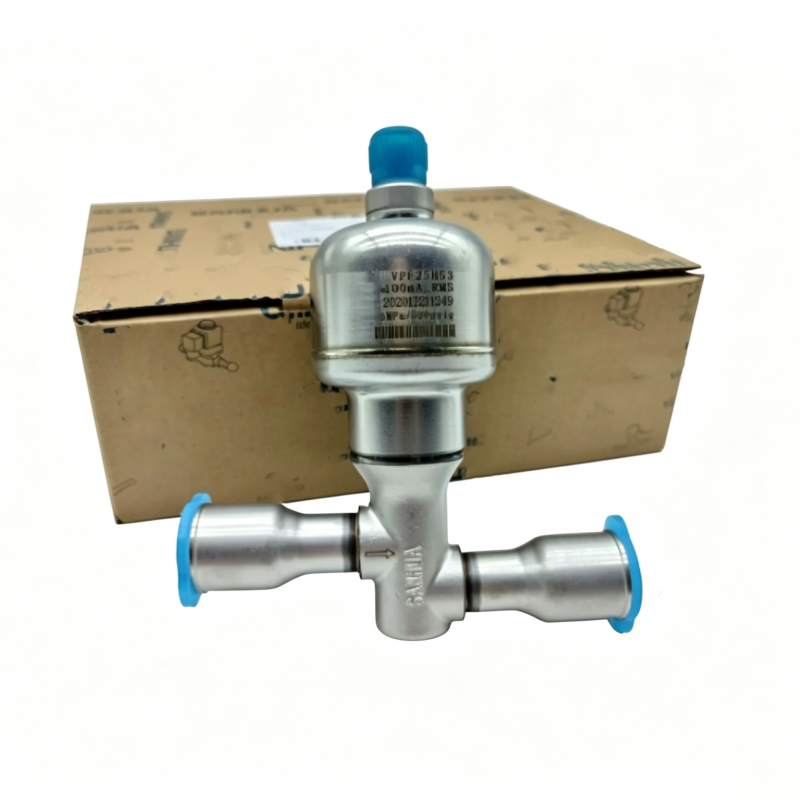

Straight expansion valve with outer carton, standard welding ports for air conditioner installation.

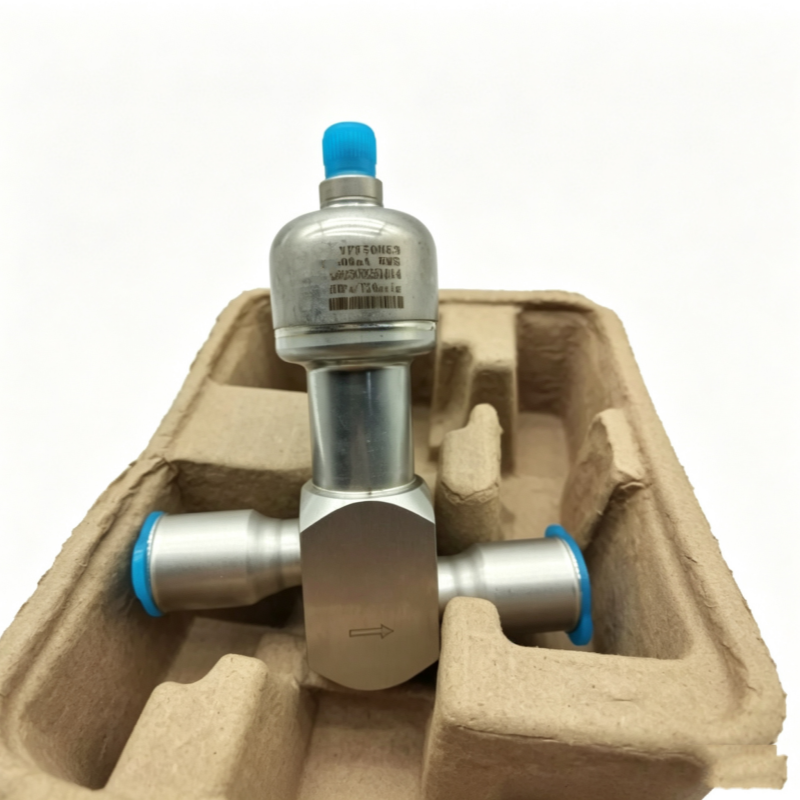

Valve placed in molded paper tray, thick pressure-resistant shell for commercial refrigeration units.

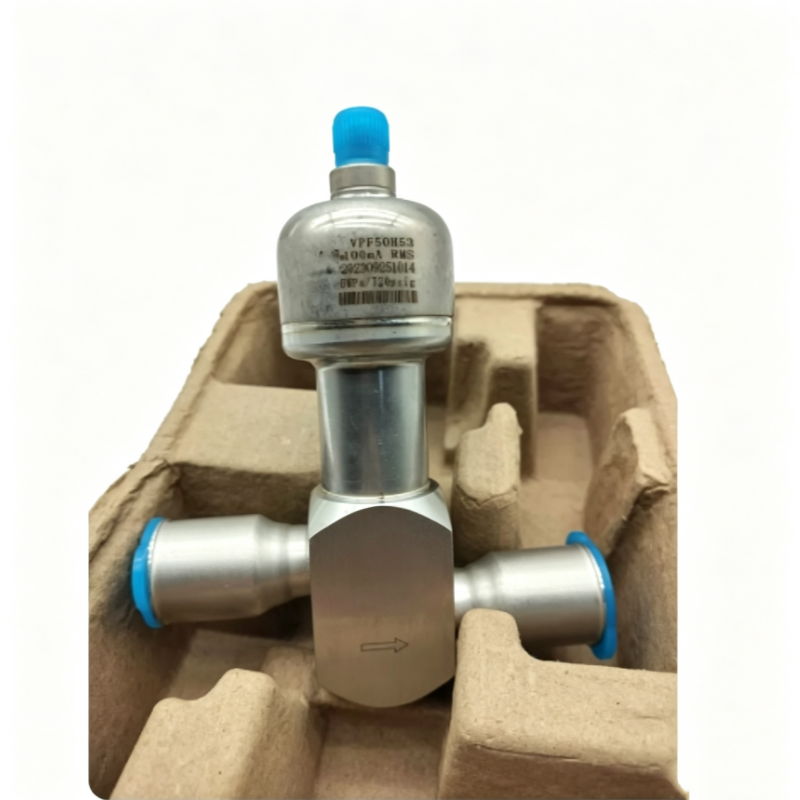

Valve with protective paper liner, stable internal throttling structure for constant-temperature equipment.

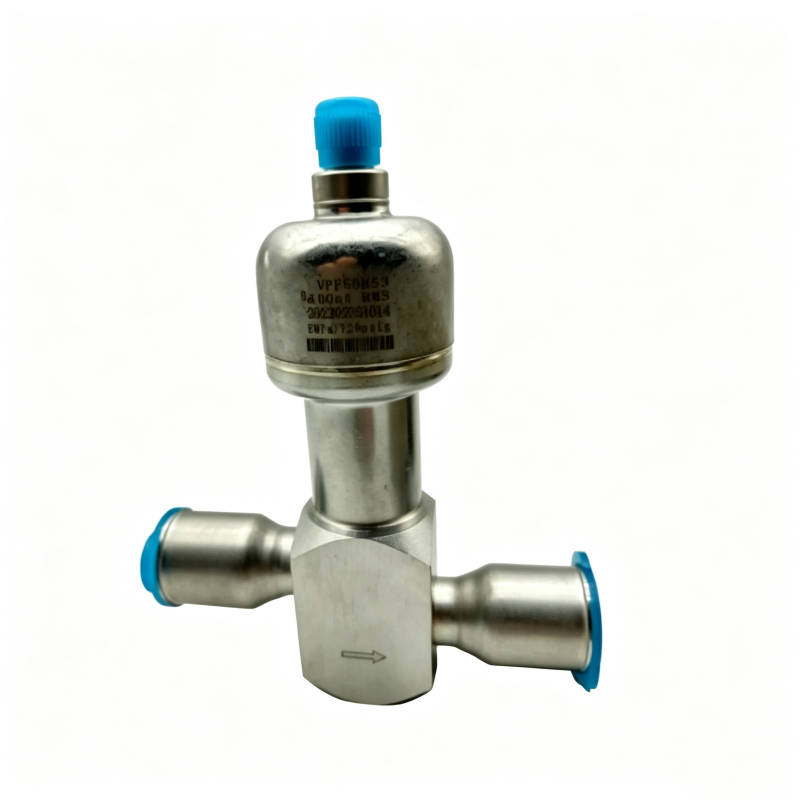

Minimalist bare valve, optimized flow resistance, compatible with R32, R410A and common refrigerants.

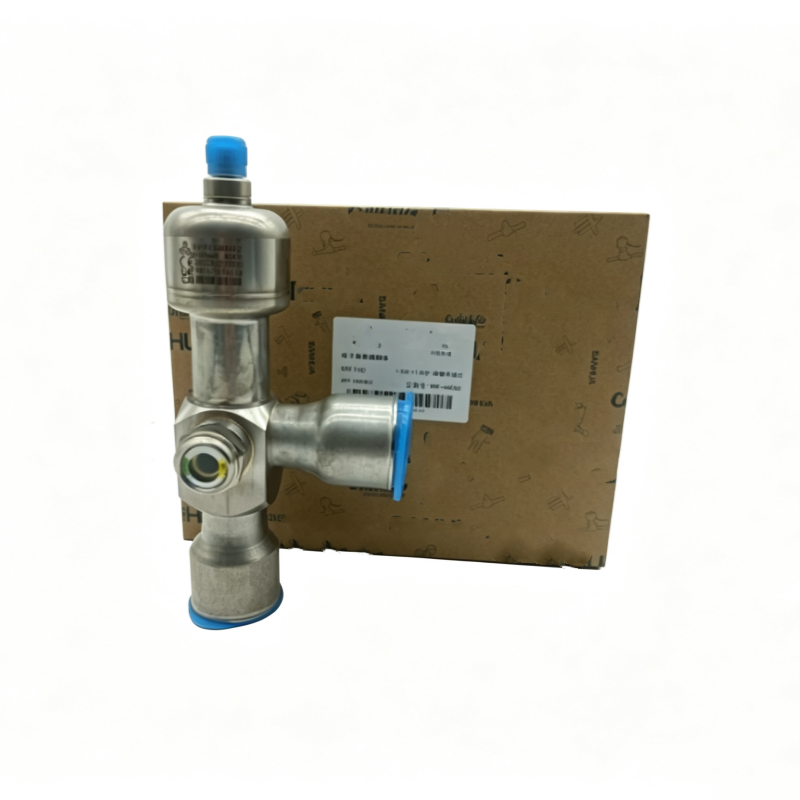

3-way valve with sight glass for refrigerant observation, matched packaging for multi-pipe systems. Picture 7

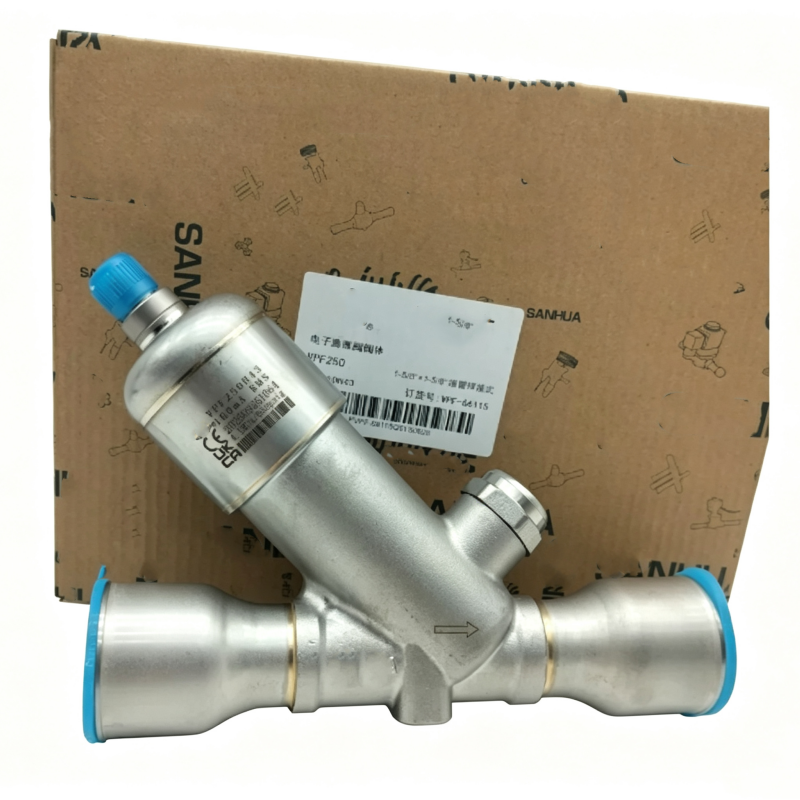

Y-type angled expansion valve, low flow resistance, sensitive regulation for household heat pumps.

Fast Shipping

1-Year Warranty

100% Genuine Parts

Expansion Valves, Other Refrideration Accessories, Refrigeration Spare Parts

VPF100H03 Sight Glass Bidirectional Refrigerant Control Valve

Name: VPF100H03 Sight Glass Bidirectional Refrigerant Control Valve
SKU: VPF100H03
Availability: InStock

Original price was: $230.00.Current price is: $212.00.

VPF100H03 is a large-flow sight-glass electronic expansion valve, using stepper motor to control refrigerant flow for large HVAC and industrial refrigeration devices.

Availability: In stock

SKU: VPF100H03 Categories: Expansion Valves, Other Refrideration Accessories, Refrigeration Spare Parts Tags: bidirectional stepper expansion valve, Electronic expansion valve, heat pump electronic expansion valve, HVAC Refrigerant Control Valve, industrial refrigeration flow regulator, VPF100H03

Overview

VPF100H03 is a large-flow high-precision bidirectional stepping electronic expansion valve designed for large commercial HVAC, high-power reversible heat pumps and industrial low-temperature refrigeration equipment. As the core automatic flow control component of large-scale HVAC systems, it adopts two-phase four-wire permanent magnet stepping structure with 3500 full opening steps, which can continuously and stably adjust large refrigerant flow in real time, accurately stabilize evaporator superheat, optimize the overall operation efficiency of refrigeration units and reduce energy consumption significantly. It is compatible with mainstream HCFC, HFC, HFO refrigerants such as R410A, R134a, R407C, R404A, adopts 1-3/8″×1-3/8″ straight ODF welding interface, supports horizontal and vertical pipeline installation, and built-in sight glass to observe refrigerant running state in real time, with excellent bidirectional flow balance performance suitable for large reversible heat pump systems.

Key Features

3500 full opening steps, ultra-high regulation precision for large-flow refrigerant control
Built-in sight glass, real-time visual inspection of refrigerant liquid state
Bidirectional equal flow design, stable heating & cooling working performance
Standard 12VDC stepping drive, high compatibility with mainstream valve drivers
Thickened stainless steel valve body, corrosion resistance and long service life
Wide temperature range (-40℃~+90℃), stable operation under harsh industrial conditions
ODF straight welding port, simple and reliable pipeline assembly

VPF100H03 technical specifications table

Item	Details
Model	VPF100H03
Compatibility	R410A、R134a、R407C、R404A、R507A、R1234ze HFC/HFO/HCFC
Working Voltage	12VDC rectangular wave, two-phase four-step permanent magnet stepping drive
Operating Temperature	Ambient:-40℃~+60℃；Refrigerant medium:-40℃~+90℃
Mounting	Horizontal & vertical pipeline installation, 1-3/8″×1-3/8″ ODF straight solder connection
Product Length	146mm
Product Width	72mm
Product Height	70mm
Product Weight	0.65kg
Country of Origin	China
HS code	8481804090
Shipping Length	170mm
Shipping Width	85mm
Shipping Height	83mm

Same Series Display Models

VPF12.5H01

VPF12.5H03

VPF12.5H52

VPF12.5H53

VPF12.5H58

VPF12.5H59

VPF25H03

VPF25H52

VPF25H53

VPF25H58

VPF25H59

VPF50H01

VPF50H52

VPF50H53

VPF50H58

VPF100H02

VPF100H03

VPF100H05

VPF100H06

VPF150H02

VPF150H03

VPF175H03

VPF175H82

VPF175H83

VPF250H02

VPF250H03

VPF250H04

VPF250H05

VPF400H02

VPF400H03

VPF240H03

Matching Series Controllers

VSD1002

VSD2001

SEC611

SEC612

Supporting System Accessories

VPC01

VPC02

VPC03Q0116C

EXV-Coil-52Ω

Manual Valve Opening Magnetic Ring

SEC-H01

SHT01

SPT02

Y02A

Y08A

Seal-KIT-VPF100

Application Scope

Model VPF100H03 is widely applied in large commercial central air conditioning units, high-power air-source heat pumps, low-temperature industrial refrigeration machines, large cold storage systems, supermarket central fresh-keeping equipment, heat recovery units, and all large-capacity HVAC refrigeration systems requiring stable bidirectional refrigerant circulation regulation.
