Overview

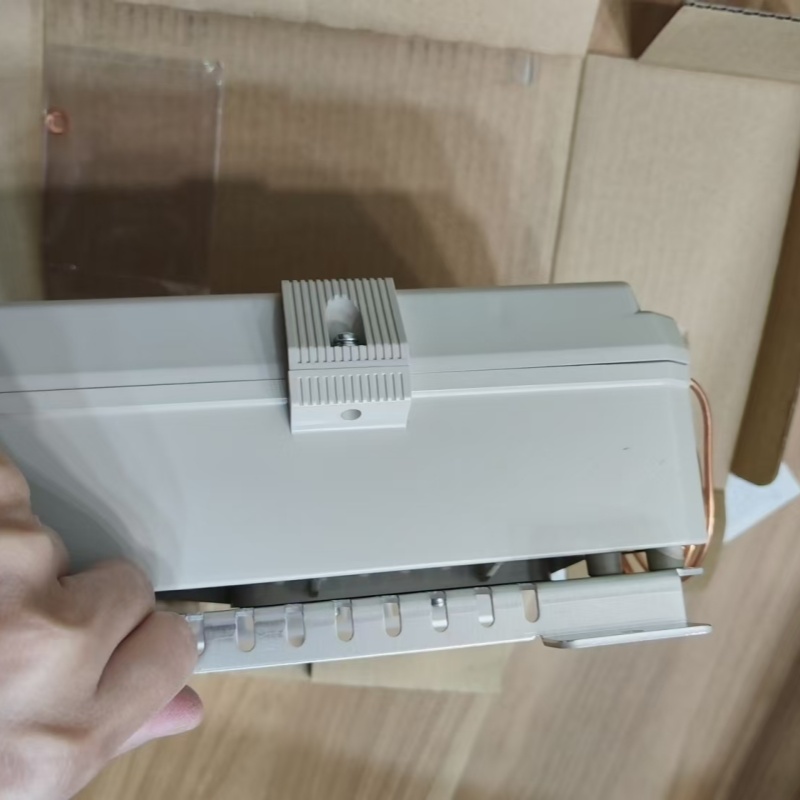

The RGE-X3R4-7 is a three-phase capillary-type condenser fan speed controller designed for industrial refrigeration condensing units, compatible with 380 to 415V three-phase power supply, rated current 5A and supporting 50/60Hz dual frequency. It relies on copper capillary tubes to real-time sense system condensing pressure and automatically adjust the operating speed of three-phase cooling fans, which effectively stabilizes system pressure fluctuations caused by ambient temperature changes, cuts energy consumption and reduces compressor load. Equipped with a large metal heat dissipation mounting base and integrated fixing brackets, the sealed plastic housing provides reliable dust and moisture resistance. Adopting pure mechanical pressure adjustment structure, this unit features stable operation, low failure rate and convenient on-site calibration and maintenance, suitable for heavy-duty refrigeration and HVAC cooling systems.
Key Features
- Three-phase 380~415V wide voltage design, rated load 5A, fit industrial high-power fans

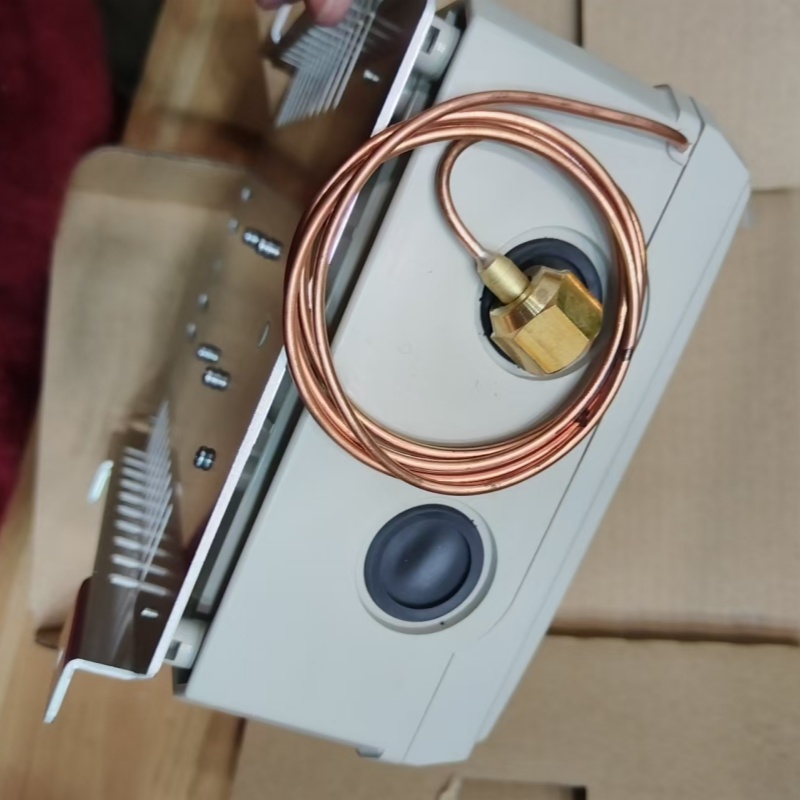

- Copper capillary pressure sensing tube, real-time tracking condensing pressure changes
- Automatically adjust fan speed to stabilize system pressure and save operating power

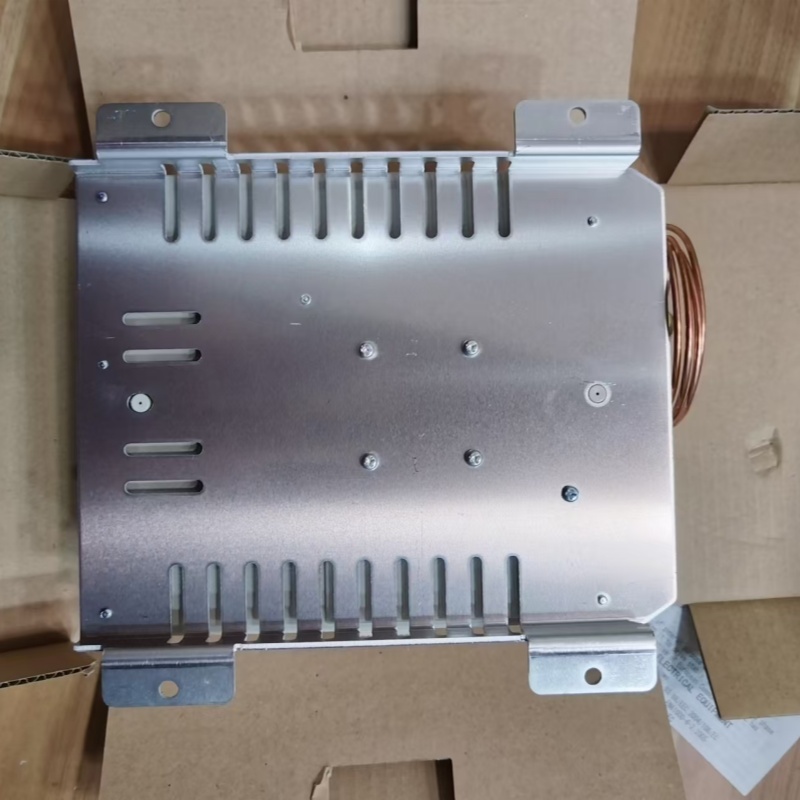

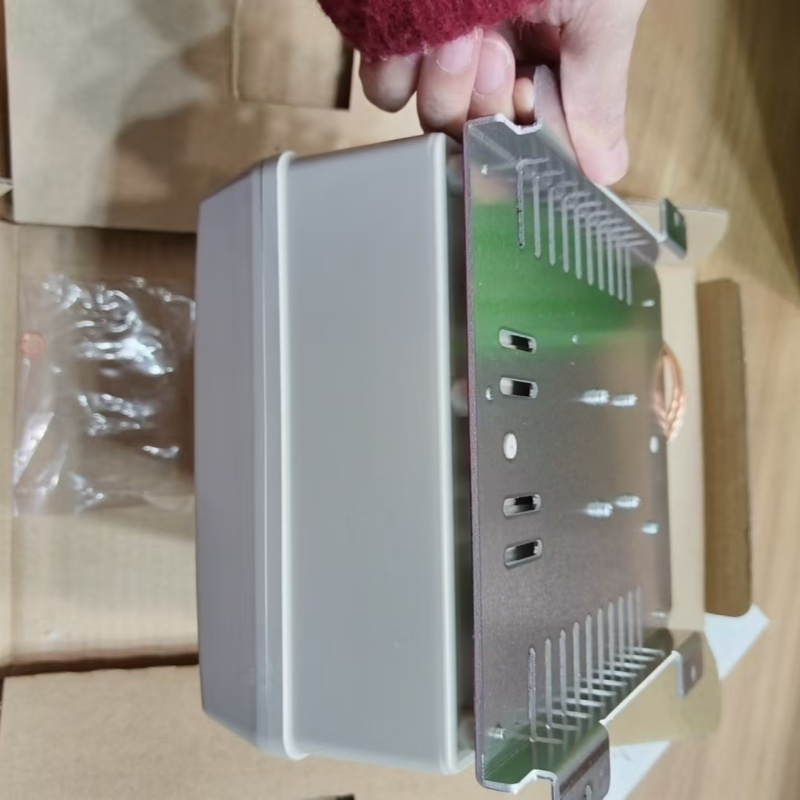

- Large metal heat dissipation backplate with multi-position mounting holes for easy installation
- Brass pressure connecting joint, good tightness for refrigeration pipeline connection
- Fully enclosed waterproof and dustproof plastic casing, adapt to harsh machine room environment
- Pure mechanical adjustment structure, simple structure, low failure rate and easy maintenance
- Support both 50Hz and 60Hz power frequency, universal for global refrigeration equipment
RGE-X3R4-7 technical specifications table
| Parameter | Specification |
|---|---|
| Model | RGE-X3R4-7 |
| Compatibility | Three-phase air-cooled condenser fan, industrial refrigeration condensing unit |

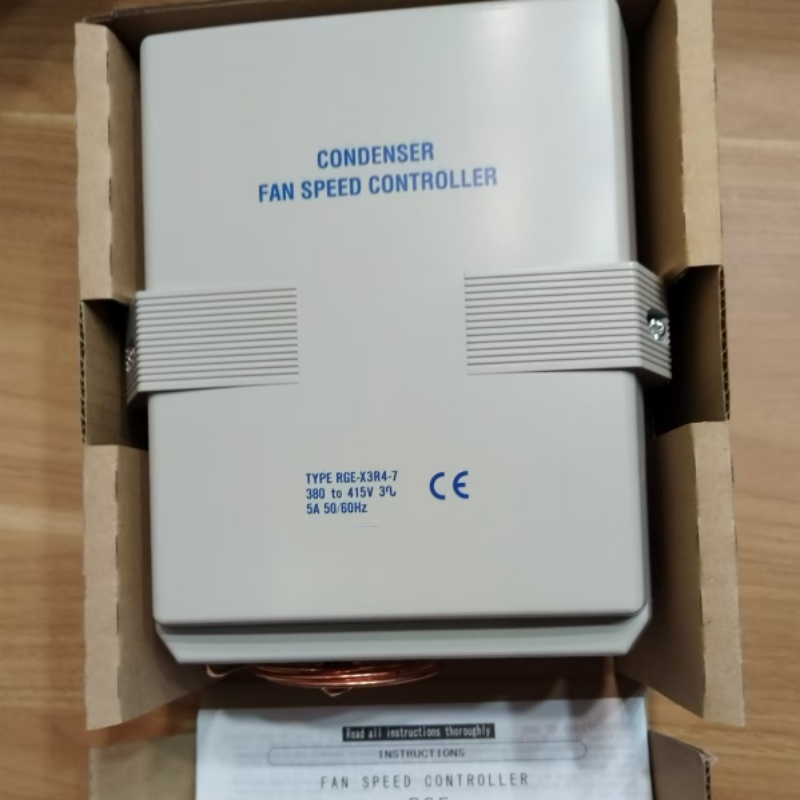

| Working Voltage | 380 to 415V 3Ph, 5A, 50/60Hz |
| Operating Temperature | -20 °C ~ +60 °C |
| Mounting | Metal heat dissipation bracket fixed installation |
| Product Length | 160 mm |
| Product Width | 110 mm |
| Product Height | 72 mm |
| Product Weight | Approx. 0.35 kg |
| Country of Origin | Japan |
| HS code | 9032.89.6085 |
| Shipping Length | 190 mm |
| Shipping Width | 130 mm |
| Shipping Height | 90 mm |
Same Series Display Models
RGE-X3R4-6
RGE-X3R4-8
RGE-X1R4-7
RGE-X3R6-7
RGE-X2R4-7
Matching Series Controllers
NPC10IA
E2V24BS
SC-B103
Supporting System Accessories
3737890
TP-10
CP-15
Application Scope
Applicable equipment for RGE-X3R4-7:Large commercial cold storage condensing units, industrial low-temperature refrigeration units, three-phase air-cooled compressors, factory cooling circulating systems, large supermarket freezer units, heat pump industrial cooling equipment, constant temperature workshop refrigeration systems and other three-phase heavy-duty refrigeration condensing equipment.
Packaging & Shipping
- Neutral safe packaging, shockproof and drop-proof protection
- Global shipping via DHL, UPS, FedEx and sea freight options
- In stock support for fast delivery
- Wholesale, retail and mixed order are acceptable
Our Service
We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.
For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
