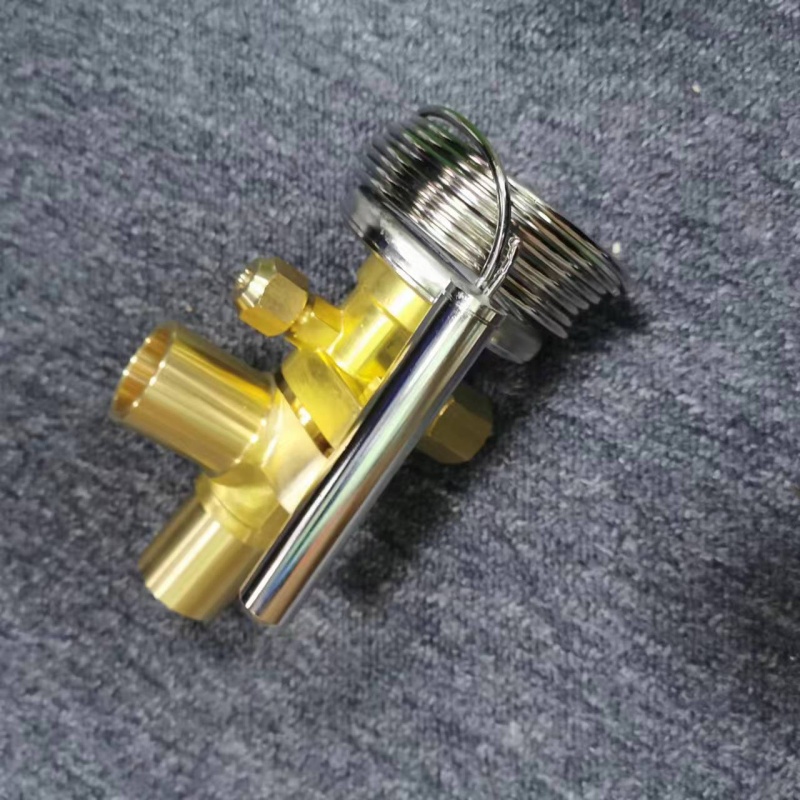

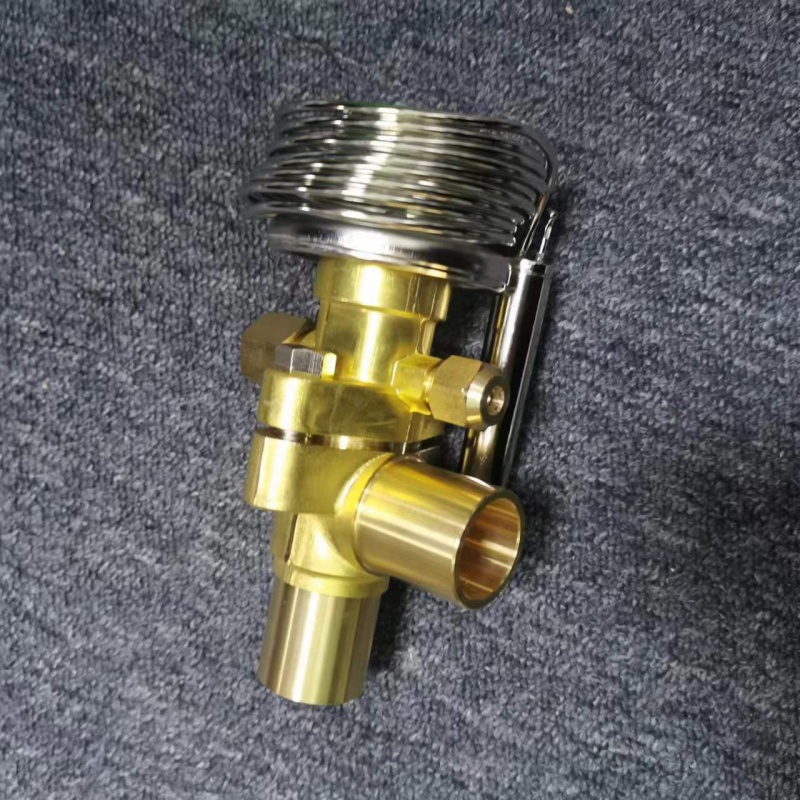

HVAC ATX-12420DUS 47.9T Refrigeration Expansion Valve

          The ATX-12420DUS thermostatic expansion valve is a core throttling component specially designed for HVAC and commercial refrigeration systems, exclusively matched with R404A refrigerant and rated for 47.9 tons cooling capacity with S-type power head charge. It adopts solid anti-corrosion brass valve body and stainless steel coiled capillary sensing power head, built-in external equalizer to maintain stable superheat adjustment. It delivers precise refrigerant flow control under unstable evaporator pressure, boosting energy efficiency and long-term running stability for medium-low temperature cold storage, commercial freezer, industrial chiller and all types of industrial HVAC cooling equipment.

• Matches R404A refrigerant, rated cooling capacity of 47.9 tons
• S-type power head charge for stable performance under low temperature working conditions

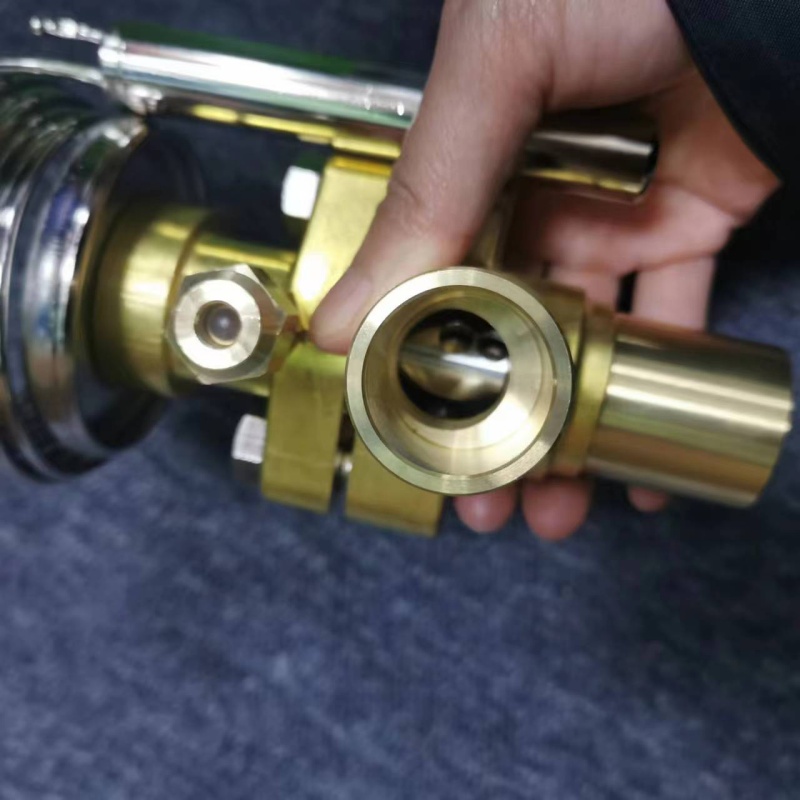

• Integrated solid brass valve body, corrosion resistant and long service life

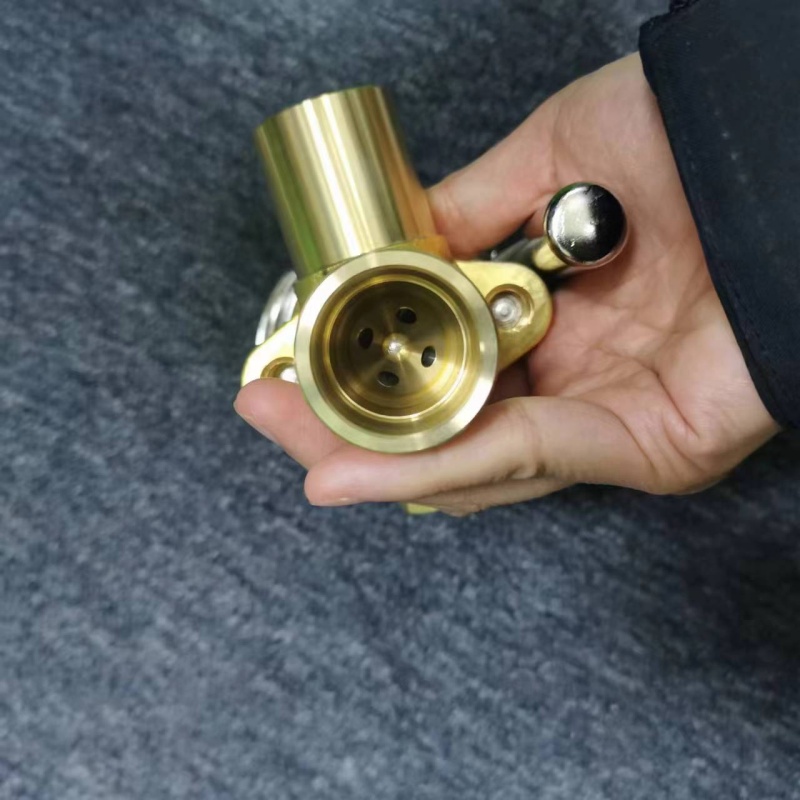

• 1×1 solder inlet and outlet ports for easy field welding installation
• Built-in external equalizer for accurate refrigerant flow control
• Stainless steel coiled capillary power head with fast temperature sensing response
• Wide compatibility with HVAC, cold storage and industrial chiller refrigeration systems

Item	Parameter
Model	ATX-12420DUS
Refrigerant	R404A
Rated Cooling Capacity	47.9 T
Charge Type	S Charge
Connection Spec	1 × 1 solder port
Equalizer Type	Built-in external equalizer
Valve Body Material	Solid brass
Sensing Component	Stainless steel capillary power head
M.P.	28 °C
S.S.H	5 °C
Product Weight	Approx. 1.02 kg
Country of Origin	Japan
HS code	84189990
Product Length	138 mm
Product Width	90 mm
Product Height	78 mm
Shipping Length	170 mm
Shipping Width	115 mm
Shipping Height	95 mm

ATX-12420DUS





ATX-12330DUS





ATX-12420DHS





ATX-12420DHG





ATX-12220DUS





ATX-71110DUS





ATX-57080DUS

3008402





ATX-S





ATX-124

---

Application Scope



      Model ATX-12420DUS expansion valve fits medium and low temperature cold storage, commercial display freezers, water chillers, heat pump cooling units and all commercial HVAC refrigeration systems running R404A refrigerant, compatible with medium and large displacement refrigeration compressors for food cold chain logistics, fresh-keeping warehouses and industrial cooling processing equipment.
