External Balanced Expansion Valve Model ATX-71110DHS for Refrigeration

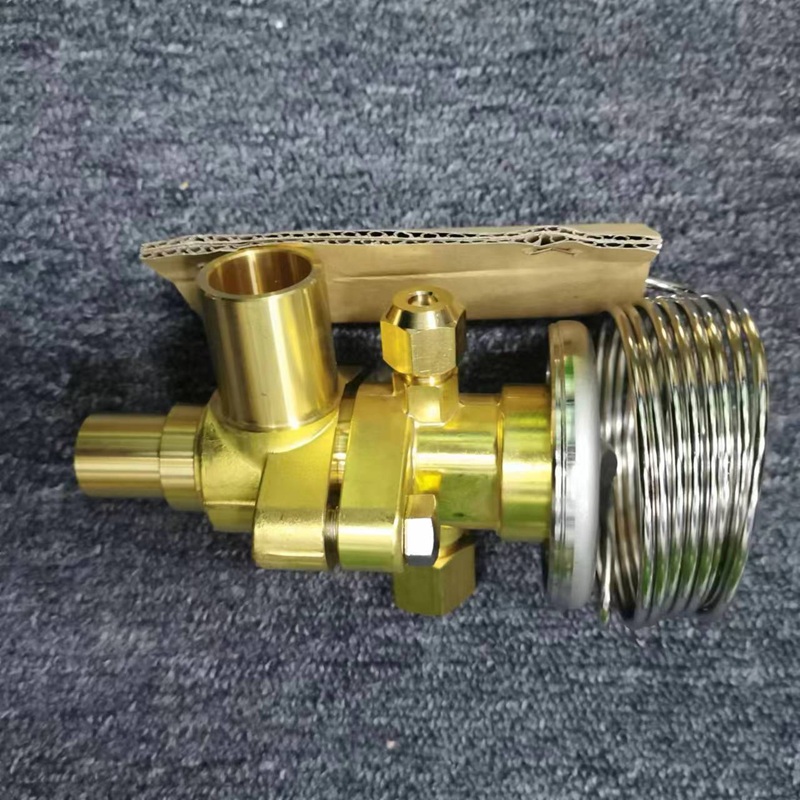

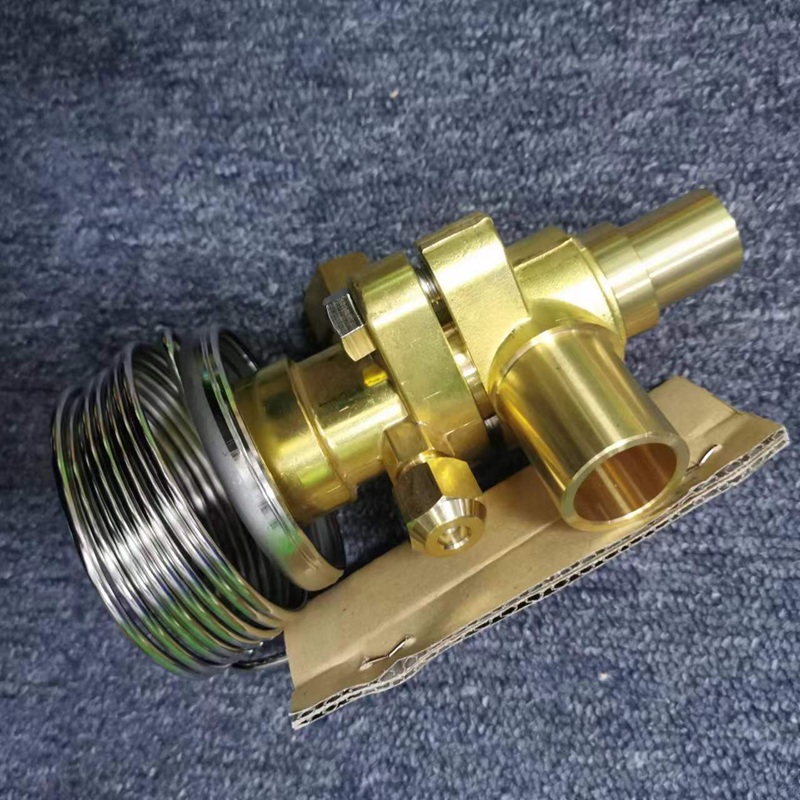

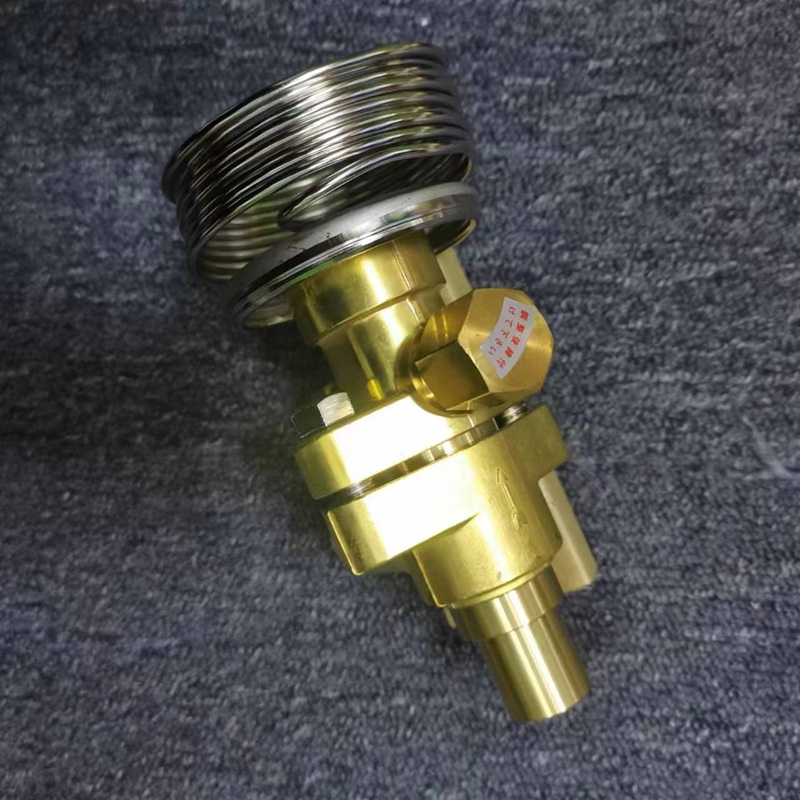

      This thermal expansion valve is a core throttling component widely applied in HVAC and industrial refrigeration systems, model ATX-71110DHS, compatible with R22 refrigerant with a cooling capacity of 17.8 tons. It adopts external balance structure with S-type power head charging, preset 5℃ superheat, and matched 5/8×7/8 pipeline connections. As the vital flow control part of refrigeration circulation, it precisely regulates refrigerant flow by sensing evaporator outlet temperature, balances system pressure difference, stabilizes evaporator heat exchange efficiency, effectively prevents liquid refrigerant backflow to the compressor, and ensures stable, safe and energy-efficient operation of the whole HVAC refrigeration system. The all-copper valve body with fine machining delivers excellent pressure resistance and sealing performance, adapting to long-duration continuous operation of commercial and industrial HVAC equipment under variable load conditions.

• External balance structure, stable performance under long pipeline & large pressure drop conditions

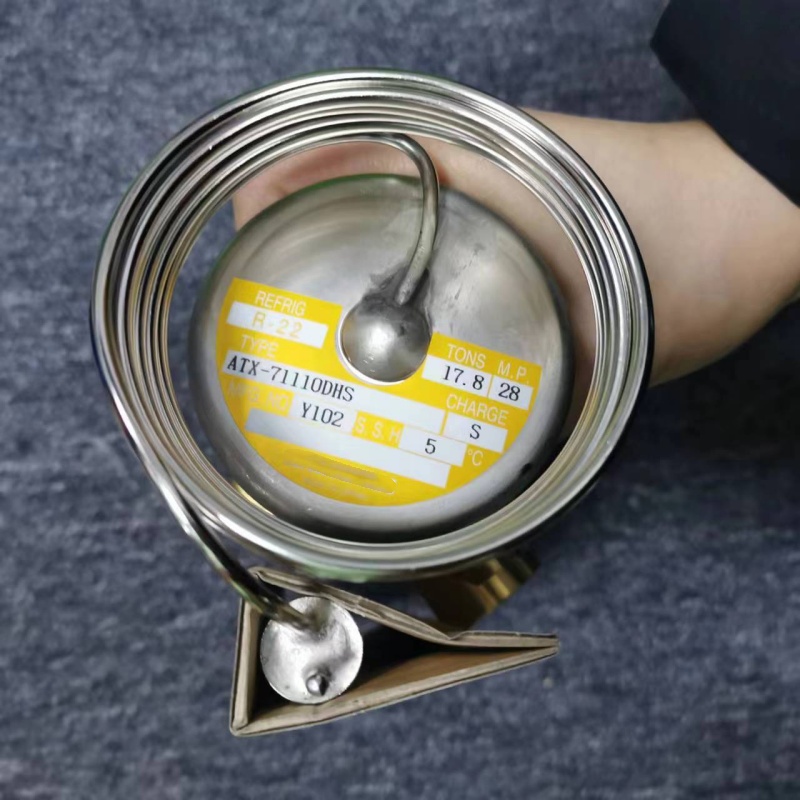

• S-type power head charging, factory pre-set 5℃ superheat, convenient on-site installation
• 17.8 ton rated cooling capacity, perfect matching R22 refrigerant system

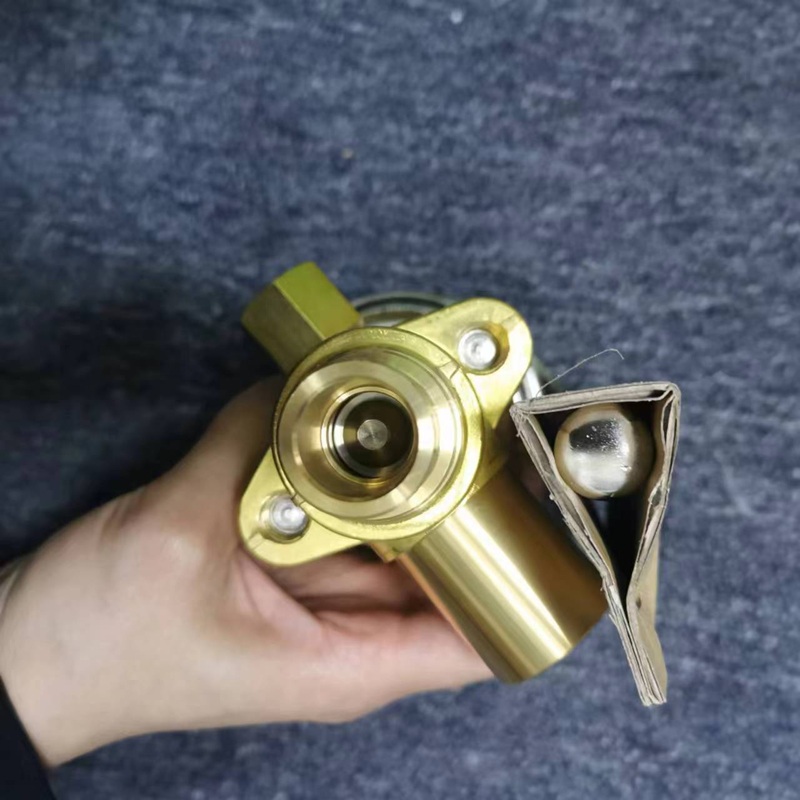

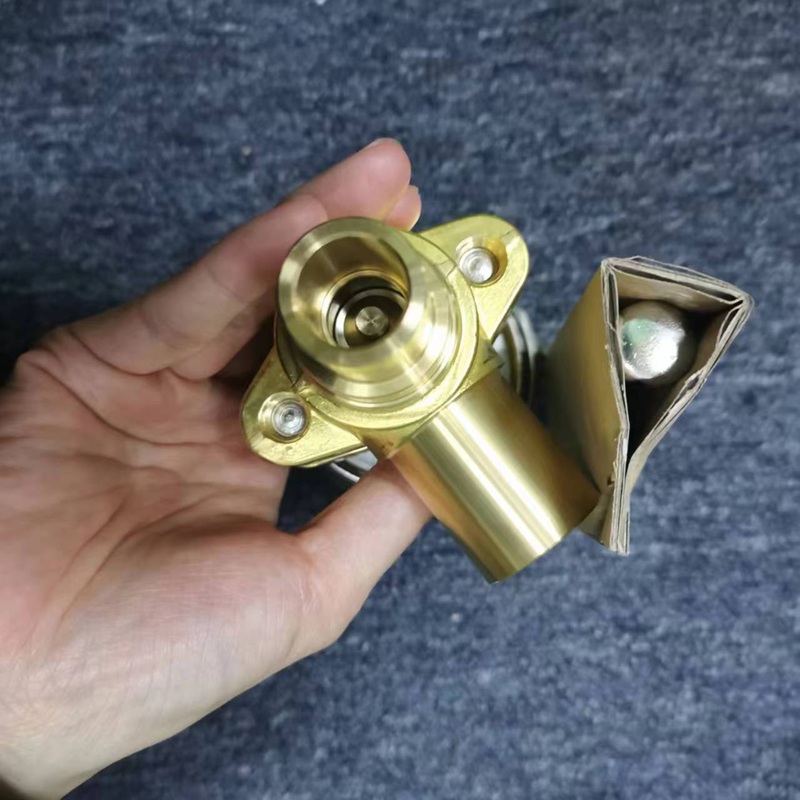

• Integral brass valve body, high pressure resistance, corrosion resistance and reliable sealing
• Standard 5/8×7/8 pipeline connector, easy piping assembly
• Sensitive temperature sensing capillary, rapid response to evaporator load changes
• Effectively avoids liquid slugging, extends compressor service life
• Compact integrated structure, convenient maintenance and replacement

Parameter	Specification

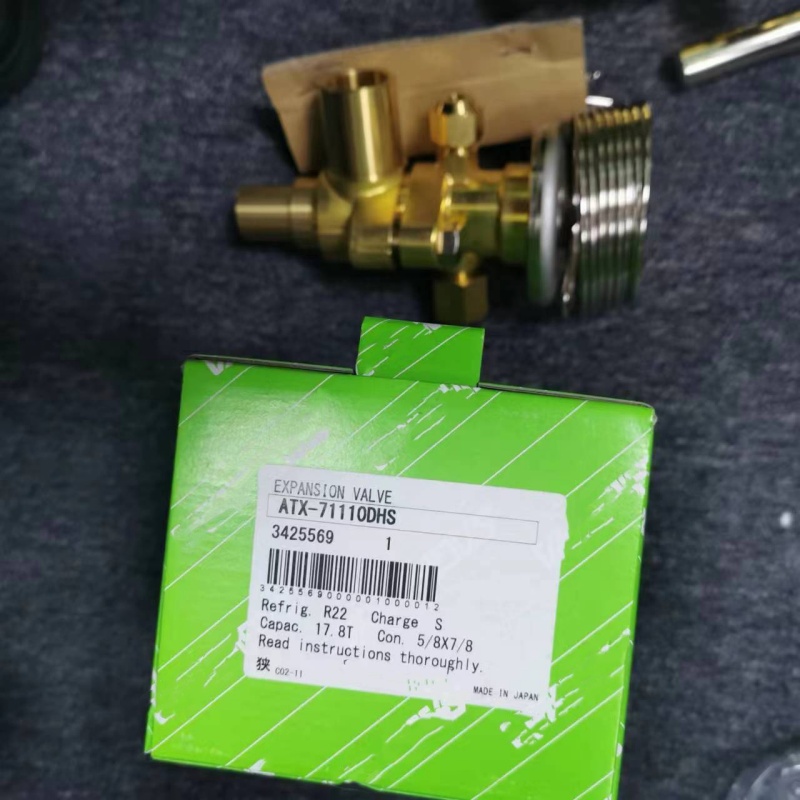

Model	ATX-71110DHS
Compatibility	R22 refrigerant, 17.8 ton cooling capacity
Working Voltage	N/A (mechanical type)
Operating Temperature	-40 °C ~ +60 °C
Mounting	Pipeline fixed installation
Product Length	145 mm
Product Width	82 mm
Product Height	76 mm
Product Weight	Approx. 0.45 kg
Country of Origin	Japan
HS code	84186190
Shipping Length	190 mm
Shipping Width	110 mm
Shipping Height	95 mm

ATX-71110DHG





ATX-71110DHL





ATX-71110DUS





ATX-71160DUS





ATX-12330DHS





ATX-34023DHG





ATX-34035DUS





ATX-57060DUS

SNS-C106X





YQ-1000





FK-1000





SV-1004





RL-166





AEX-1234





WPX-3405BHC

      Model ATX-71110DHS thermal expansion valve is compatible with equipment adopting R22 refrigerant, widely applicable to commercial central air conditioners, rooftop air conditioning units, medium and large cold storage, refrigerated display freezers, industrial constant temperature and humidity equipment, process cooling machines, air-cooled and water-cooled chillers, heat pump units as well as refrigeration circulation systems for food processing machinery.

     We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.

For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
