Overview
CR06CX-5N0C1 is a multifunctional digital refrigeration temperature controller equipped with an NTC temperature probe, designed for cooling and refrigeration equipment. It adopts a 12-terminal wiring structure, which can independently control the operation of compressor, cooling fan and defrost module. With a rated working voltage of 230V and maximum power consumption of 3.5VA, the working ambient temperature ranges from 0℃ to 60℃, and the applicable relative humidity is 20% to 85%. The front panel is equipped with digital display and physical operation buttons, supporting temperature setting, parameter modification and equipment manual control. Built-in V2.8 version control program, it has stable temperature sensing and output switching performance, effectively maintaining the constant temperature of refrigeration equipment and realizing automatic cooling and periodic defrost cycles.
Key Features

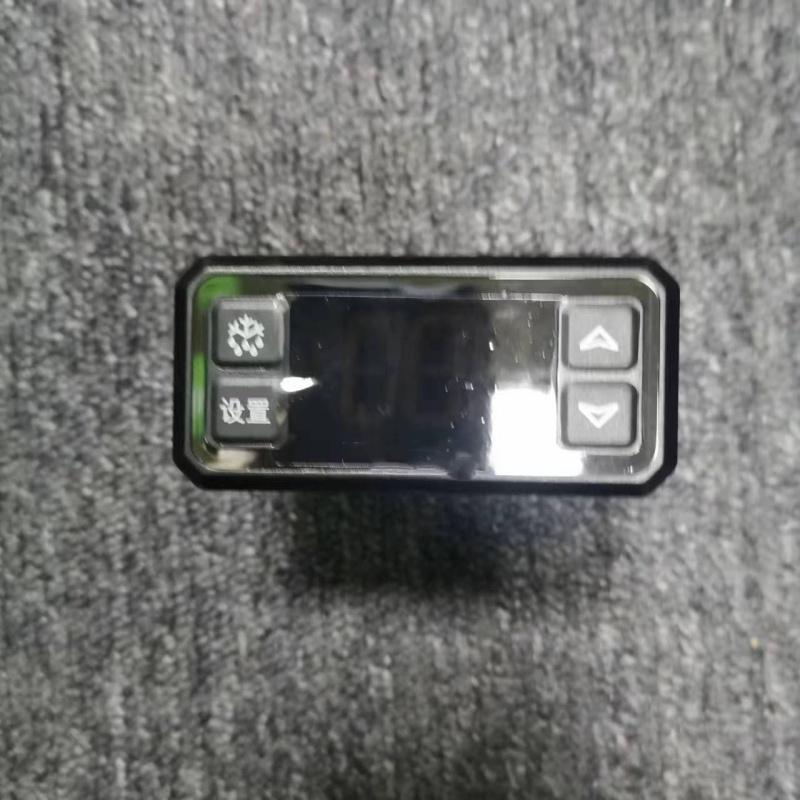

- Digital temperature display & physical setting buttons
- Match NTC temperature sensing probe, high temperature measurement accuracy
- Three independent output control: compressor, cooling fan, defrost

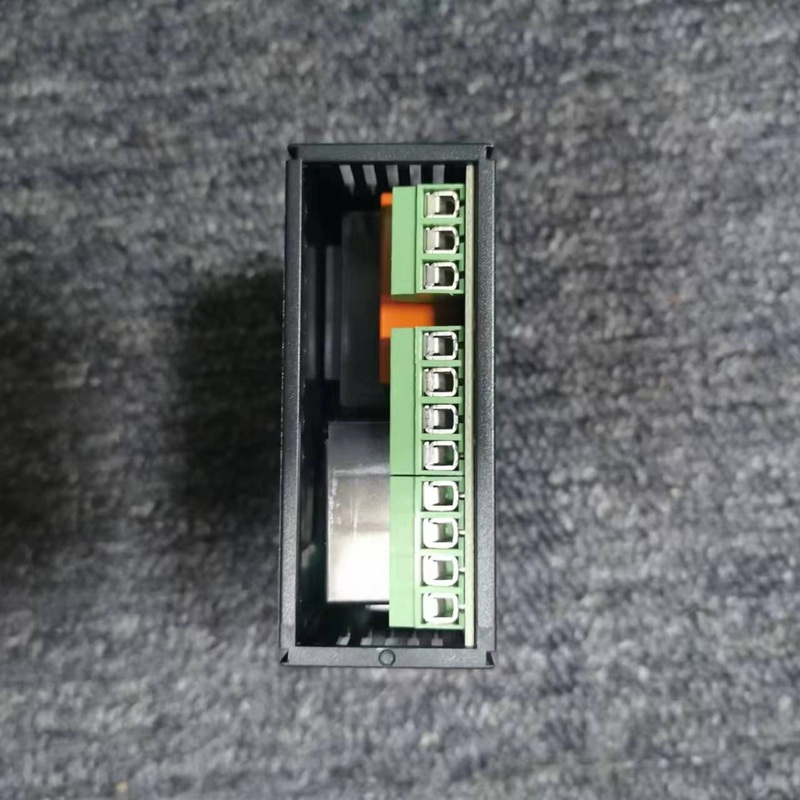

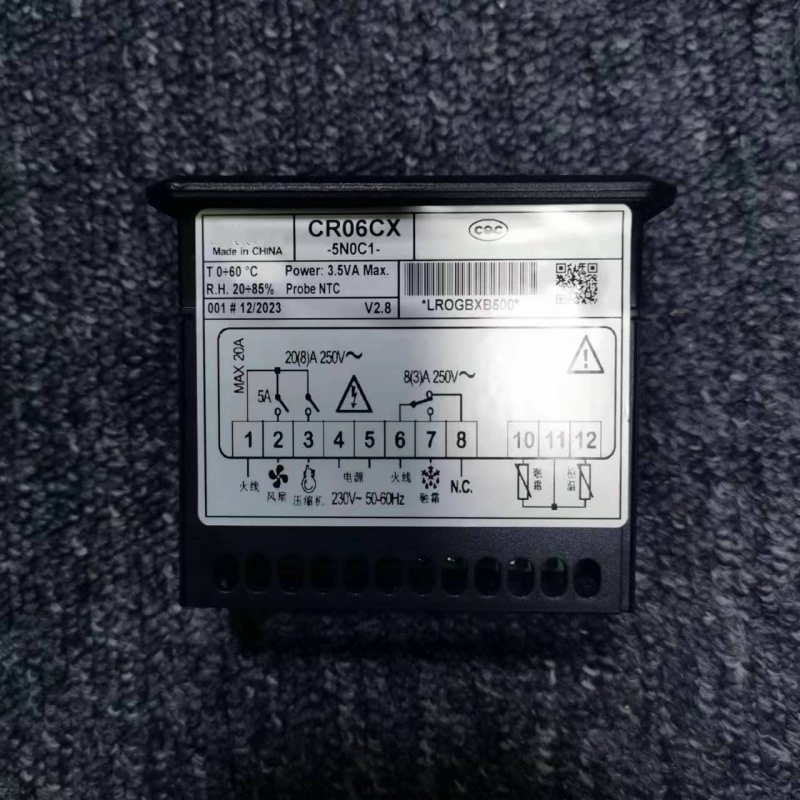

- 12-terminal standard wiring terminal block, easy circuit wiring
- Rated 230V 50/60Hz power supply, max 3.5VA power consumption
- Wide working environment range: 0~60℃, RH 20%-85%
- Automatic cooling & timing defrost cycle function
- Compact embedded panel mounting design, easy installation
- Overload protection circuit built-in for safe equipment operation
- Stable V2.8 control program, long service life & low failure rate
CR06CX-5N0C1 technical specifications table
| Parameter Item | Specification |
|---|---|
| Model | CR06CX-5N0C1 |
| Compatibility | NTC temperature probes, refrigeration compressors, cooling fans, defrost heaters |
| Working Voltage | 230 VAC 50/60Hz |
| Operating Temperature | 0 °C ~ +60 °C |
| Relative Humidity Range | 20% ~ 85% RH (non-condensing) |
| Mounting | Panel embedded mounting |
| Max Power Consumption | 3.5 VA |
| Terminal Quantity | 12 wiring terminals |
| Product Weight | Approx. 0.15 kg |
| Country of Origin | China |
| Software Version | V2.8 |
| Max Switching Current | Compressor 20A, Fan 5A, Defrost 8A |
Same Series Display Models
XR01CX-5N0C1
XR02CX-5N0C1
XR03CX-5N0C1
XR04CX-5N0C1
XR06CX-5N0C1
CR02CX-5N0C1
CR03CX-5N0C1
CR04CX-5N0C
Matching Series Controllers
XR06CX-5R0C1
XR06CX-4N1F1
XR06CX-5N0C0
Supporting System Accessories
NE9
ASC56152
Application Scope
Model CR06CX-5N0C1 is widely applied in various commercial refrigeration and cold storage equipment: display refrigerated cabinets, vertical freezers, commercial refrigerators, small cold storage rooms, beverage cooling cabinets, cake preservation cabinets, fresh meat display freezers, constant temperature refrigeration equipment for catering and supermarkets.
Packaging & Shipping
- Neutral safe packaging, shockproof and drop-proof protection
- Global shipping via DHL, UPS, FedEx and sea freight options
- In stock support for fast delivery
- Wholesale, retail and mixed order are acceptable
Our Service
We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.
For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
