ATX-71140DHS External Balance Cooling Valve

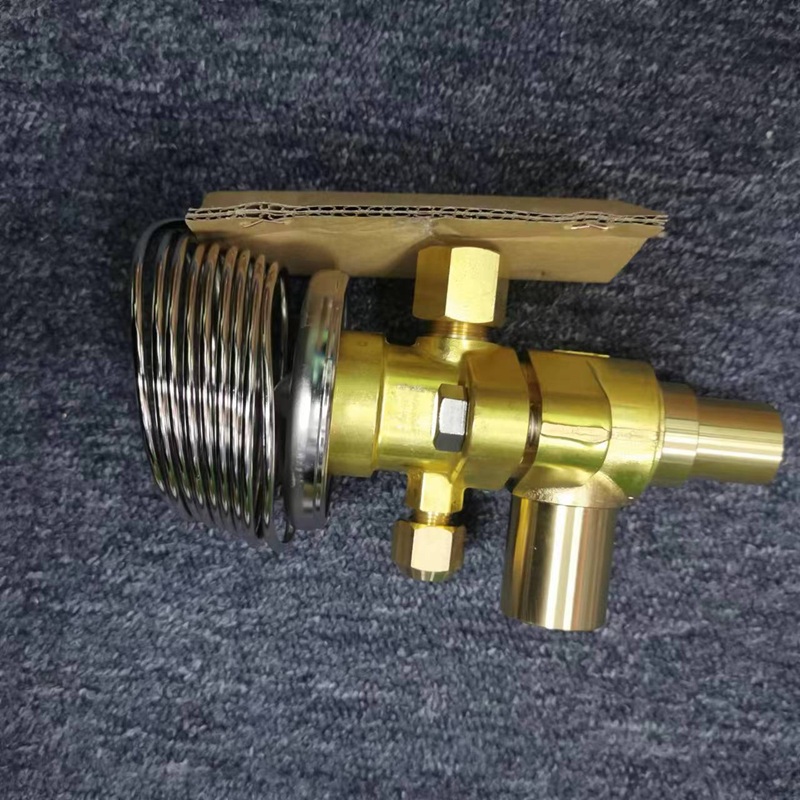

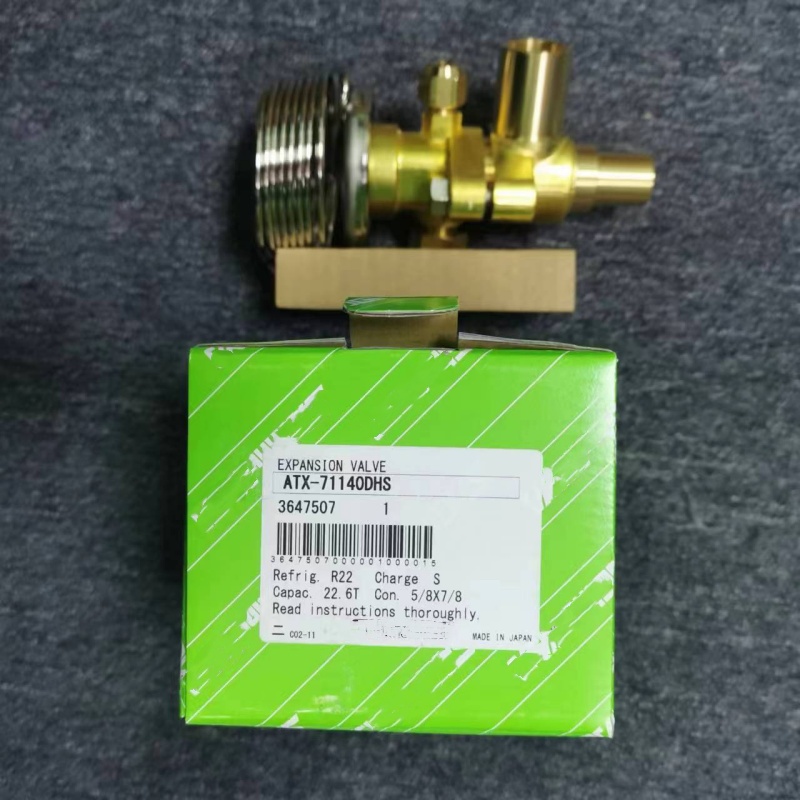

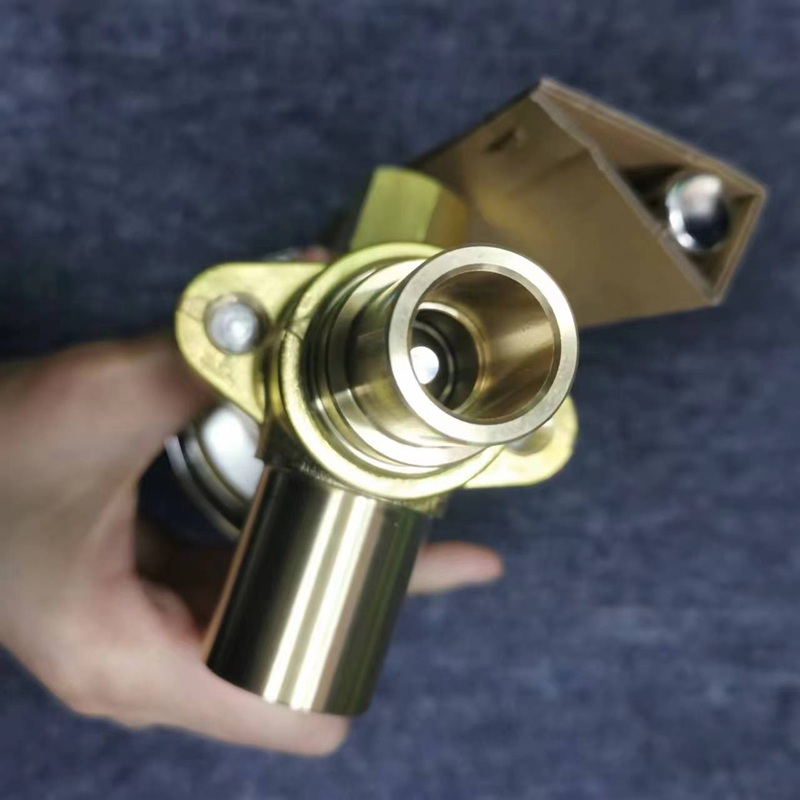

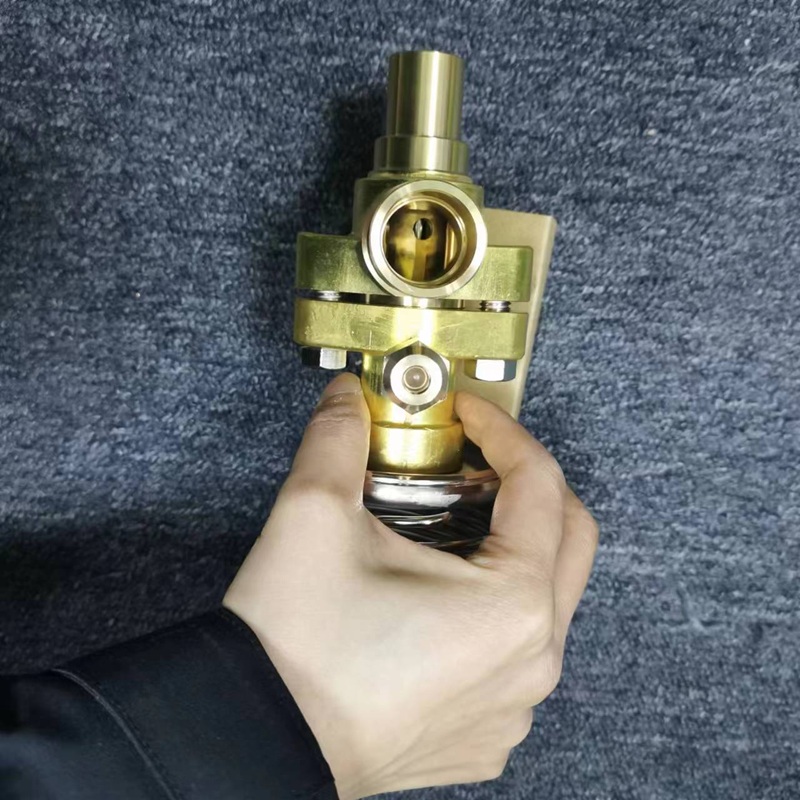

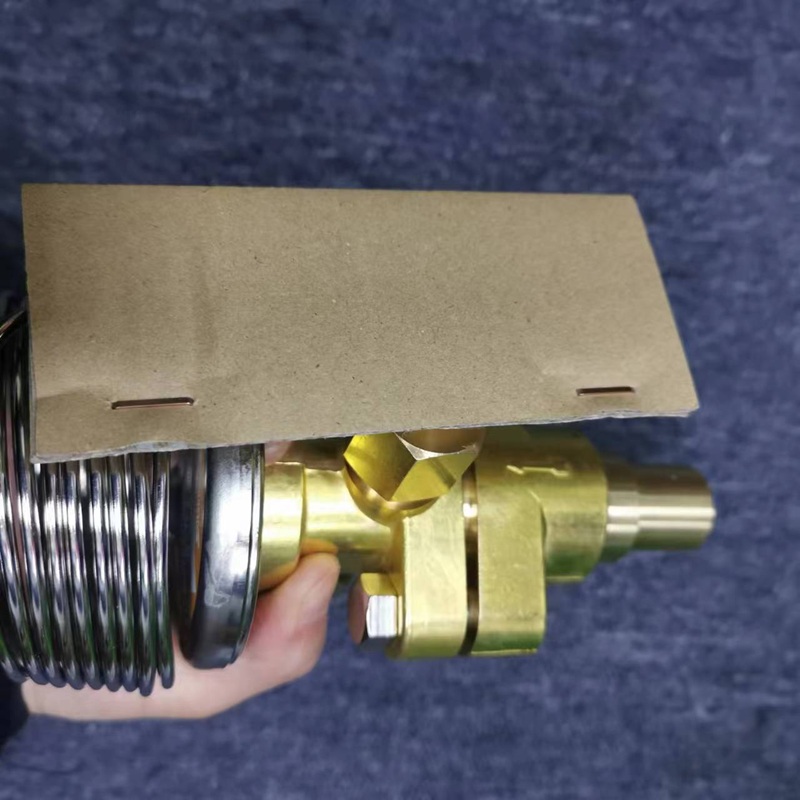

        This ATX-71140DHS thermostatic expansion valve is an essential throttling component widely used in HVAC and commercial refrigeration systems. It adopts external balance structure with S-type power head charge, matched for R22 refrigerant, rated capacity 22.6 tons, with 5/8×7/8 pipeline connection size. The precisely calibrated temperature sensing bulb and long capillary tube can stably sense evaporator outlet temperature, automatically adjust refrigerant flow to maintain ideal superheat, avoid liquid refrigerant backflow to compressors. Made of high-purity brass valve body and corrosion-resistant metal sensing assembly, it features stable pressure resistance, reliable flow regulation and long service life, perfectly meeting the precise cooling control demands of medium and large air conditioners, heat pumps and industrial cooling equipment.

• External balance design, stable control under high evaporator pressure drop
• S-type power head charge, sensitive and accurate temperature response
• Compatible with R22 refrigerant, rated capacity up to 22.6 tons
• High-purity brass valve body, anti-rust and high pressure resistance
• Standard 5/8×7/8 pipeline interface, easy installation and replacement

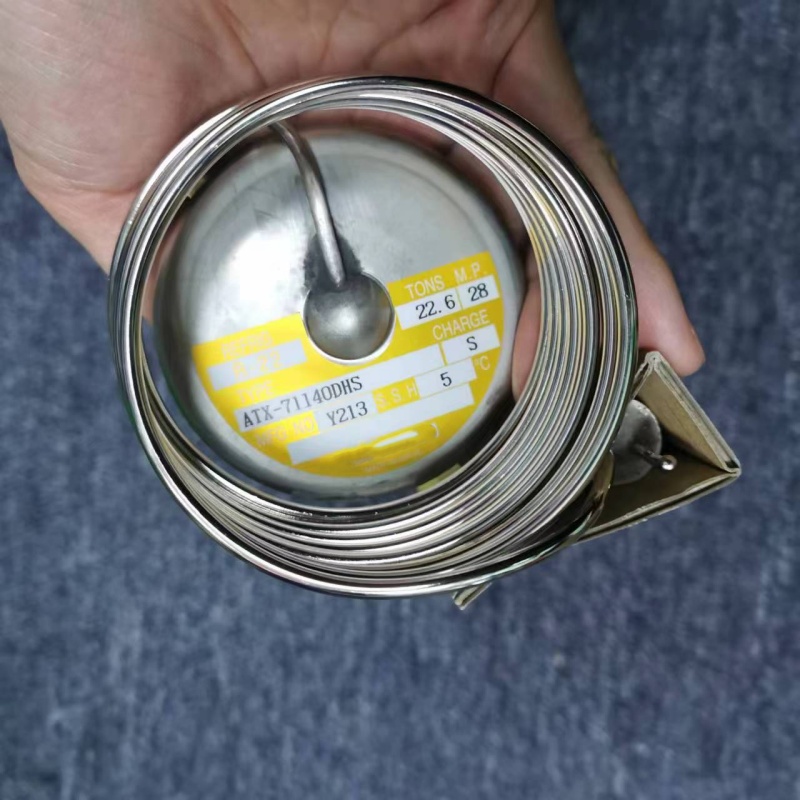

• Long capillary sensing tube, flexible layout for different equipment structures
• Effectively control superheat, prevent liquid slugging to extend compressor service life

Parameter	Specification
Model	ATX-71140DHS
Compatibility	R22 refrigerant, HVAC & commercial refrigeration units
Rated Capacity	22.6 Ton
Connection Size	5/8 × 7/8
Charge Type	S power head charge
Operating Temperature	-40 ℃ ~ +80 ℃
Mounting	Bracket fixed installation
Product Length	260 mm
Product Width	110 mm
Product Height	95 mm
Product Weight	Approx. 0.72 kg
Country of Origin	Japan
HS code	84186990
Shipping Length	300 mm
Shipping Width	130 mm
Shipping Height	120 mm

ATX-71140DMS





ATX-71140DPS





ATX-71140DUS





ATX-71140DVSL



ATX-71140DHSCLG





ATX-71160DHSCLG





ATX-34006BVCL





ATX-34013BVCL



ATX-34035BVCL





ATX-34045BVCL





ATX-57080DVCL





ATX-12220DHS





ATX-12270DHS





ATX-12330DHS





ATX-12420DHS

QCX-0334BHSA





QCX-0534BHSA

        Model ATX-71140DHS thermostatic expansion valve is widely applied in commercial central air conditioning units, air-source and water-source heat pump cooling systems, medium and large refrigeration condensing units, HVAC industrial cooling equipment, cold storage and constant-temperature refrigeration machinery.

     We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.

For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
