ATX-34045DHS S Charge TXV R22 7Ton Air Conditioner Throttle Valve

         ATX-34045DHS thermostatic expansion valve is a core throttling component designed for R22 refrigerant, with 7.0 tons rated cooling capacity and S-charge power head, widely applied to HVAC and commercial refrigeration circulation systems. Constructed with integrated brass valve body and long stainless steel coiled capillary tube, it automatically adjusts refrigerant supply volume by sensing evaporator outlet temperature to stabilize superheat value, boost heat exchange efficiency and prevent liquid slugging damage to compressors. Equipped with standard welded pipeline connectors, this valve features stable pressure resistance and flexible adaptability to variable load operating conditions, delivering consistent and precise flow regulation during long-time continuous running of HVAC cooling equipment, cold storage and air conditioning units.

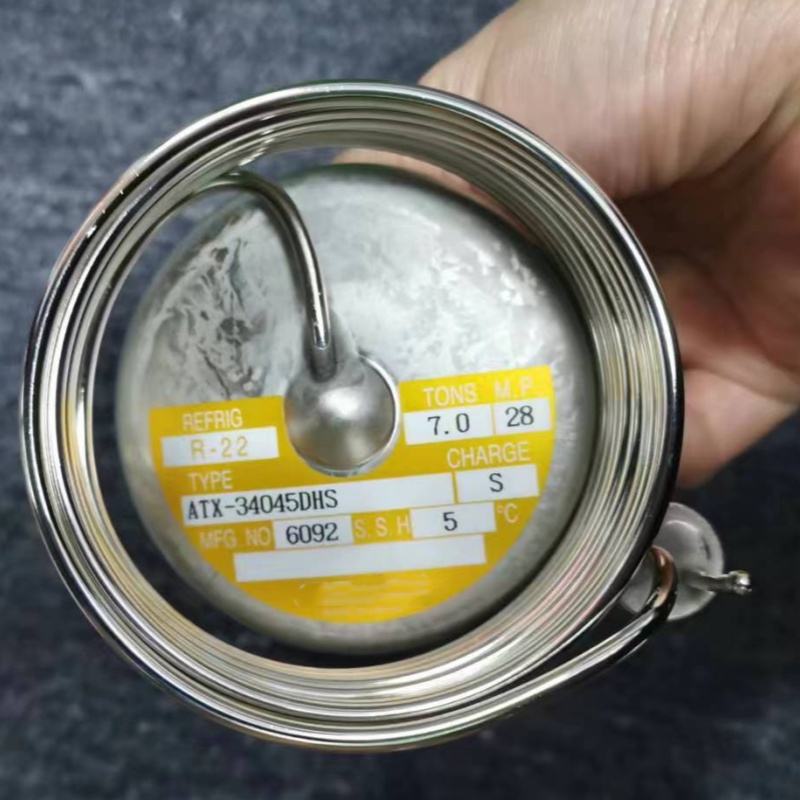

• S-type charging power head, stable flow control within wide evaporation temperature range

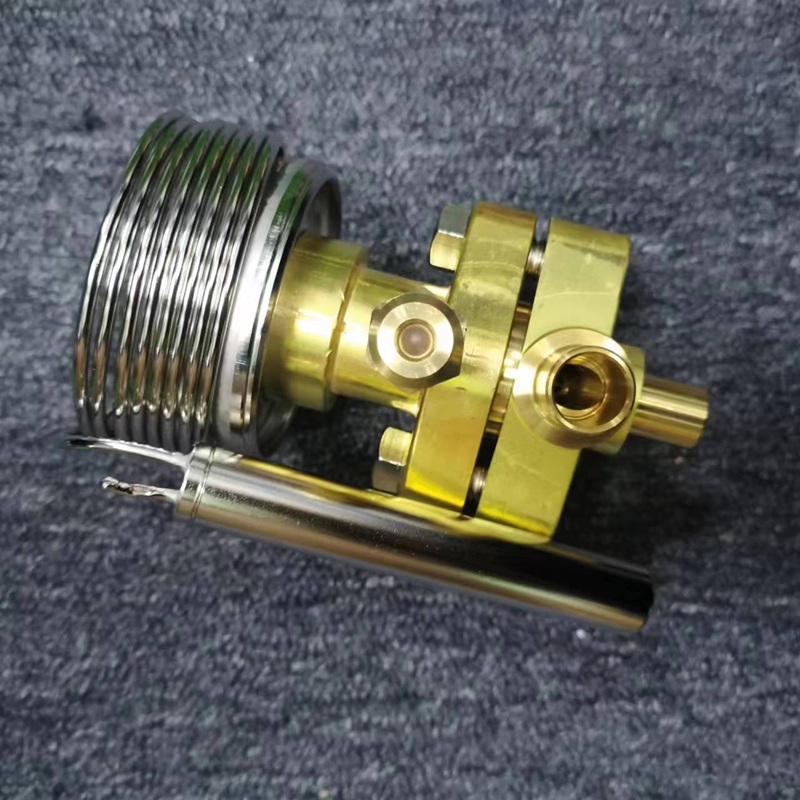

• Integrated brass valve body, corrosion resistant and high pressure resistant for long service life

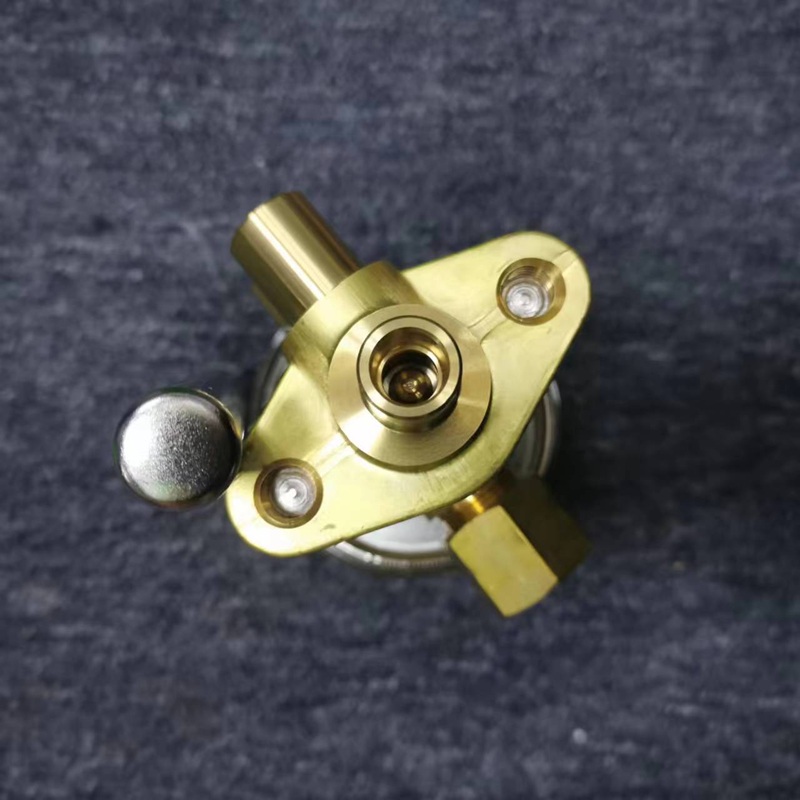

• Standard welded pipeline interface, tight assembly and low refrigerant leakage risk
• 7.0Ton rated cooling capacity, ideal for small & medium HVAC refrigeration units
• Automatic superheat adjustment structure, effectively protect compressor from liquid slugging

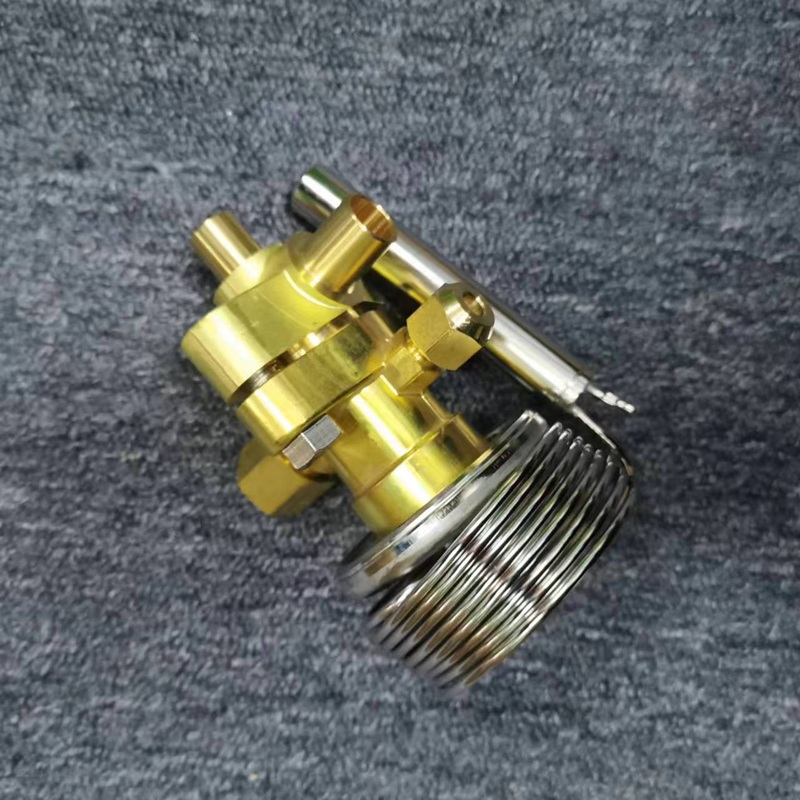

• Complete stainless steel coiled capillary sensing tube, sensitive temperature detection and easy installation
• Exclusive compatibility with R22 refrigerant, fit most conventional commercial cooling systems

Item	Parameter
Model	ATX-34045DHS
Compatibility	R22 HVAC & refrigeration 7Ton cooling units
Refrigerant	R22 (Replace Working Voltage, mechanical valve no voltage)
Operating Temperature	-40 °C ~ +80 °C (Valve Body) / -40 °C ~ +120 °C (Sensing Bulb)
Mounting	Solder pipeline connection, external equalizer type
Product Length	Approx. 190 mm
Product Width	Approx. 52 mm
Product Height	Approx. 78 mm
Product Weight	Approx. 1.1 kg
Country of Origin	Japan / China (subject to production batch)
HS code	8481803990
Shipping Length	240 mm
Shipping Width	110 mm
Shipping Height	95 mm

ATX-34023DHS





ATX-34035DHS





ATX-34045DHS





ATX-57060DHS





ATX-57080DHS





ATX-71110DHS





ATX-71140DHS





ATX-71160DHS

DNS-D606M





SNS-C106





ONS-C106





SEV-603BXF

---

Application Scope



  Model ATX-34045DHS thermal expansion valve compatible with R22 refrigerant is suitable for multiple HVAC and refrigeration devices including air-cooled chillers, split central air conditioners, medium-low temperature cold storage, refrigerated display cabinets and small heat pump cooling systems, perfectly matching 7-ton small and medium cooling units with hot gas defrost function.

     We provide full series of refrigeration and HVAC spare parts, including control display panels, temperature controllers, sensors, power modules and industrial electrical accessories.

For technical parameters, dimension drawing, cross reference model or bulk discount, please feel free to contact us. Cick Contact us.To consult HVAC standard pls click HVAC standard.
